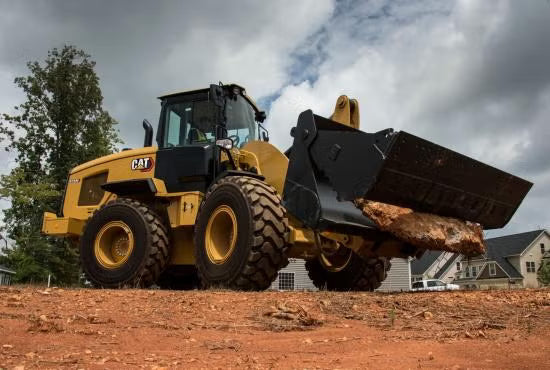

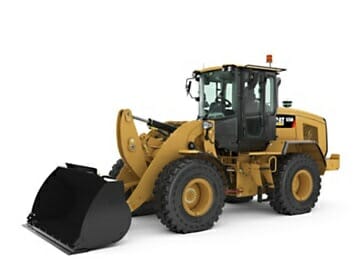

The Cat® 926M Small Wheel Loader is engineered to deliver industry-leading productivity, fuel efficiency, and operator comfort. Powered by a high-torque, low-speed C7.1 engine and intelligent hystat transmission, this loader offers exceptional performance while meeting Tier 4 Final/Stage V emission standards. With an optimized Z-bar linkage, advanced hydraulic system, and customizable operator settings, the 926M ensures faster cycle times, precise control, and long-lasting reliability. Whether you’re handling heavy-duty material, construction work, or snow removal, the 926M is built to keep your business moving efficiently.

Specifications

Category	Item	Specification
ENGINE	Rated Net Power	148.00 HP
	Engine Model	Cat® C7.1 ACERT™
	Maximum Rated Gross Power - ISO 14396	153.00 HP
	Maximum Rated Gross Power - ISO 14396 (DIN)	155.00 HP
	Maximum Rated Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4)	1800.00 r/min
	Maximum Rated Gross Power - ISO 14396 (Performance Power Mode: Range 1-4)	153.00 HP
	Maximum Rated Gross Power - ISO 14396 (DIN) (Performance Power Mode: Range 1-4)	155.00 HP
	Rated Net Power - 1,800 rpm - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4)	163.00 hp
	Rated Net Power - 1,800 rpm - ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Performance Power Mode: Range 1-4)	149.00 HP
	Rated Net Power at 1,800 rpm – ISO 9249 (DIN) at Minimum Fan Speed (Performance Power Mode: Range 1-4)	151.00 hp
	Maximum Gross Torque – ISO 14396 (Performance Power Mode: Range 1-4)	531.00 lbf·ft
	Maximum Net Torque – SAE J1349 (Performance Power Mode: Range 1-4)	511.00 lbf·ft
	Maximum Net Torque – ISO 9249 (1977)/EEC 80/1269 (Performance Power Mode: Range 1-4)	517.00 lbf·ft
	Maximum Rated Gross Power – Maximum Engine Speed (Standard Power Mode: Range 1-3*)	1600.00 rpm
	Maximum Rated Gross Power – ISO 14396 (Standard Power Mode: Range 1-3*)	146.00 hp
	Maximum Rated Gross Power – ISO 14396 (DIN) (Standard Power Mode: Range 1-3*)	148.00 hp
	Rated Net Power at 1,600 rpm – SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)	141.00 hp
	Rated Net Power at 1,600 rpm – ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)	142.00 hp
	Rated Net Power at 1,600 rpm – ISO 9249 (DIN) at Minimum Fan Speed (Standard Power Mode: Range 1-3*)	144.00 hp
	Maximum Gross Torque – ISO 14396 (Standard Power Mode: Range 1-3*)	531.00 lbf·ft
	Maximum Net Torque – SAE J1349 (Standard Power Mode: Range 1-3*)	511.00 lbf·ft
	Maximum Net Torque – ISO 9249 (1977)/EEC 80/1269 (Standard Power Mode: Range 1-3*)	517.00 lbf·ft
	Displacement (Performance Power Mode: Speed Range 1-4)	427.00 in³
	Bore	4.00 in
WEIGHTS	Operating Weight	28770.00 lb
BUCKETS	Bucket Capacities	1.9 - 5.0 m³ (2.5 - 6.5 yd³)
STEERING	Steering Cylinder: Double Acting – Bore Diameter	2.80 in
	Steering Cylinder: Double Acting – Rod Diameter	1.60 in
	Steering Cycle Times - Full Left to Full Right - At 1,800 rpm: 90 rpm Steering Wheel Speed	2.40 s
	Maximum Flow – Steering Pump	34.00 gal/min
	Maximum Working Pressure – Steering Pump	3500.00 psi
	Maximum Steering Torque – 0° (Straight Machine)	37155.00 lbf·ft
	Maximum Steering Torque – 40° (Full Turn)	27747.00 lbf·ft
LOADER HYDRAULIC SYSTEM	Maximum Flow – Implement Pump	40.00 gal/min
	Maximum Flow – Implement Pump: 3rd Function Maximum Flow*	40.00 gal/min
	Maximum Flow – Implement Pump: 4th Function Maximum Flow*	40.00 gal/min
	Maximum Working Pressure – Implement Pump	3771.00 psi
	Relief Pressure – Tilt Cylinder	4061.00 psi
	Relief Pressure – Tilt Cylinder: 3rd and 4th Function Maximum Working Pressure	3771.00 psi
	Relief Pressure – Tilt Cylinder: 3rd and 4th Function Relief Pressure	4061.00 psi
	Lift Cylinder: Double Acting – Bore Diameter	4.30 in
	Lift Cylinder: Double Acting – Rod Diameter	2.40 in
	Lift Cylinder: Double Acting – Stroke	28.70 in
	Tilt Cylinder: Double Acting – Bore Diameter	5.10 in
	Tilt Cylinder: Double Acting – Rod Diameter	2.80 in
	Tilt Cylinder: Double Acting – Stroke	21.90 in
	Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Raise, Ground Level to Maximum Lift	6.20 s  5.5/6.2 seconds
	Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Dump, at Maximum Lift Height	1.70 s 1.5/1.7 seconds
SERVICE REFILL CAPACITIES	Fuel Tank	51.50 gal
	Cooling System	7.90 gal
	Engine Crankcase	5.30 gal
	Transmission (Gear Box)	2.20 gal
	Front Axles	5.50 gal
	Rear Axles	5.50 gal
	Hydraulic System (Including Tank)	42.30 gal
	Hydraulic Tank	23.80 gal
	Diesel Exhaust Fluid (DEF) Tank	5.00 gal
TRANSMISSION	Forward and Reverse: Range 1*	1 - 13 km/h (0.6 - 8 mph)
	Forward and Reverse: Range 2	8.00 mph
	Forward and Reverse: Range 3	17.00 mph
	Forward and Reverse: Range 4	25.00 mph
CAB	ROPS	ISO 3471: 2008
	FOPS	ISO 3449: 2005 LEVEL II
OPERATING SPECIFICATIONS	Full Turn Tip Load	16587.00 lb
ENGINE	Emissions	Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.
	Stroke	5.00 in
	Note	* Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
LOADER HYDRAULIC SYSTEM	Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Float Down, Maximum Lift to Ground Level	2.60 s  2.6/2.6 seconds
	Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Total Cycle Time	10.50 s  9.6/10.5 seconds
	Note	* 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.
STEERING	Steering Cycle Times (Full Left to Full Right) – Minimum RPM: Pump Flow Limited	2.80 seconds
	Steering Cycle Times (Full Left to Full Right) – Maximum RPM: 90 rpm Steering Wheel Speed	2.40 seconds
TRANSMISSION	Note	* Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).
POWER TRAIN	Front Axle	Fixed
	Front Axle: Traction Aid (standard)	Locking differential
	Rear Axle	Oscillating
	Rear Axle - Oscillation Angle by Tire Size - 17.5 R25	± 13.5 degrees
	Rear Axle: Oscillation Angle by Tire Size – 20.5 R25, 550/65, 600/65, 650/65	± 10.5 degrees
	Rear Axle: Oscillation Angle by Tire Size – Solid Tires, 750/65, 620/65, Skidder	± 7 degrees
	Rear Axle: Traction Aid (optional)	Limited slip differential
	Brakes: Service	Inboard wet disc
	Brakes: Park	Spring applied hydraulically released
ENGINE	Maximum Gross Power	153.00 hp
	Note	Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
	Note	No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
	Note	Spark arrestor performance as standard – Meets performance requirements of EN 1834 - 1.2000 (section 6.4.2 Visual Test).
CAB	Note	Declared sound levels per ISO 6396:2008* while in Performance Power Mode: – Standard cab: 68 ± 3 dB(A) and Deluxe cab
	Note	* Measurements were conducted with cab doors and windows closed and at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds.
LOADER HYDRAULIC SYSTEM	Note	Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.
	Note	Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
STEERING	Note	Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.
	Note	Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
POWER TRAIN	Note	Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.
	Note	Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 926M.
AIR CONDITIONING SYSTEM	Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential – 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.
ENGINE	Engine Model	Cat C7.1**
BUCKETS	Bucket Capacities	1.9 - 5.0 m³ (2.5 - 6.5 yd³)
WEIGHTS	Operating Weight	28193.00 lb
ENGINE	Maximum Gross Power	168.00 hp
	Bore	4.00 in
	Stroke	5.00 in
	Displacement	427.00 in³
CAB	ROPS	ISO 3471:2008
	FOPS	ISO 3449:2005 Level II
AIR CONDITIONING SYSTEM	Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.
CAB	Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
	Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, are:  – Standard cab: 68 ± 3 dB(A) – Deluxe cab: 66 ± 2 dB(A)
ENGINE	Emissions	Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.
	Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4)	601.00 ft·lbf
	Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3*)	586.00 ft·lbf
	Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Performance Power Mode: Range 1-4)	517.00 lb/ft
	Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Standard Power Mode: Range 1-3*)	517.00 lb/ft
	Maximum Net Torque - SAE J1349 (Performance Power Mode: Range 1-4)	588.00 ft·lbf
	Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3*)	573.00 ft·lbf
	Maximum Rated Gross Power - ISO 14396 (DIN) (Standard Power Mode: Range 1-3*)	148.00 HP
	Maximum Rated Gross Power - ISO 14396 (Standard Power Mode: Range 1-3*)	146.00 HP
	Maximum Rated Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3*)	1600.00 r/min
	Note (1)	Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
	Note (2)	No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
	Note (3)	*Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
	Note (4)	**The Cat C7.1 engine meets Tier 4 Final/Stage V off-highway emission standards.
	Rated Net Power - 1,600 rpm - ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)	142.00 HP
	Rated Net Power - 1,600 rpm - ISO 9249 (DIN) at Minimum Fan Speed (Standard Power Mode: Range 1-3*)	158.00 mhp
	Rated Net Power - 1,600 rpm - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)	156.00 hp
	Rated Net Power - 1,800 rpm - ISO 9249 (DIN) at Minimum Fan Speed (Performance Power Mode: Range 1-4)	166.00 mhp
LOADER HYDRAULIC SYSTEM	Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Dump (at Maximum Lift Height)	1.5/1.7 seconds
	Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Float Down (Maximum Lift to Ground Level)	2.6/2.6 seconds
	Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Raise (Ground Level to Maximum Lift)	5.5/6.2 seconds
	Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Total Cycle Time	9.6/10.5 seconds
	Lift Cylinder, Double Acting - Bore Diameter	4.30 in
	Lift Cylinder, Double Acting - Rod Diameter	2.40 in
	Lift Cylinder, Double Acting - Stroke	28.70 in
	Maximum Flow - Implement Pump	40.00 gpm
	Maximum Flow - Implement Pump - 3rd Function*	40.00 gal/min
	Maximum Flow - Implement Pump - 4th Function Maximum Flow*	40.00 gpm
	Maximum Working Pressure - Implement Pump	3771.00 psi
	Note (1)	*3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display, when equipped.
	Note (2)	Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.
	Note (3)	Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
	Relief Pressure - Tilt Cylinder	4061.00 psi
	Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure	3771.00 psi
	Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure	4061.00 psi
	Tilt Cylinder, Double Acting - Bore Diameter	5.10 in
	Tilt Cylinder, Double Acting - Rod Diameter	2.80 in
	Tilt Cylinder, Double Acting - Stroke	21.90 in
OPERATING SPECIFICATIONS	Full Turn Tip Load	16587.00 lb
POWER TRAIN	Brakes - Parking	Spring applied hydraulically released
	Brakes - Service	Inboard wet disc
	Front Axle	Fixed
	Front Axle - Traction Aid - Standard	Locking differential
	Note (1)	Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.
	Note (2)	Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 926M.
	Rear Axle	Oscillating
	Rear Axle - Oscillation Angle by Tire Size - 20.5 R25, 550/65, 600/65, 650/65	± 10.5 degrees
	Rear Axle - Oscillation Angle by Tire Size - Solid Tires, 750/65, 620/65, Skidder	± 7 degrees
	Rear Axle - Traction Aid - Optional	Limited slip differential
SERVICE REFILL CAPACITIES	Cooling System	7.90 gal (US)
	Diesel Exhaust Fluid (DEF) Tank	5.00 gal (US)
	Engine Crankcase	5.30 gal (US)
	Front Axles	6.90 gal (US)
	Fuel Tank	51.50 gal (US)
	Hydraulic System - Including Tank	42.30 gal (US)
	Hydraulic Tank	23.80 gal (US)
	Rear Axles	6.60 gal (US)
	Transmission - Gear Box	2.20 gal (US)
STEERING	Maximum Flow - Steering Pump	34.00 gpm
	Maximum Steering Torque - 0° (Straight Machine)	37155.00 ft·lbf
	Maximum Steering Torque - 40° (Full Turn)	27747.00 ft·lbf
	Maximum Working Pressure - Steering Pump	3500.00 psi
	Note (1)	Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.
	Note (2)	Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
	Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed	2.40 s
	Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited	2.80 s
	Steering Cylinder, Double Acting - Bore Diameter	2.80 in
	Steering Cylinder, Double Acting - Rod Diameter	1.60 in
	Steering Cylinder, Double Acting - Stroke	17.20 in
TRANSMISSION	Forward and Reverse - Range 1*	1-13 km/h (0.6-8 mph)
	Forward and Reverse - Range 2	8.00 mile/h
	Forward and Reverse - Range 3	17.00 mile/h
	Forward and Reverse - Range 4	25.00 mile/h
	Note	*Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display, when equipped. Factory default is 7 km/h (4.4 mph).
ENGINE	Maximum Gross Power - 1,600 rpm - ISO 14396 (DIN) (Standard Power Mode: Range 1-3*)	162.00 mhp
	Maximum Gross Power - 1,800 rpm - ISO 14396 (Performance Power Mode: Range 1-4)	168.00 hp
	Maximum Gross Power - 1,800 rpm - ISO 14396 (DIN) (Performance Power Mode: Range 1-4)	170.00 mhp
	Maximum Gross Power - 1,600 rpm - ISO 14396 (Standard Power Mode: Range 1-3*)	160.00 hp
	Displacement (Standard Power Mode: Speed Range 1-3*)	427.00 in³
	Rated Net Power - 1,800 rpm - ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4)	164.00 hp
	Maximum Net Torque - ISO 9249:2007 (Performance Power Mode: Range 1-4)	587.00 ft·lbf
	Maximum Net Torque - ISO 9249:2007 (Standard Power Mode: Range 1-3*)	572.00 ft·lbf
	Rated Net Power - 1,600 rpm - ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)	156.00 hp
BUCKETS	Bucket Capacities - General Purpose	1.9-2.5 m³ (2.5-3.2 yd³)
	Bucket Capacities - Light Material	3.1-5.0 m³ (4.0-6.5 yd³)
SOUND	Note (1)	European Union Directive "2000/14/EC."
LOADER HYDRAULIC SYSTEM	Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Total Cycle Time	9.50 s
	Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Float Down, Maximum Lift to Ground Level	2.60 s
AXLES	Front	Fixed; Locking differential (standard)
STEERING	Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left	3.50 turns
TIRES	Note (1)	Other tire choices are available. Contact your Cat dealer for details.
LOADER HYDRAULIC SYSTEM	Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Dump, at Maximum Lift Height	1.50 s
SERVICE REFILL CAPACITIES	Note	DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.
TIRES	Other Choices Include	20.5 R25, radial (L-2); 20.5 R25, radial (L-5); 20.5-25 12PR (L-2); 20.5-25 12PR (L-3); 20.5-25 16PR (L-5); 17.5 R25, radial (L-2); 17.5 R25, radial (L-3); 17.5 R25, radial (L-5); 550/65 R25 radial (L-3); Skidder/Agriculture
CAB	Note (3)	*The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
TIRES	Note (2)	In certain applications, the loader's productive capabilities may exceed the tire's tonnes-km/h (ton-mph) capabilities.
	Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
LOADER HYDRAULIC SYSTEM	Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Raise, Ground Level to Maximum Lift	5.50 s
STEERING	Steering Articulation Angle - Each Direction	40°
AXLES	Rear	Oscillating ±11 degrees; Open differential (standard); Limited slip differential (optional)
TIRES	Standard Size	20.5 R25, radial (L-3)
SOUND	Average Exterior Sound Pressure (ISO 6395:2008)	101.00 dB(A)
LOADER HYDRAULIC SYSTEM	Maximum Flow - Implement Pump - 3rd Function Maximum Flow*	40.00 gpm
SOUND	Operator Sound Pressure (ISO 6396:2008)	72.00 dB(A)
SUSTAINABILITY	Recyclability	94%

Product Features

• Efficient Power System – Cat C7.1 engine with Intelligent Power Management delivers hybrid-like fuel efficiency with more power on demand.
• Dual Power Modes – Choose Standard Mode for fuel savings or Performance Mode for up to 10% more power and faster cycle times.
• Optimized Z-Bar Linkage – Combines digging strength with tool carrier versatility for superior loading performance and visibility.
• Operator-Centered Design – Spacious cab with low-effort joystick controls and optional heated/cooled seating for all-day comfort.
• Smart Customization – Adjustable electro-hydraulic controls, Rimpull control, creeper mode, and operator code memory for tailored operation.
• Easy Maintenance & Service – Ground-level access, extended filter intervals, optional auto-lube, and Product Link™ for proactive monitoring.
• Built for Sustainability – Tier 4 Final/Stage V compliant engine, idle management system, and real-time payload monitoring reduce fuel use and emissions.
