HANGCHA

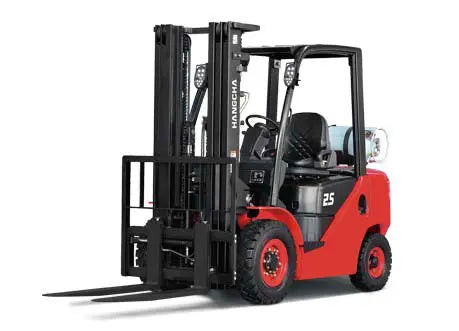

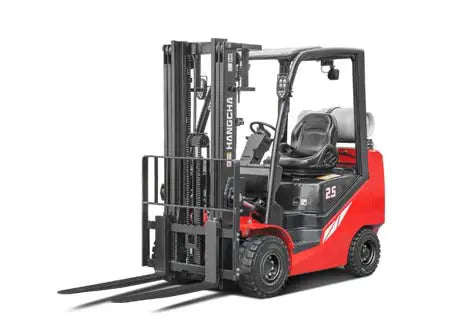

Hangcha FP25CP
Call for price Buy
Out of stock
$999,999.00 $999,999.00
Description

Description

Features:

The FP25CP from Hangcha’s XF Core Outdoor series is a reliable diesel-powered forklift engineered for demanding outdoor applications. Designed with operator comfort and efficiency in mind, it features an ergonomic layout with a relocated LCD display, automotive-style controls, and a small-diameter steering wheel for superior maneuverability.

Equipped with full hydraulic power steering and a high-capacity aluminum radiator, the FP25CP ensures stable performance even in tough environments. Safety is built-in with an operator presence sensing system and a secure locking device for the engine hood damper.

Ideal for tight spaces and uneven terrain, this forklift also supports a wide range of optional attachments, making it a versatile solution for various material-handling needs.

Specifications

Parameter Value
OPERATIONAL
Load Capacity 5,000 lb
Load Center 24 in
Operator Position Seated
Spreader Manufacturer / Type CPYD25 - XW71F - JC
PERFORMANCE DATA
Travel Speed (Forward / Reverse) | Full Load 10.9 mph
Travel Speed (Forward / Reverse) | No Load 11.5 mph
Lifting Speed | Full Load 122 ft/min
Lifting Speed | No Load 128 ft/min
Lowering Speed | Full Load 88.6 ft/min
Lowering Speed | No Load 98.4 ft/min
Gradeability - Full Load (3 - Minute Ratings) 30%
Gradeability - No Load (3 - Minute Ratings) 21%
TRUCK WEIGHTS
Total Weight (With Battery) 8,201 lb
Weight Distribution - Full Load (Front / Rear) 11,640 lb / 1,521 lb
Weight Distribution - No Load (Front / Rear) 3,219 lb / 4,982 lb
POWER SYSTEM
Power Type LP
Battery Voltage 12 V
Battery Capacity (6 - Hour Ratings) 60 Ah
Internal Combustion Engine - Make / Model GCT GK25 LPG CERT
Rated Horsepower @ Rpm (SAE) 61.4 hp
Rated Torque @ Rpm (SAE) 137.9 lb - ft
Number Of Cylinders 4
Piston Displacement 2,488 cu in
Fuel Tank Capacity 11 Gal
Transmission Type Powershift
Transmission Speeds (Forward / Reverse) 45,292
Manufacturer Hangcha
Auxiliary Hydraulic Function Specifications (For Attachments) Max. Operating Pressure：2,538 psi
MAST SPECIFICATION
Maximum Lift Height (1st Stage Mast) 98.4 in (Min) - 196.9 in (Max)
Maximum Lift Height (2nd Stage Mast) 78.7 in (Min) - 157.5 in (Max)
Maximum Lift Height (3rd Stage Mast) 157.5 in (Min) - 236.2 in (Max)
Lift Capacity (1st Stage Mast) 5,000 lb (Max) - 4,350 lb (Min)
Lift Capacity (2nd Stage Mast) 5,000 lb (Max) - 5,000 lb (Min)
Lift Capacity (3rd Stage Mast) 5,000 lb (Max) - 4,350 lb (Min)
EXTERIOR DIMENSIONS
Free - Lift (Top Of Forks) 5.5 in
Fork Size (T X W X L) 1.6 x 4.8 x 42 in
Tilt Range (Forward / Backward) 6 / 10 degrees
Overall Length 135.3 in
Overall Width 45.9 in
Length To Fork Face 93.2 in
Mast Lowered Height 77.6 in
Mast Extended Height (Top Of Load Backrest) 159.3 in
Overhead Guard Height 83.3 in
Turning Radius (Outside) 80.7 in
Load Distance (Center Of Wheel To Face Of Forks) 16.8 in
Basic Right - Angle Stack 142.4 in
Carriage Width 40.9 in
Wheelbase 58.3 in
Underclearance - Minimum (Mast) 3 in
Underclearance - Center Of Wheelbase 5.1 in
Tow Pin Height (Vertical Center Of Pin) 11.8 in
Fork Lift 118.1 in
Seat Height (From Floor To Seat - In - Place) 41.7 in
Tread Width (Front / Rear) 38.9 in / 36.6 in
Distance Between Support Arms 8.9 - 39.7 in
TIRES
Type (Front) Solid
Type (Rear) Solid
Type (Caster) Solid
Wheels (X = Driven) - Front/Rear 2×/2
Tire Size (Front) 21×8 - 9 in
Tire Size (Rear) 18×7 - 8 in
Brake (Service) Hydraulic
Brake (Parking) Mechanical


Product Features

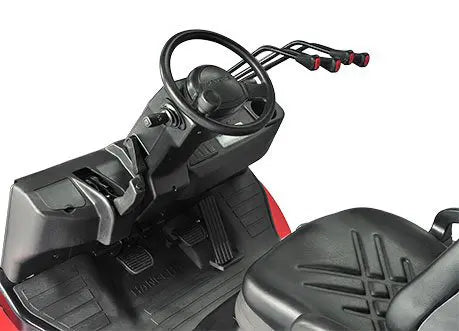

  • Ergonomic Design – Relocated LCD screen, automobile-style light/turn-signal lever, forward-reverse lever, and suspended pedals improve comfort and productivity.
  • Enhanced Maneuverability – Small diameter steering wheel with tilt adjustment and superior responsiveness optimizes handling even in narrow spaces.
  • Reduced Effort – Specially developed parking brake reduces operational force by 30%, while suspended pedals provide more ergonomic operation.
  • Easy Service Access – Engine panel cover with easy latch, two-piece floorboard, and hand-turn fasteners on the radiator cover allow quick inspections and servicing.
  • Reliable Performance – Full hydraulic power steering, big capacity aluminum radiator, whirlwind air cleaner, safety filter, and high-efficient intake/exhaust muffler ensure stable operation.
  • Operator Safety – Locking device for the engine hood damper, cable parking brake, and optional rear-pillar assist grip with horn enhance operational safety.
  • Automatic Protection – Operator presence sensing system with lifting/tilting and traveling lock functions, plus throttling device to prevent mast from being out of control even if pipes are broken.
