SANY

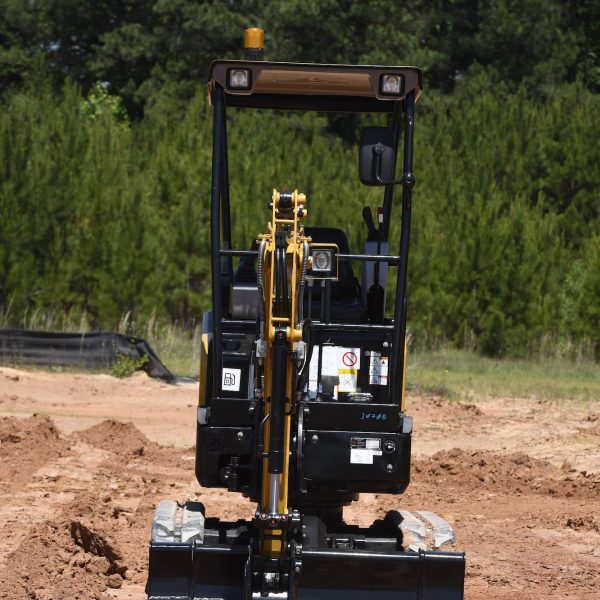

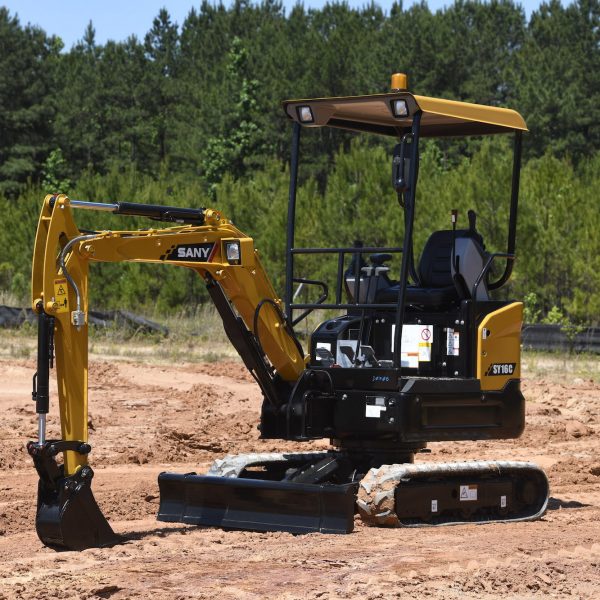

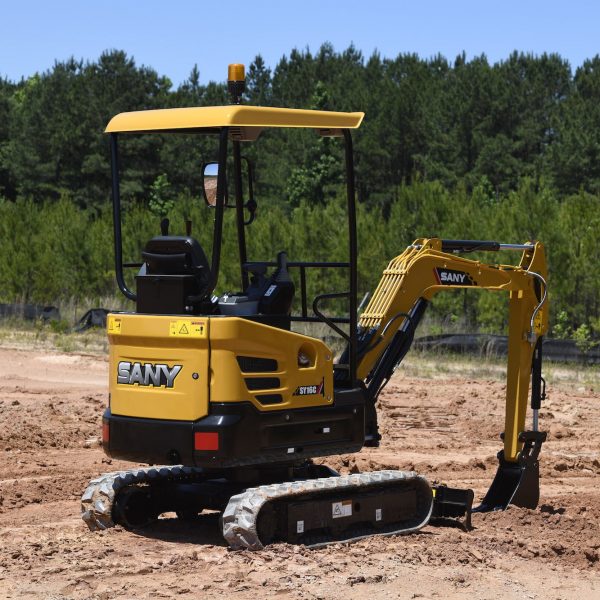

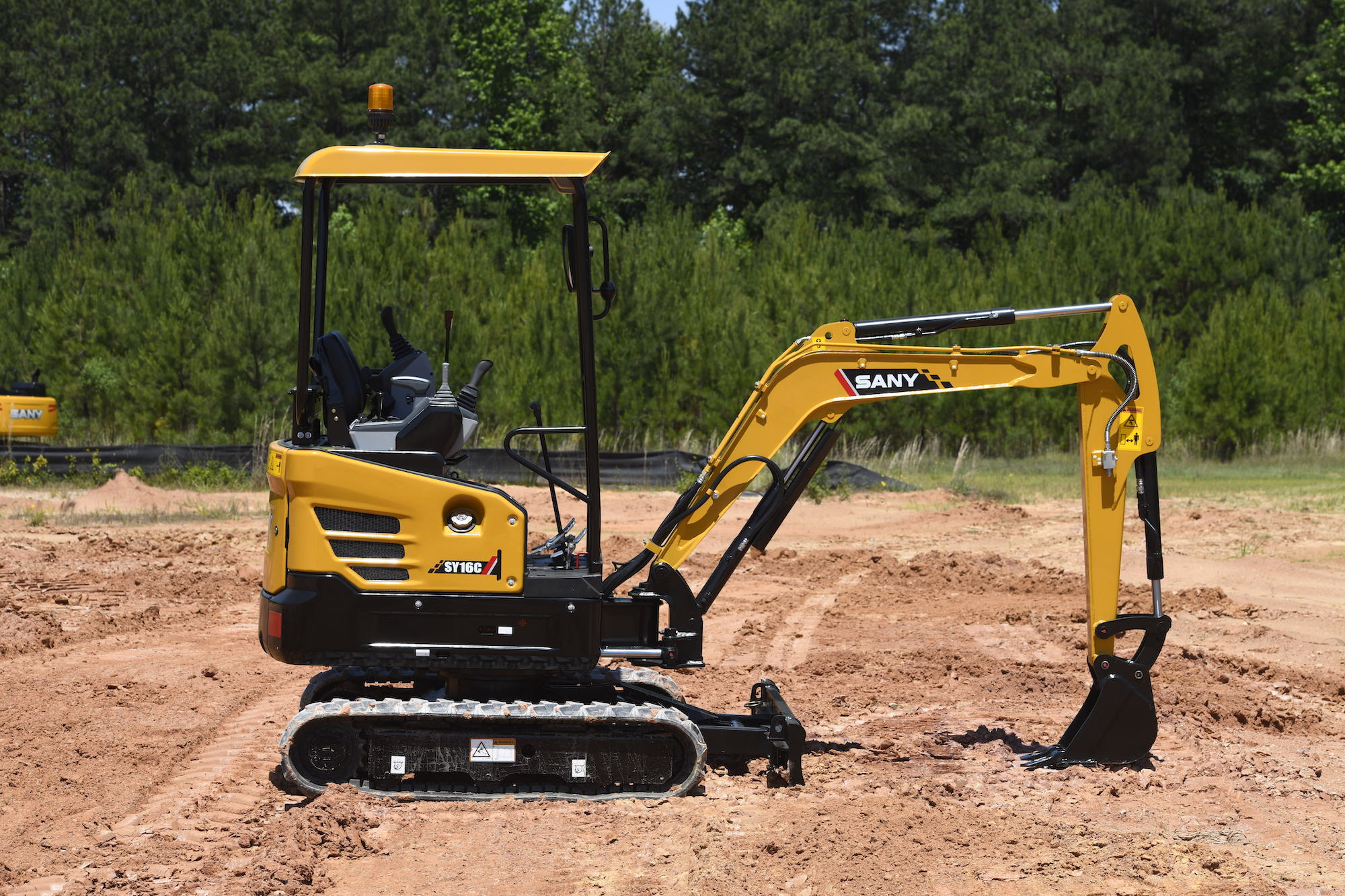

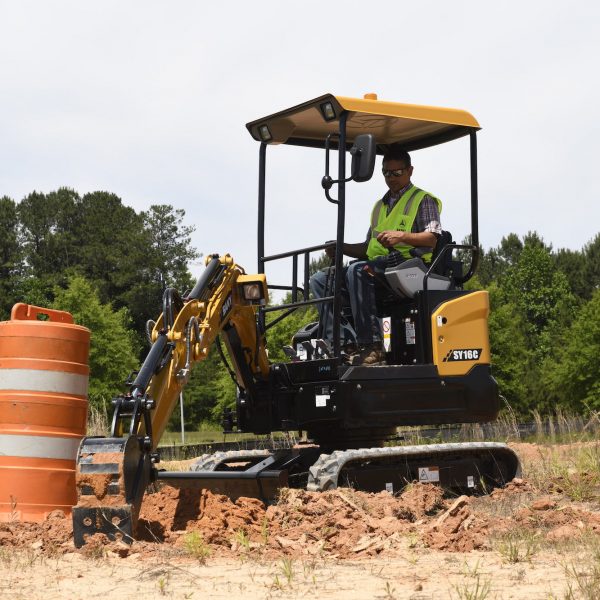

SY16C Mini Excavator – Compact Yanmar-Powered Digger
Call for price Buy
Out of stock
$40,000.00 $40,000.00 $45,000.00
Sale $5,000.00 (11.11%)
Description

Description

Features:

SY16C mini excavator with retractable undercarriage, swing boom, and Yanmar engine. Ideal for construction, landscaping, and utility work.

Specifications

Overall Dimensions
Boom Length

1,810 mm

5' 11"
Stick (Arm) Length

–

–
Transport Length

3,665 mm

12'
Transport Width

980/1,350 mm

3' 3" / 4' 5"
Transport Height

2,540 mm

8' 4"
Upper Structure Width

980 mm

3' 3"
Cab Height

–

–
Blade Height

270 mm

11"
Track Width (standard shoe)

230 mm

9"
Track Gauge

750/1,120 mm

2' 6" / 3' 8"
Ground Clearance (minimum)

180 mm

7"
Tail Swing Radius

920 mm

3' 0"
Track Length on Ground

1,225 mm

4' 0"
Track Length

1,585 mm

5' 2"



Technical Specifications
Operating Weight

1,860 kg

4,023 lb
Ground Pressure

29.1 kPa

4.2 psi
Engine Yanmar 3TNV80F
Displacement

1.27 L

77.5 in3
Net Power

13.6 kW

18.2 hp
Gross Power

14.6 kW

19.6 HP
Hydraulics Load Sensing with Pilot Control
Main Hydraulic Pump Axial Piston - Variable Displacement
Operating Flow (maximum)

72 L/min

19 gal/min
Operating Pressure (maximum)

24.5 MPa

3,553 psi
Auxiliary Flow*

40 L/min

11 gal/min
Auxiliary Pressure

25 MPa

3,626 psi
Travel Motor Axial Piston
Travel Pressure (maximum)

24.5 MPa

3,553 psi
Travel Speeds (maximum)

2.7 / 4 km/hr

1.7 / 2.5 mph
Travel Effort (maximum)

15.6 kN

3,507 lbf
Grade Capability 30º
Swing Motor Axial Piston
Swing Pressure (maximum)

16.2 MPa

2350 psi
Swing Speed (maximum) 10 rpm
Undercarriage (standard) Belted Rubber Track
Track Shoe Width (standard)

230 mm

9"
Track Rollers (per side) 3
Carrier Rollers (per side) –



Working Range
Boom Length

1,810 mm

5' 11"
Stick (Arm) Length

1,130 mm

3' 8"
Maximum Digging Height

3,665 mm

12'
Maximum Dumping Height

2,635 mm

8' 8"
Maximum Digging Depth

2,360 mm

7' 9"
Maximum Vertical Wall Digging Depth

2,215 mm

7' 3"
Maximum Reach at Ground Level

4,000 mm

13' 1"
Minimum Swing Radius

1,655 mm

5' 5"



Digging Performance
Boom Length

1,810 mm

5' 11"
Stick Length

–

–
Bucket Breakout Force (ISO)

16.6 kN

3,732 lbf
Stick Digging Force (ISO)

10 kN

2,428 lbf



Product Features

  • Compact Yet Powerful – The smallest in our fleet, perfect for working in confined spaces such as narrow doorways, fences, and tight passageways.
  • Retractable Undercarriage – Adjustable width allows easy access to restricted areas and improved stability when expanded.
  • Swing Boom & Reduced Tail Swing – Enhances maneuverability in close quarters without compromising digging performance.
  • Versatile Attachment Capability – Equipped with a primary auxiliary circuit to operate a wide range of powered tools and accessories.
  • Durable & Surface-Friendly Tracks – 9" rubber tracks protect delicate surfaces while ensuring excellent traction.
  • Reliable Performance with Strong Warranty – Powered by a robust Yanmar engine and backed by a 5-year/5,000-hour industry-leading warranty.
