Vendor: LIUGONG

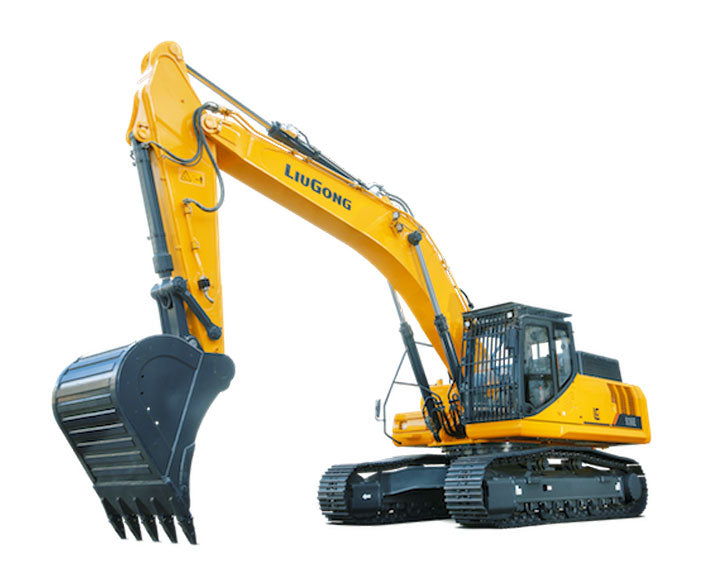

936E Excavator
Regular price
$99,999,999.00
Sale price
$99,999,999.00
Description
Description
Features:
HIGH STRESS MEETS HIGH-STRENGTH-The 936E features a tougher, reinforced heavy duty boom and arm built from high-strength tensile steel, with castings and forgings in high stress areas for heavy-duty performance and maximum uptime. We also use over-sized pins to allow the 936E, not just to work harder, but to work harder for longer. Our confidence in our machines is underlined by one of the most comprehensive warranties in the industry.Specifications
| Category | Parameter | Details |
| ENGINE | Emissions rating | EPA Tier 4 Final / Stage IV |
| Make | Cummins | |
| Model | QSL9 | |
| Gross power | 296 hp (221 kW) @ 2,000 rpm | |
| Net power | 280 hp (209 kW) @ 2,000 rpm | |
| Peak torque | 1,070 lb - ft @ 1,400 rpm；1,451 N-m @ 1,400 rpm | |
| Number of cylinders | 6 | |
| Displacement | 549 in³ (9.0 L) | |
| DRIVE AND BRAKES | Max. travel speed | High：3.4 mph (5.5 km/h) |
| Low：2.1 mph (3.4 km/h) | ||
| Max. drawbar pull | 71,938 lbf (320 kN) | |
| UNDERCARRIAGE | Shoe width, triple grouser | 31.5 in (800 mm) |
| Track shoe each side | 48 | |
| Bottom rollers each side | 9 | |
| Top rollers each side | 2 | |
| HYDRAULIC SYSTEM | Main pumps total flow | 2 × 79 gal/min (300 L/min) |
| Max. relief pressure, implement | 4,975 psi (34.3 MPa) | |
| Max. relief pressure, power boost | 5,410 psi (37.3 MPa) | |
| REFERENCE ARM | Arm length | 10 ft 6 in (3.2 m) |
| Arm digging force, ISO - Power boost | 41,589 lbf (185 kN) | |
| WORKING RANGES | Max. digging depth | 24 ft 1 in (7,340 mm) |
| Max. digging reach at ground level | 35 ft 9 in (10,900 mm) | |
| Max. digging depth 2.4 m (8 ft) level bottom | 23 ft 7 in (7,180 mm) | |
| Max. digging height | 33 ft 7 in (10,240 mm) | |
| Max. dumping height | 23 ft 6 in (7,160 mm) | |
| Max. vertical wall digging depth | 21 ft 2 in (6,460 mm) | |
| BUCKET PERFORMANCE | Bucket capacity | 2.09 yd³ (1.6 m³) |
| Bucket digging force, ISO - Power boost | 56,651 lbf (252 kN) | |
| SERVICE CAPACITIES | Fuel tank | 163.8 gal (620 L) |
| Engine oil | 7.9 gal (30 L) | |
| Final drive (each) | 2.5 gal (9.5 L) | |
| Swing drive | 2.8 gal (10.5 L) | |
| Cooling system | 9.8 gal (37 L) | |
| Hydraulic reservoir | 63.4 gal (240 L) | |
| DEF tank | 9.2 gal (35 L) | |
| SWING SYSTEM | Swing speed | 10.0 rpm |
| Swing torque | 81,69 lb - ft (111,000 N-m) |
Product Features
- Power Without Compromise-The 936E Excavator is powered by the Cummins QSL9 engine with a rated net power of 296 hp (221 kW) in compliance with EPA Tier 4 Final emissions standards. The compact QSL9 delivers unmatched and dependable power in its class yet produces virtually zero emissions. It tackles the toughest jobs without being thirsty for fuel.
-

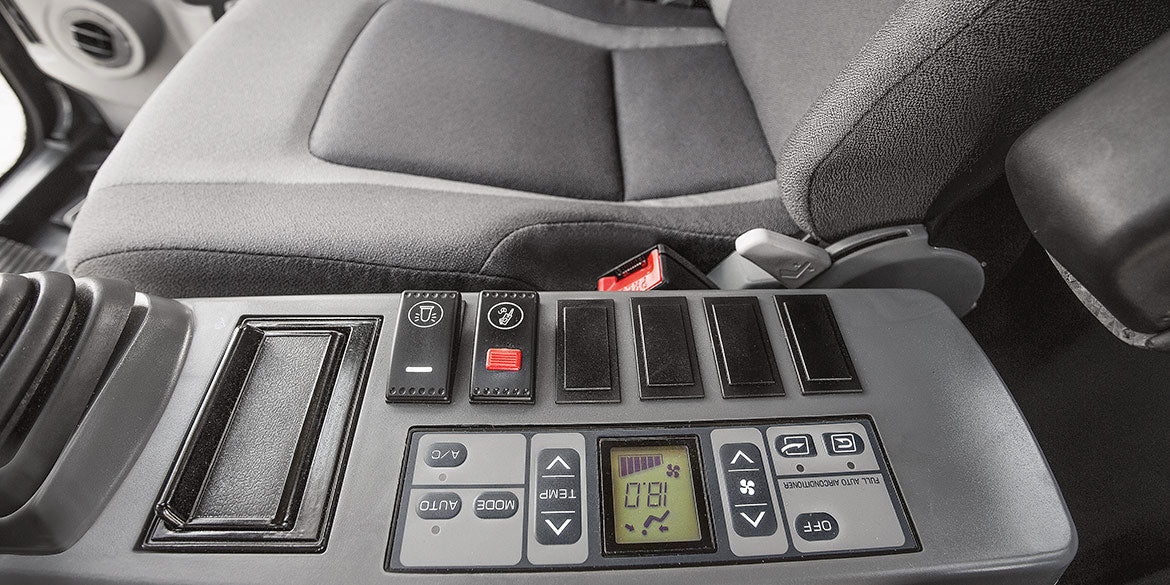

Make Tough Work Easy-Climb into the cab of the 936E and you can see that it was designed by someone who has operated a machine in really tough conditions. Inside, the cab is secure and protected with space to work and excellent 360 degree views of the site. The controls are where the operator needs them and easy to see, reach and handle. The cab is sound proofed, vibration protected and well ventilated.
-
Advanced Hydraulics-LiuGong's 936E advanced hydraulic system regenerates oil in the cylinders more efficiently reducing heat, increasing fuel efficiency and improving cycle times. The hydraulic system is highly effective in delivering power and precise control where the operator really needs it.
-
Tougher ComponentsThe 936E’s undercarriage is built tough. Heavy duty rollers, reinforced idler frame and optional full track guard guarantees the integrity of the machine. It's this core strength that enables our customers to keep working and earning - around the clock.
