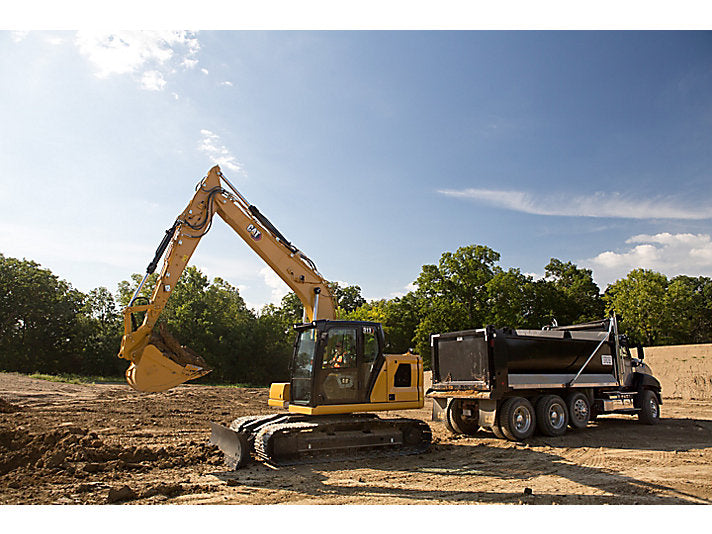

The Cat® 313 Small Excavator delivers high performance and efficiency in a compact footprint. Powered by a fuel-efficient C3.6 engine and equipped with advanced hydraulic systems, it offers precise control, faster cycle times, and excellent productivity. With Cat Grade technology, Payload weighing, and VisionLink® connectivity, the 313 helps operators maximize uptime and optimize jobsite efficiency. Built for comfort, safety, and reduced maintenance costs, it’s the ultimate choice for demanding construction, utility, and landscaping projects.

Specifications

Category	Item	Specification
Engine	Net Power - ISO 9249	108 hp
	Net Power - ISO 9249 (DIN)	110 hp (metric)
	Engine Model	Cat C3.6
	Engine Power - ISO 14396	110 hp
	Engine Power - ISO 14396 (DIN)	111 hp (metric)
	Bore	4 in
	Stroke	5 in
	Displacement	220 in³
	Biodiesel Capability	Up to B20¹
	Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 emission standards.
	Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,400 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
	Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations”(SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Weights	Operating Weight	30400 lb
Working Ranges And Forces	Maximum Digging Depth	19.2 ft
	Boom	Reach 4.65 m (15'3")
	Stick	Reach R3 m (9'10")
	Bucket	GD 0.53 m³ (0.69 yd³)
	Maximum Reach at Ground Level	28.4 ft
	Maximum Cutting Height	29 ft
	Maximum Loading Height	21.1 ft
	Minimum Loading Height	5.3 ft
	Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	19.3 ft
	Maximum Vertical Wall Digging Depth	17 ft
	Minimum Working Equipment Radius	8.4 ft
	Bucket Digging Force - ISO	22180 lbf
	Stick Digging Force - ISO	13330 lbf
Hydraulic System	Main System - Maximum Flow	247 L/min (65 gal/min)
	Maximum Pressure - Equipment	5075 psi
	Maximum Pressure - Travel	5075 psi
	Maximum Pressure - Swing	3770 psi
Swing Mechanism	Swing Speed	11.5 r/min
	Maximum Swing Torque	25741 lbf·ft
Service Refill Capacities	Fuel Tank Capacity	68.2 gal (US)
	Cooling System	4 gal (US)
	Engine Oil	2.1 gal (US)
	Final Drive - Each	0.8 gal (US)
	Hydraulic System - Including Tank	22.5 gal (US)
	Hydraulic Tank	18.5 gal (US)
	DEF Tank	5.6 gal (US)
Dimensions	Boom	Reach 4.65 m (15'3")
	Stick	Reach R3 m (9'10")
	Bucket	GD 0.53 m³ (0.69 yd³)
	Shipping Height - Top of Cab	9.3 ft
	Handrail Height	9.3 ft
	Shipping Length	25.5 ft
	Shipping Length - with Blade	26.4 ft
	Tail Swing Radius	7.2 ft
	Counterweight Clearance	3 ft
	Ground Clearance	1.5 ft
	Track Length	12.3 ft
	Length to Center of Rollers	10 ft
	Track Gauge	6.5 ft
	Transport Width	8.2 ft
Air Conditioning System	Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes.
Sustainability	Recyclability	95%

Product Features

• Powerful & Efficient Performance – 108 hp engine with advanced hydraulics delivers strong swing torque, faster digging cycles, and optimized fuel use.
• Cat® Grade Technology Ready – Standard Grade with 2D and 3D Ready options provide guidance, automation, and enhanced grading accuracy.
• On-the-Go Payload Weighing – Cat Payload system enables real-time load tracking, avoiding overloading or underloading and improving efficiency.
• Operator Comfort & Control – Spacious cab with touchscreen UI, customizable operator IDs, ergonomic controls, and multiple seat options.
• Low Maintenance Costs – Extended service intervals, ground-level access points, and intelligent monitoring reduce downtime and service expenses.
• Enhanced Jobsite Safety – Standard ROPS cab, 360° camera options, Cat Detect – People Detection, and Cat 2D E-Fence for safe operations.
• Built for All Conditions – Works in extreme temperatures (up to 52°C and -25°C), meeting global emission standards while reducing CO₂ output.
