Features:

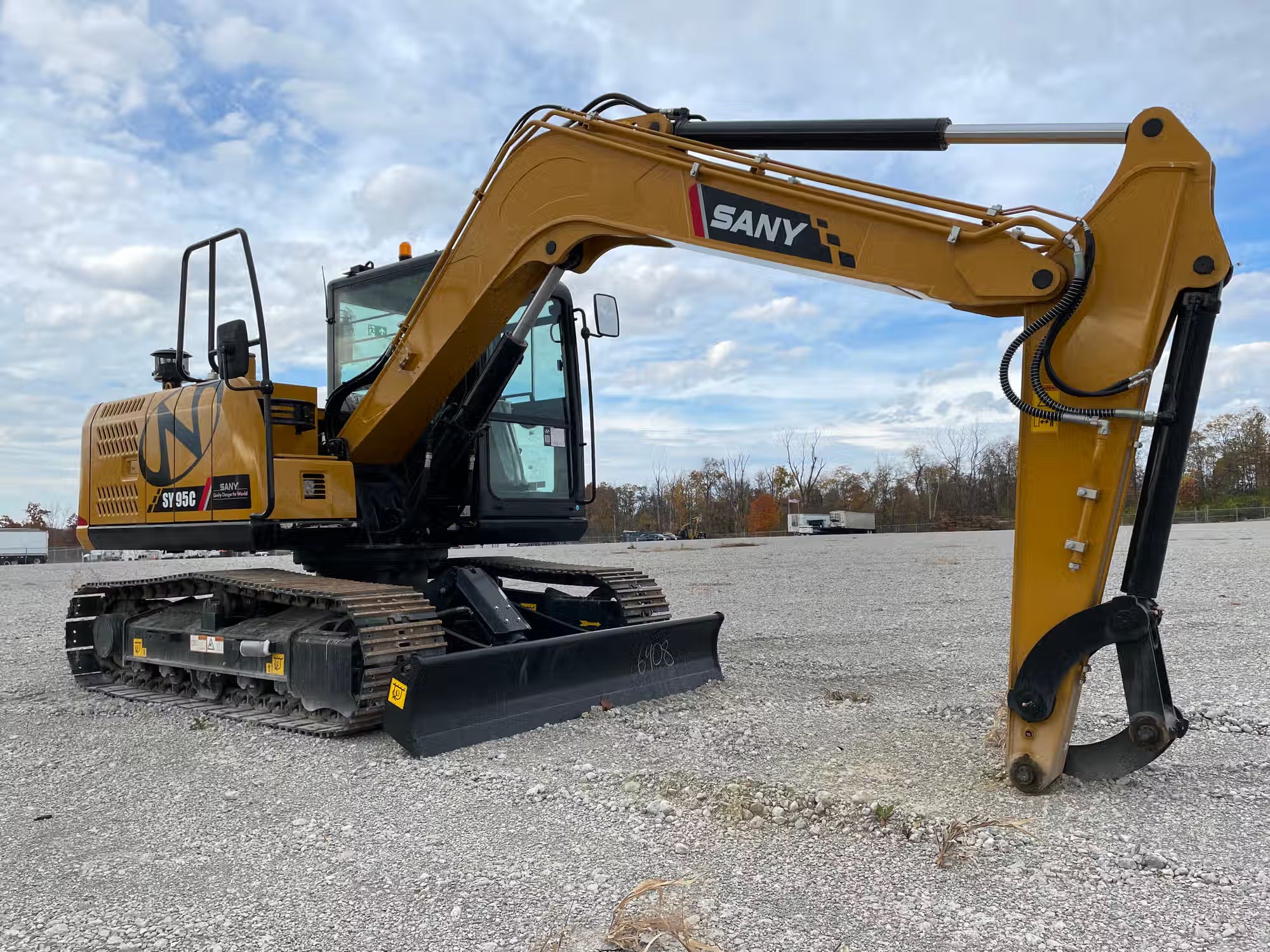

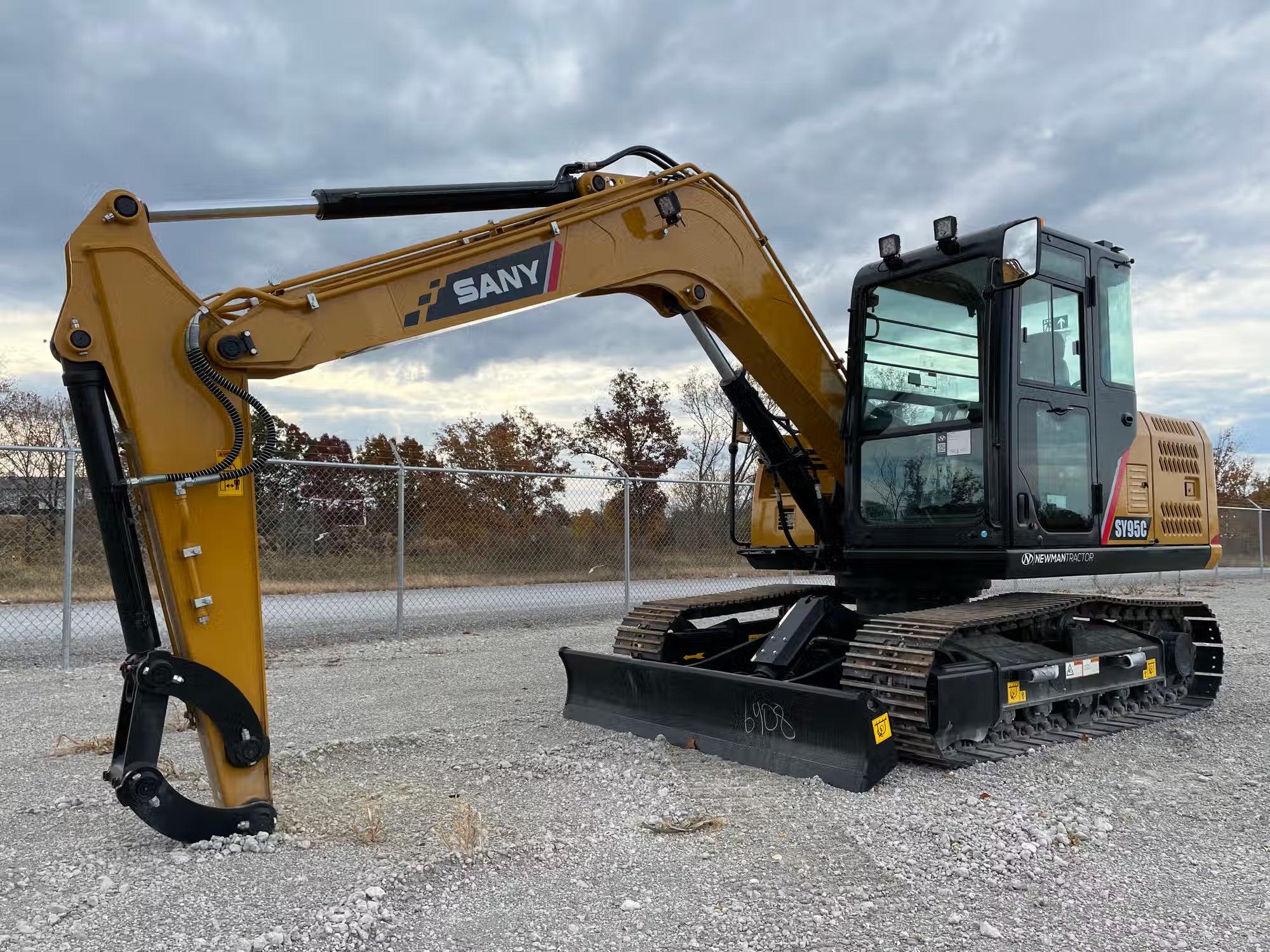

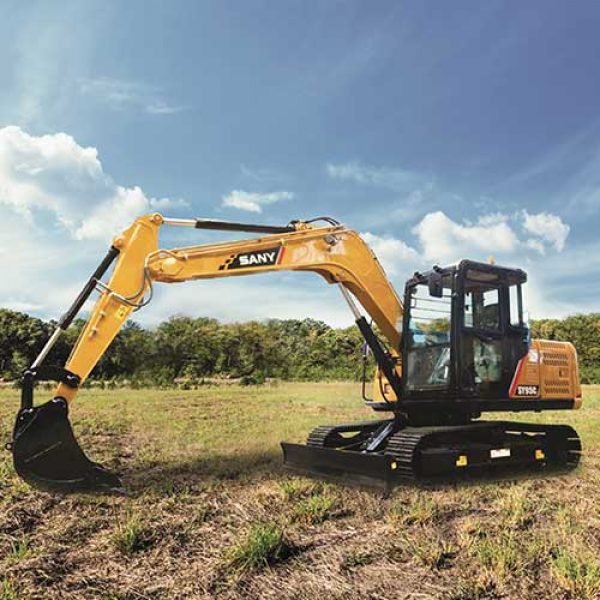

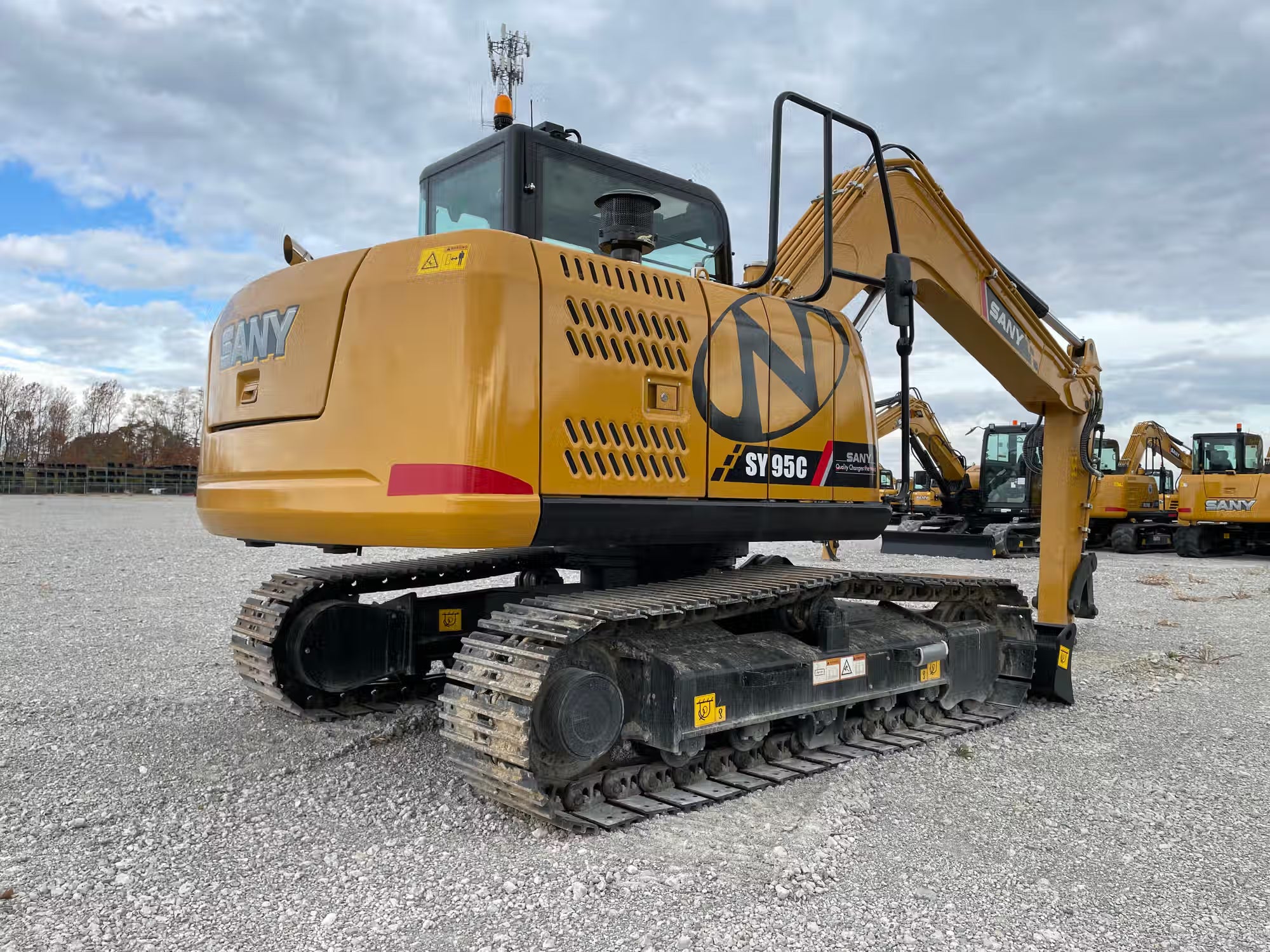

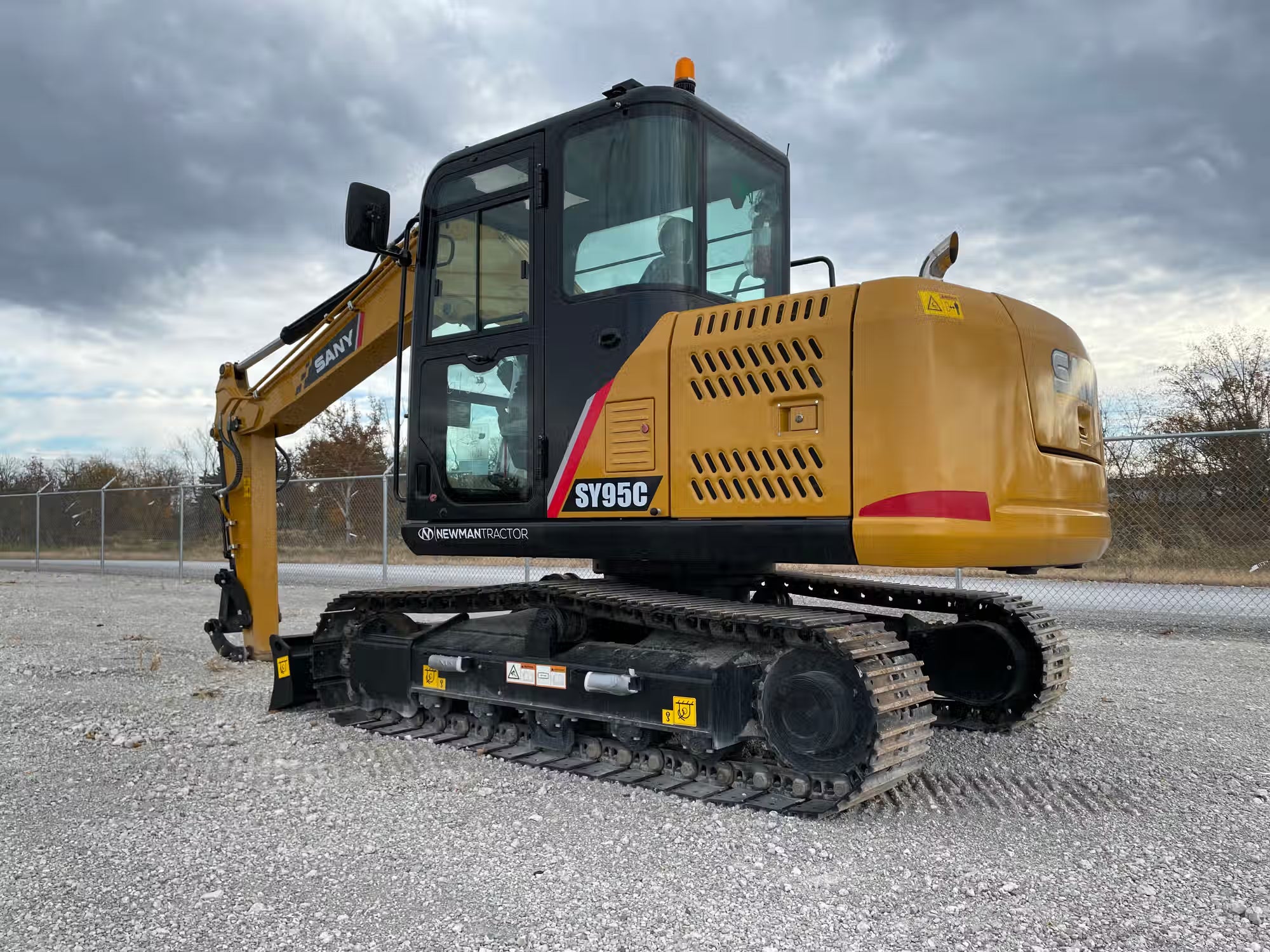

The SANY SY95C is built to tackle demanding residential, commercial, and urban construction projects with unmatched efficiency. Powered by the high-performance Yanmar 4TN98CT engine and optimized load-sensing hydraulics, it delivers exceptional digging power while reducing fuel consumption by up to 10%. With its compact design, robust build, and operator-focused cab, the SY95C offers the perfect balance of strength, maneuverability, and comfort for any job site.

Specifications

Overall Dimensions
Boom Length	4,000 mm 13' 1"
Stick (Arm) Length	– –
Transport Length	6,560 mm 21' 6"
Transport Width	2,260 mm 7' 5"
Transport Height	3,200 mm 10' 6"
Upper Structure Width	2,160 mm 7' 1"
Cab Height	– –
Blade Height	420 mm 17"
Track Width (standard shoe)	450 mm 18"
Track Gauge	1,810 mm 5' 11"
Ground Clearance (minimum)	360 mm 14"
Tail Swing Radius	1,885 mm 6' 2"
Track Length on Ground	2,340 mm 7' 8"
Track Length	2,980 mm 9' 9"



Technical Specifications
Operating Weight	9,180 kg 20,238 lb
Ground Pressure	38.6 kPa 5.6 psi
Engine	Yanmar 4TN98CT-VSY
Displacement	3.3 L 201.4 in3
Net Power	– –
Gross Power	53.7 kW 72 HP
Hydraulics	Load Sensing with Pilot Control
Main Hydraulic Pump	Axial Piston - Variable Displacement
Operating Flow (maximum)	199.5 L/min 52.7 gal/min
Operating Pressure (maximum)	26.3 MPa 3,814 psi
Auxiliary Flow*	––
Auxiliary Pressure	––
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	26.3 MPa 3,814 psi
Travel Speeds (maximum)	2.9 / 5.0 km/hr 1.8 / 3.1 mph
Travel Effort (maximum)	83.0 kN 18,659 lbf
Grade Capability	35º
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	21.5 MPa 3,118 psi
Swing Speed (maximum)	11 rpm
Undercarriage (standard)	Steel Track
Track Shoe Width (standard)	450 mm 18"
Track Rollers (per side)	5
Carrier Rollers (per side)	1



Working Range
Boom Length	4,000 mm 13' 1"
Stick (Arm) Length	2,000 mm 6' 7"
Maximum Digging Height	7,260 mm 23' 10"
Maximum Dumping Height	5,210 mm 17' 1"
Maximum Digging Depth	4,330 mm 14' 2"
Maximum Vertical Wall Digging Depth	3,080 mm 10' 1"
Maximum Reach at Ground Level	6,660 mm 21' 10"
Minimum Swing Radius	1,990 mm 6' 6"



Digging Performance
Boom Length	– –
Stick Length	– –
Bucket Breakout Force (ISO)	– –
Stick Digging Force (ISO)	– –



Product Features

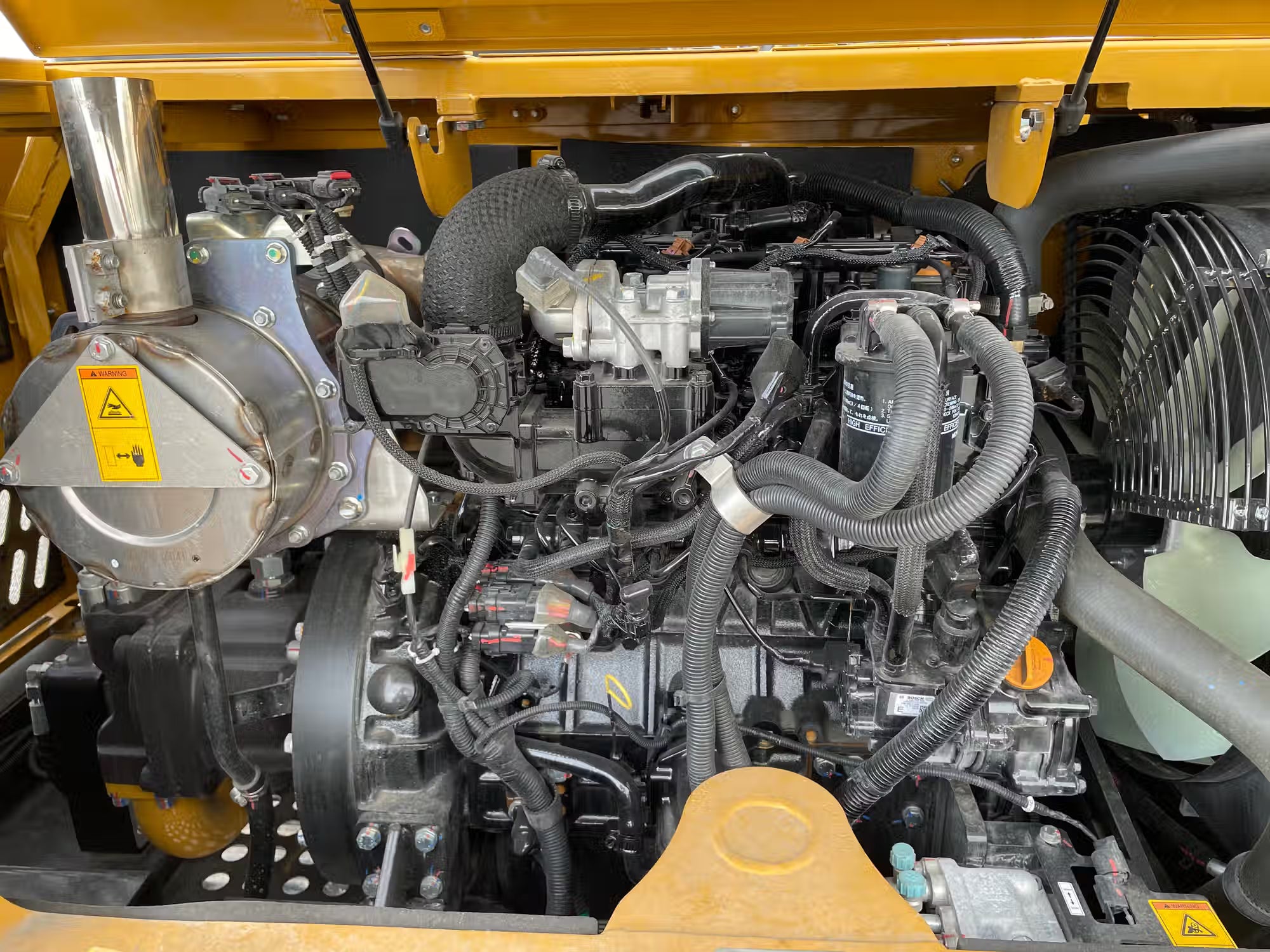

• High-Performance Engine – Yanmar 4TN98CT engine delivers powerful torque and fuel efficiency for demanding applications.
• Optimized Load-Sensing Hydraulics – Improves operating efficiency by up to 5% and fuel efficiency by up to 10%, saving on running costs.
• Compact Yet Powerful – 18" track width and 20,238 lbs operating weight provide exceptional stability in confined spaces.
• Versatile Attachment Options – Auxiliary hydraulics and optional quick coupler allow fast switching between multiple tools.

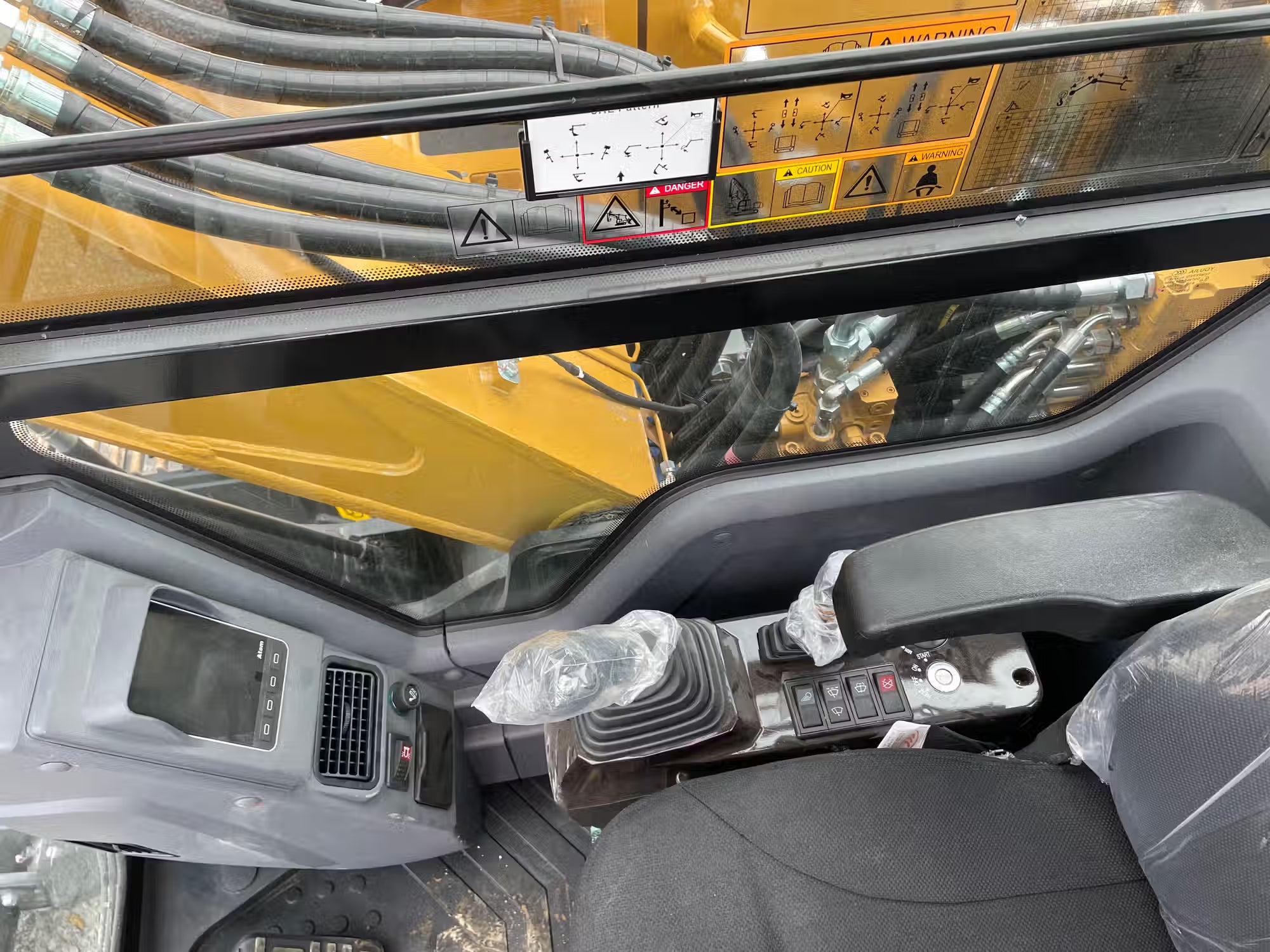

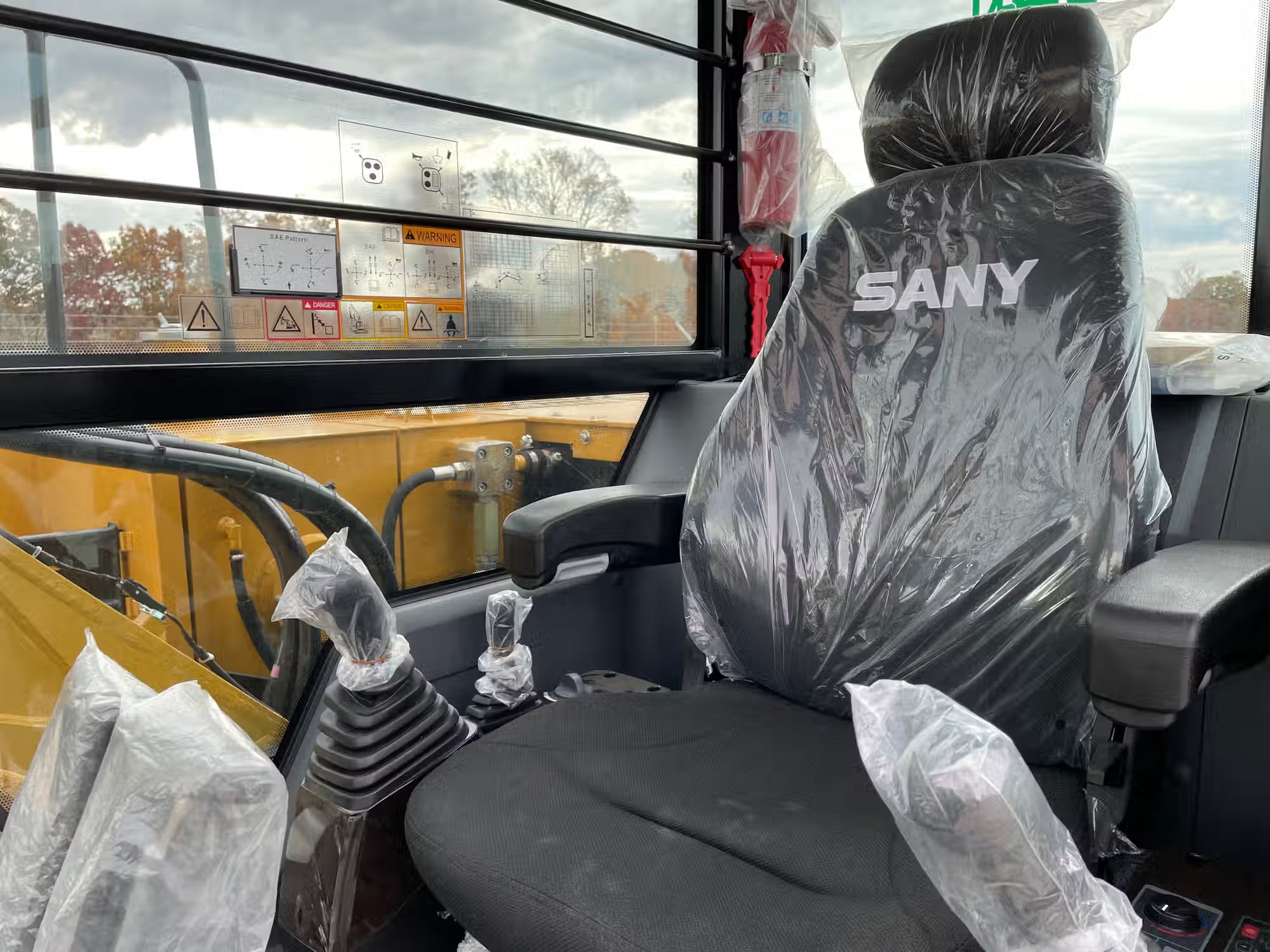

• Operator Comfort – Fully enclosed cab with heating and air conditioning ensures productivity in any climate.
• Built for Durability – Reinforced components and robust hydraulic systems withstand the toughest job site conditions.
