Features:

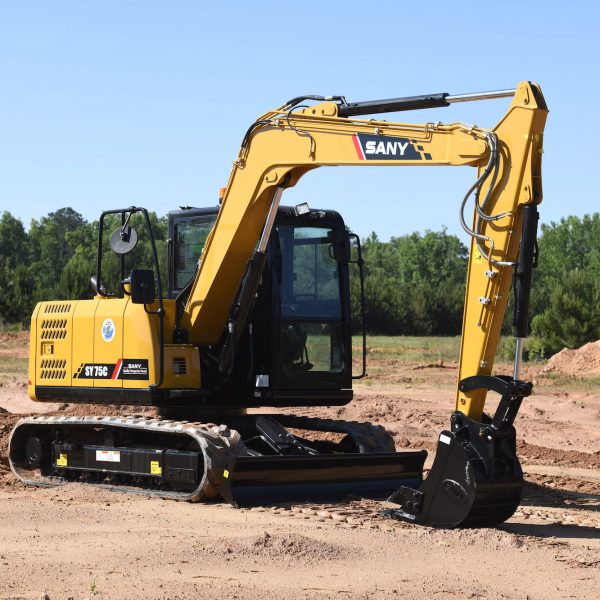

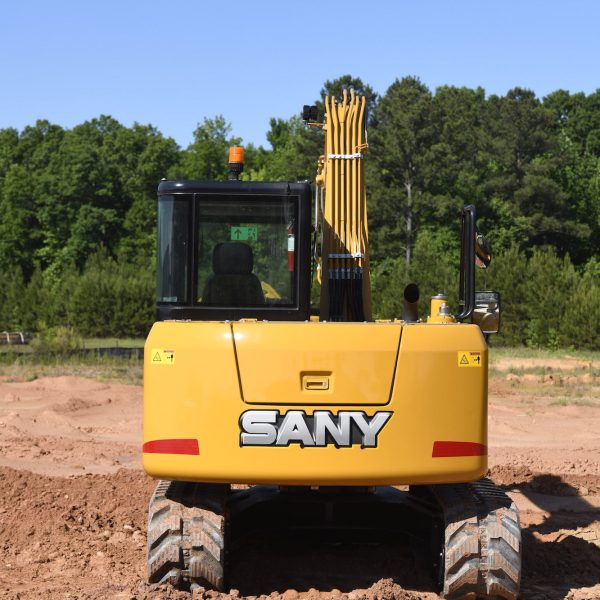

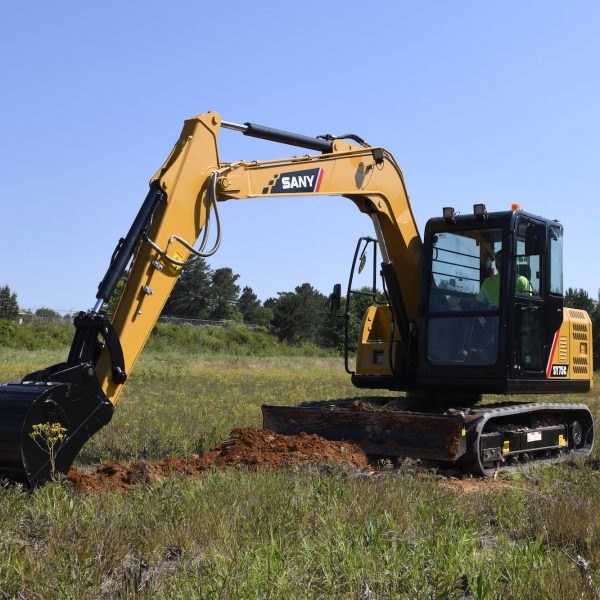

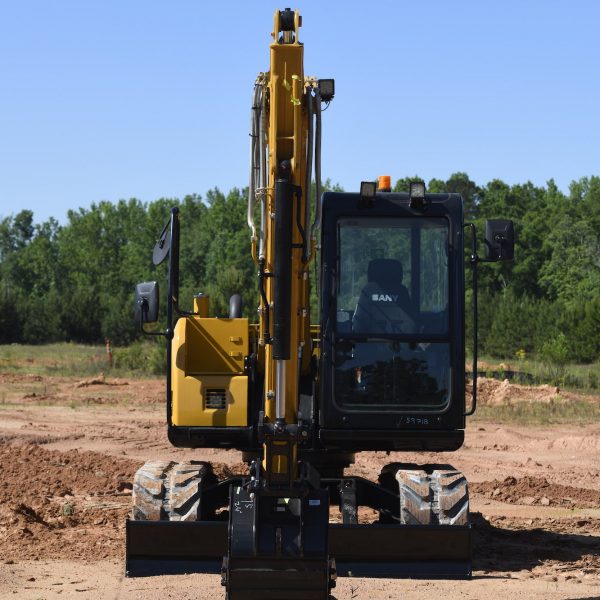

Engineered for performance in a compact footprint, the SY75C Small Excavator combines strength, efficiency, and operator comfort. Powered by a dependable Yanmar T4F engine, it delivers smooth operation and low fuel consumption. The reinforced boom, arm, swing platform, and undercarriage provide superior stability and a longer service life, even in demanding work environments.

With joystick-controlled, proportional, bi-directional auxiliary hydraulics, the SY75C supports a wide range of attachments for versatile jobsite applications. The climate-controlled cab ensures year-round comfort, while the maintenance-friendly layout offers quick access to service points—keeping your downtime to a minimum and productivity at its peak.

Specifications

Overall Dimensions
Boom Length	3,720 mm 12' 2"
Stick (Arm) Length	– –
Transport Length	6,121 mm 20' 1"
Transport Width	2,220 mm 7' 3"
Transport Height	2,720 mm 8' 11"
Upper Structure Width	2,040 mm 6' 8"
Cab Height	– –
Blade Height	405 mm 16"
Track Width (standard shoe)	450 mm 18"
Track Gauge	1,750 mm 5' 9"
Ground Clearance (minimum)	380 mm 15"
Tail Swing Radius	1,800 mm 5' 11"
Track Length on Ground	2,195 mm 7' 2"
Track Length	2,820 mm 9' 3"

Technical Specifications
Operating Weight	7,280 kg 16,050 lb
Ground Pressure	33.0 kPa 4.8 psi
Engine	Yanmar 4TNV98C
Displacement	2.2 L 134.3 in3
Net Power	40.5 kW 54 HP
Gross Power	43.0 kW 57.7 HP
Hydraulics	Load Sensing with Pilot Control
Main Hydraulic Pump	Axial Piston - Variable Displacement
Operating Flow (maximum)	149.0 L/min 39.4 gal/min
Operating Pressure (maximum)	26.3 MPa 3,814 psi
Auxiliary Flow*	– –
Auxiliary Pressure	– –
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	26.3 MPa 3,814 psi
Travel Speeds (maximum)	2.8 / 5.3 km/hr 1.7 / 3.3 mph
Travel Effort (maximum)	56.8 kN 12,769 lbf
Grade Capability	35º
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	21.6 MPa 3,133 psi
Swing Speed (maximum)	10.5 rpm
Undercarriage (standard)	Belted Rubber Track
Track Shoe Width (standard)	450 mm 18"
Track Rollers (per side)	5
Carrier Rollers (per side)	1



Working Range
Boom Length	3,720 mm 12' 2"
Stick (Arm) Length	2,050 mm 6' 9"
Maximum Digging Height	7,390 mm 24' 3"
Maximum Dumping Height	5,490 mm 18' 0"
Maximum Digging Depth	4,,450 mm 14' 7"
Maximum Vertical Wall Digging Depth	3840 mm 12' 7"
Maximum Reach at Ground Level	6,505 mm 21' 4"
Minimum Swing Radius	1,940 mm 6' 4"



Digging Performance
Boom Length	– –
Stick Length	– –
Bucket Breakout Force (ISO)	– –
Stick Digging Force (ISO)	– –



Product Features

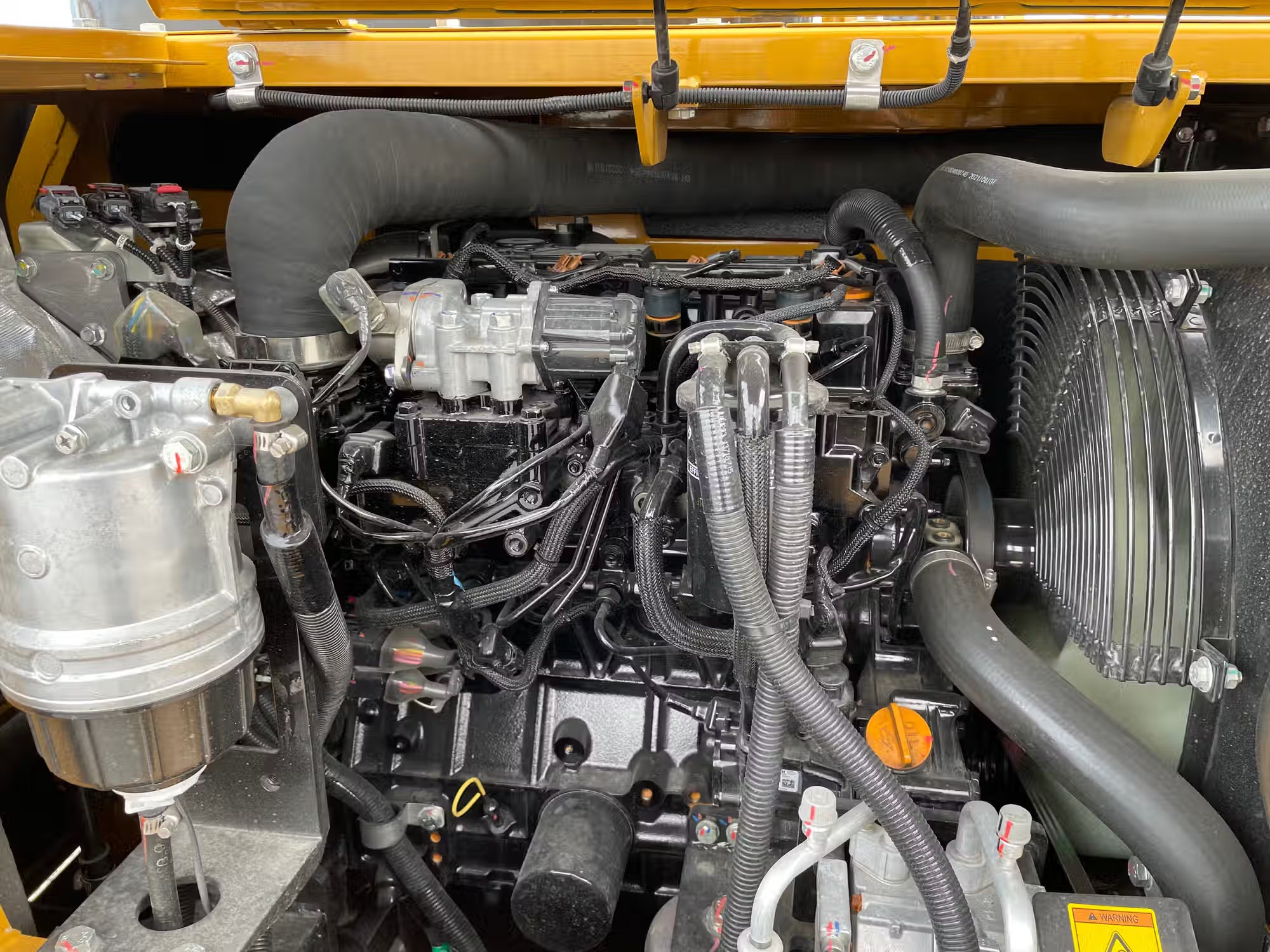

• Powerful & Fuel-Efficient Engine
  Equipped with the proven Yanmar 4TNV98C T4F engine, delivering exceptional torque and fuel efficiency for long, productive workdays.
•  Reinforced for Maximum Durability
  Extra-strength boom, arm, swing platform, and undercarriage ensure outstanding stability and an extended service life, even under heavy workloads.
• Compact Size, Big Performance
  With an 18-inch rubber track and a machine weight of 16,050 lbs, the SY75C offers superior lift capacity and maneuverability in confined spaces.
•  Versatile Hydraulic System
  Joystick-controlled, proportional, bi-directional auxiliary hydraulics easily power a wide range of attachments for multiple job site applications.

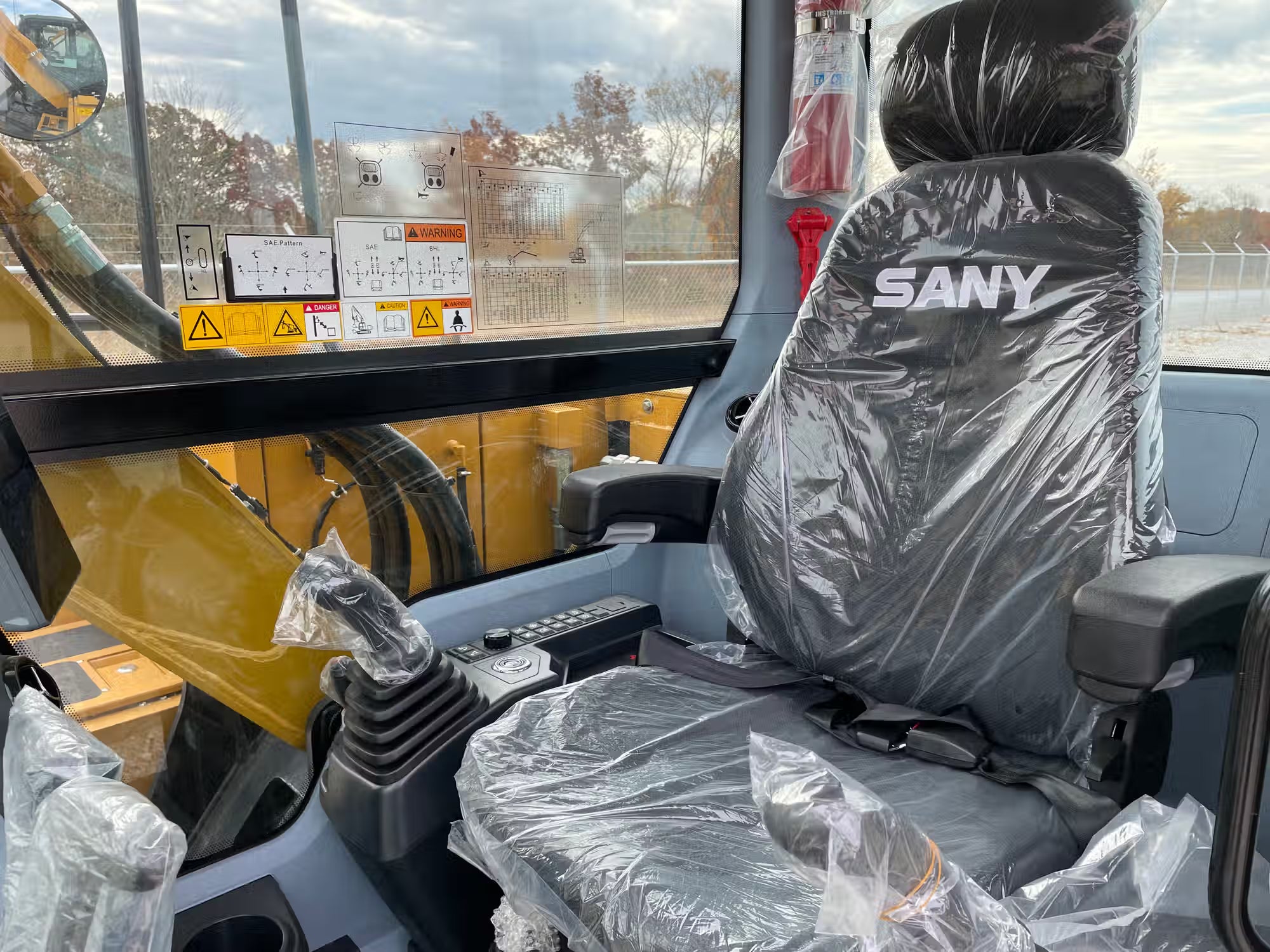

• All-Day Operator Comfort
  Fully enclosed cab with heating and air conditioning keeps operators comfortable in any weather, reducing fatigue and boosting productivity.
•  Quick Attachment Changes
  Optional quick coupler allows fast, tool-free switching between buckets and hydraulic tools, maximizing versatility and efficiency on the job.
