1 6
LIUGONG

925E Excavator
Call for price Buy
Out of stock
$99,999,999.00 $99,999,999.00
Description

Description

Features:
Built for power and efficiency, this E Series excavator is equipped with a Cummins engine for strong torque and breakout force even at low speeds. Its smart hydraulic system adjusts power on demand to save fuel while delivering consistent performance. Multiple auxiliary hydraulic options and a quick coupler make it easy to switch attachments, boosting versatility on any jobsite. The reinforced ROPS cab meets ISO safety standards, with optional FOPS for extra protection.

Specifications

Product Model Parameter Unit of Measure Measurement
925E - Stage II Operating weight kg 25500
Engine power - 133kW (178 hp / 181 ps) @ 2,000 rpm
Std. Bucket capacity m³ 1.2
Travel speed(High) km/h 5.8
Travel speed(Low) km/h 3.5
Maximum swing speed rpm 12
Arm breakout force kN 124
Arm breakout force Power boost kN 134
Bucket breakout force kN 165
Bucket breakout force Power boost kN 179
Shipping length mm 10220
Shipping width mm 3190
Shipping height mm 3200
Track shoe width (std) mm 600
Boom mm 6000
Arm mm 2980
Digging reach mm 10340
Digging reach on ground mm 10150
Digging depth mm 6925
Vertical wall digging depth mm 5795
Cutting height mm 9865
Dumping height mm 6920
Minimum front swing radius mm 3695
Model - Cummins 6BTAA5.9 - C178 - II
Emission - EPA Tier 2 / EU Stage II
System maximum flow - 2×240 L/min (2×63 gal/min)
System pressure MPa 34.3
925E - Stage IIIA Operating weight kg 25500
Engine power - 140 kW (188 hp / 190ps) @ 2,050 rpm
Std. Bucket capacity m³ 1.2
Travel speed(High) km/h 5.5
Travel speed(Low) km/h 3.3
Maximum swing speed rpm 10.5
Arm breakout force kN 124
Arm breakout force Power boost kN 134
Bucket breakout force kN 165
Bucket breakout force Power boost kN 179
Shipping length mm 10220
Shipping width mm 3190
Shipping height mm 3200
Track shoe width (std) mm 600
Boom mm 6000
Arm mm 2980
Digging reach mm 10340
Digging reach on ground mm 10150
Digging depth mm 6925
Vertical wall digging depth mm 5795
Cutting height mm 9865
Dumping height mm 6920
Minimum front swing radius mm 3700
Model - Cummins QSB7
Emission - Stage IIIA
System maximum flow - 2×240 L/min (2×63 gal/min)
System pressure MPa 34.3
925E - Stage II / Tier2 15M Long Reach Arm Operating weight kg 27500
Engine power - 133 kW (178 hp / 181 ps) @ 2,000 rpm
Std. Bucket capacity m³ 0.58
Travel speed(High) km/h 5.8
Travel speed(Low) km/h 3.5
Maximum swing speed rpm 12
Arm breakout force kN 62
Bucket breakout force kN 89
Shipping length mm 12540
Shipping width mm 3390
Shipping height mm 3540
Track shoe width (std) mm 800
Boom mm 8500
Arm mm 6400
Digging reach mm 15720
Digging reach on ground mm 15620
Digging depth mm 11720
Vertical wall digging depth mm 9715
Cutting height mm 13695
Dumping height mm 11360
Minimum front swing radius mm 4848
Model - Cummins 6BTAA5.9 - C178 - II
Emission - Stage II / Tier 2
System maximum flow - 2×240 L/min (2×63 gal/min)
System pressure MPa 34.3
925E - Stage III 15M Long Reach Arm Operating weight kg 27500
Engine power - 140 kW @ 2,050 rpm
Std. Bucket capacity m³ 0.58
Travel speed(High) km/h 5.5
Travel speed(Low) km/h 3.3
Maximum swing speed rpm 10.5
Arm breakout force kN 62
Bucket breakout force kN 89
Shipping length mm 12540
Shipping width mm 3390
Shipping height mm 3540
Track shoe width (std) mm 800
Boom mm 8500
Arm mm 6400
Digging reach mm 15720
Digging reach on ground mm 15620
Digging depth mm 11720
Vertical wall digging depth mm 9715
Cutting height mm 13695
Dumping height mm 11360
Minimum front swing radius mm 4848
Model - Cummins QSB7
Emission - Stage IIIA
System maximum flow - 2×240 L/min (2×63 gal/min)
System pressure MPa 34.3
925E－Stage III 18M Long Reach Arm Operating weight kg 29000
Engine power - 140 kW (188 hp / 190 ps) @ 2,050 rpm
Std. Bucket capacity m³ 0.4
Travel speed(High) km/h 5.5
Travel speed(Low) km/h 3.3
Maximum swing speed rpm 10.5
Shipping length mm 14625
Shipping width mm 3390
Shipping height mm 3550
Track shoe width (std) mm 800
Boom mm 10350
Arm mm 8000
Digging reach mm 18365
Digging reach on ground mm 18265
Digging depth mm 14815
Vertical wall digging depth mm 11862
Cutting height mm 14030
Dumping height mm 11925
Minimum front swing radius mm 5970
Model - Cummins QSB7
Emission - Stage IIIA
System maximum flow  - 2×240 L/min (2x63 gal/min)
System pressure MPa 34.3



Product Features

  • Unmatched performance driven by the Cummins engine maximizes torque output with more power and breakout force at lower engine speeds.

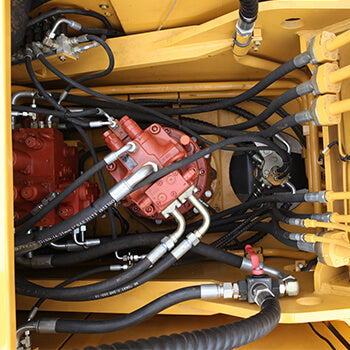

  • Hydraulic request signals detect activity, decreasing and increasing engine speed as required. Power is supplied only as needed, achieving optimum fuel efficiency.
  • Options for auxiliary hydraulic piping include bi-directional variable high flow line, an additional line for rotating attachments and also a single acting line. The quick coupler further ensures you get the most out of your machine by easily switching between a wide range of attachments to suit your needs.

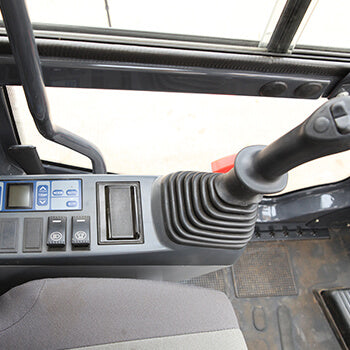

  • E series cab high-strength ROPS ensures operator  protection meeting lS0 12117-2：2008 safety standard. Falling Object Protection System (FOPS) is  optional
