SANY

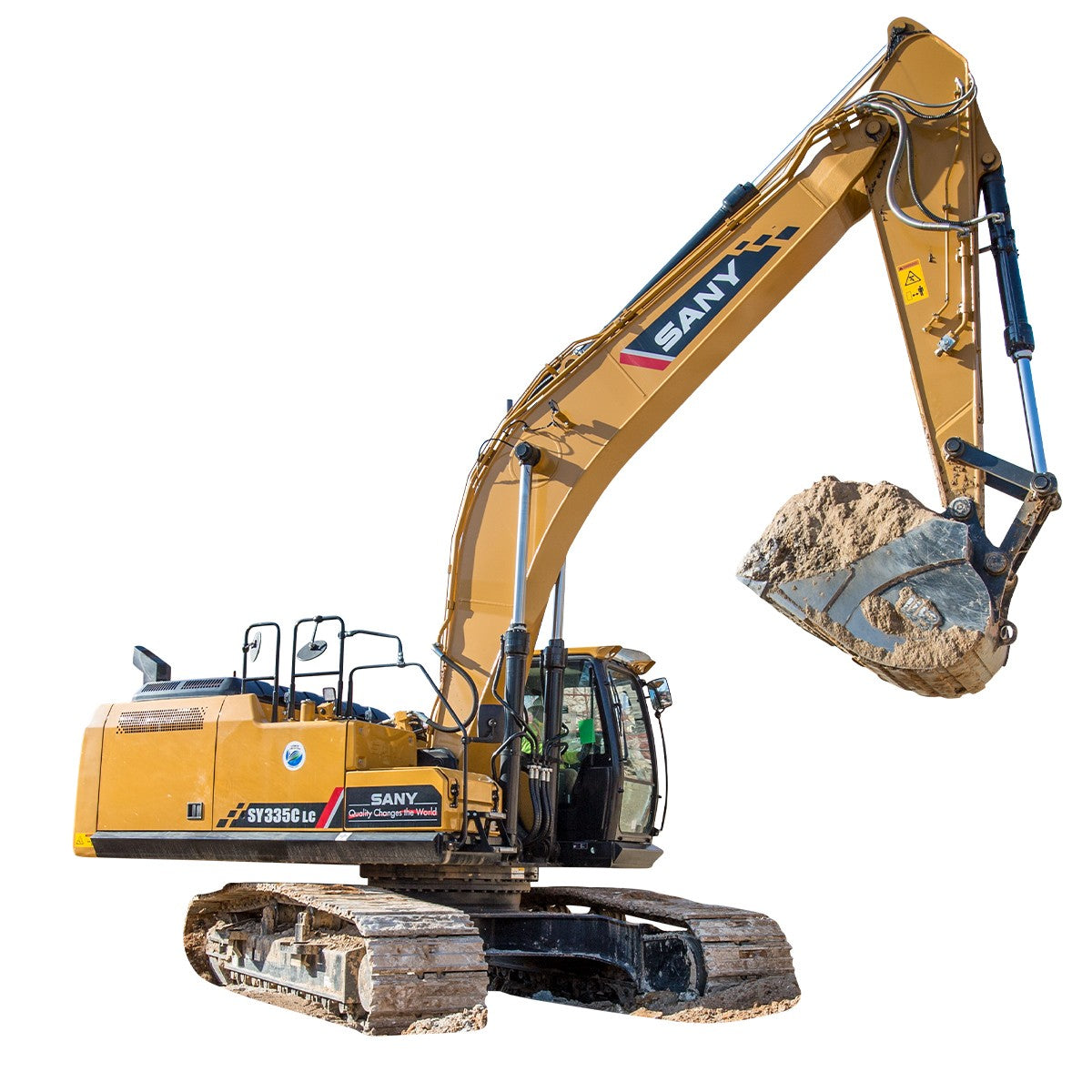

SANY SY335C Hydraulic Excavator
Call for price Buy
Out of stock
$999,999.00 $999,999.00
Description

Specifications

Overall Dimensions
Boom Length 6,150 mm
 20' 2''
Stick (Arm) Length 3,200 mm
 10' 6''
Transport Length 10,667 mm
 35'
Transport Width 3,396 mm
 11' 2''
Transport Height 3,470 mm
11' 5''
Upper Structure Width

3,147 mm

 10' 4''
Cab Height –
–
Blade Height –
–
Track Width (standard shoe) 800 mm
 31''
Track Gauge 2,590 mm
 8' 6''
Ground Clearance (minimum) 550 mm
 2'
Tail Swing Radius 3,315 mm
10' 11''
Track Length on Ground –
–
Track Length 5,055 mm
16'7”



Technical Specifications
Operating Weight 33,600 kg
 74,075 lbs
Ground Pressure 60.3 kPA
 8.8 psi
Engine Cummins L9 Stage V
Displacement 9.8 L
 598.0 in³
Net Power –
–
Gross Power 209 kW
 280.3 HP
Hydraulics Positive Flow System
Main Hydraulic Pump Axial Piston Variable Displacement
Operating Flow (maximum) 560 L/min
 147 gal/min
Operating Pressure (maximum) 34.3 MPa
 4,975 psi
Auxiliary Flow* –
–
Auxiliary Pressure –
–
Travel Motor 2 * Axial Piston Motor w/ Parking Brake
Travel Pressure (maximum) 34.3 MPa
4,975 psi
Travel Speeds (maximum) 3.4 / 5.2 km/hr
 2.1 / 3.2 mph
Travel Effort (maximum) 245.0 kN
 55,078 lbf
Grade Capability 35°
Swing Motor Axial Piston Motor w
 Swing Brake
Swing Pressure (maximum) 27.5 MPa
 3,989 psi
Swing Speed (maximum) 9.0 RPM
Undercarriage (standard) Steel Track
Track Shoe Width (standard) 800 mm
 31"
Track Rollers (per side) 9
Carrier Rollers (per side) 2



Working Range
Boom Length 6,150 mm
20' 2"
Stick (Arm) Length 3,200 mm
10' 6"
Maximum Digging Height 10,497 mm
34.5"
Maximum Dumping Height 7,359 mm
24' 2"
Maximum Digging Depth 6,815 mm
22' 4"
Maximum Vertical Wall Digging Depth 5,800 mm
19'
Maximum Reach at Ground Level 10,870 mm
35' 8"
Minimum Swing Radius

4,000 mm

13' 1"



Digging Performance
Boom Length –
–
Stick Length 3,200 mm
10' 6"
Bucket Breakout Force (ISO) –
–
Stick Digging Force (ISO) –
–
