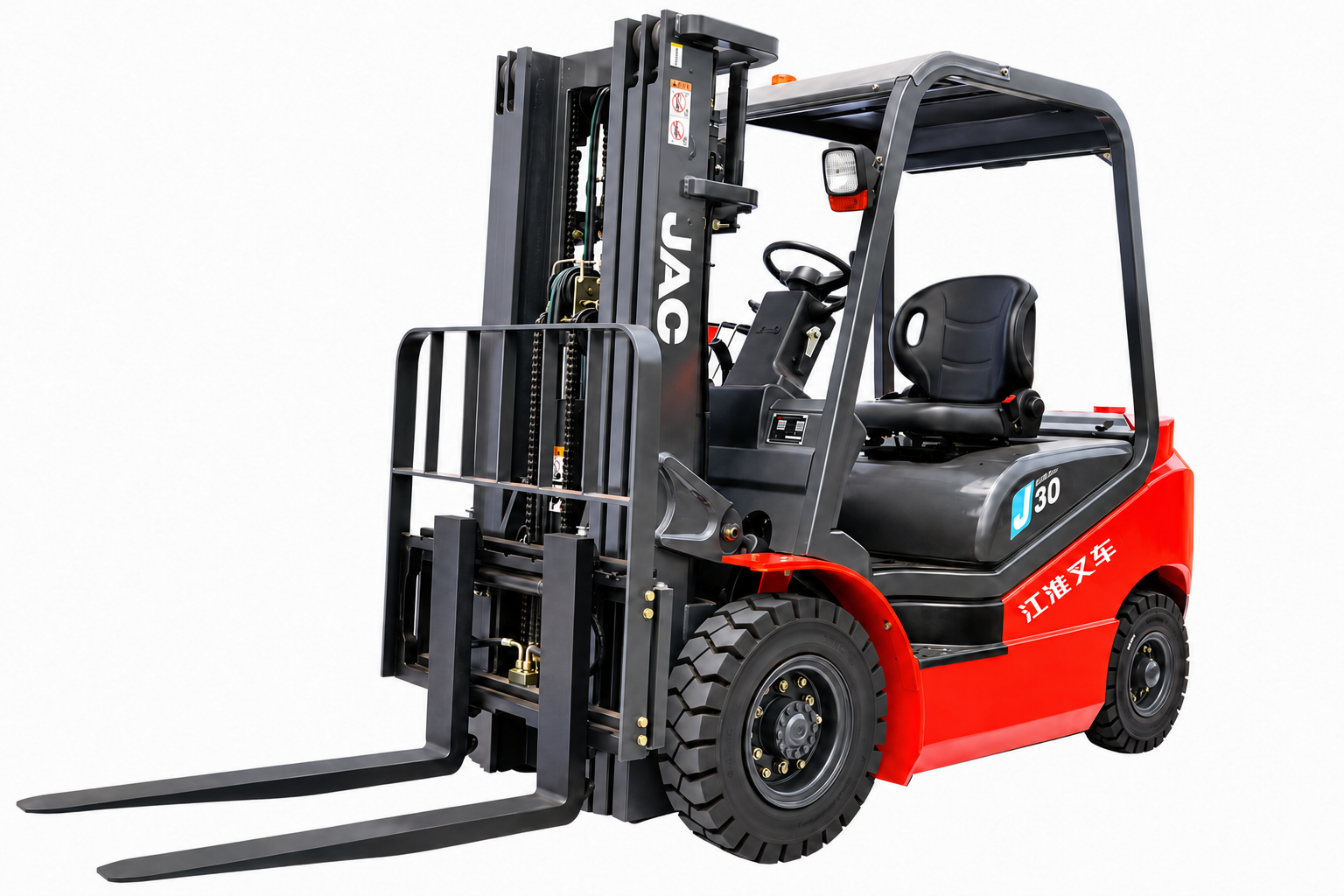

JAC CPCD30J Diesel / Gas Forklift (6,600 lb)

JAC CPCD30J Diesel / Gas Forklift (6,600 lb)

JAC

Please contact us for current pricing and availability

View full details

The JAC CPCD20J delivers strong and efficient performance with over 23 kN of traction, more than 20% gradeability, and a loaded travel speed of over 19 km/h. Its load-sensing hydraulic system reduces fuel consumption, while the low center of gravity provides excellent stability. IP65-rated waterproof electrical connectors, a low-noise and low-vibration design, wide visibility, a spacious adjustable operator compartment, and easy-to-use controls improve safety and comfort. For convenient servicing, the engine hood opens up to 80 degrees, providing quick access to key maintenance components.
6,600 lb Capacity ｜ 118 in Lift Height ｜ 42 in Forks ｜ 11.8 mph Travel Speed

Dimensions

Overall Length, without Forks
107.9 in (2,740 mm)
Overall Width
45.3 in (1,150 mm)
Mast Lowered Height
81.9 in (2,080 mm)
Maximum Height, with Backrest
167.5 in (4,255 mm)
Overhead Guard Height
82.9 in (2,105 mm)
Fork Size (L × W × T)
42.1 × 4.9 × 1.8 in (1,070 × 125 × 45 mm)
Free Lift Height
5.1 in (130 mm)
Minimum Ground Clearance
5.3 in (135 mm)
Minimum Turning Radius
98.4 in (2,500 mm)
Minimum Stacking Aisle Width
168.7 in (4,285 mm)

Performance & Configuration

Load Capacity
6,614 lbs (3,000 kg)
Standard Lift Height
118.1 in (3,000 mm)
Load Center
19.7 in (500 mm)
Power Type
Diesel
Maximum Travel Speed, Loaded
11.8 mph (19 km/h)
Maximum Lifting Speed, Loaded
18.1 in/s (460 mm/s)
Maximum Gradeability
20%
Maximum Drawbar Pull
23.5 kN
Engine
AK-C240PKJ-30
Engine Power
46–49 hp (34.3–36.5 kW)
Engine Displacement
2.369 L
Number of Cylinders
4
Fuel Tank Capacity
15.9 gal (60 L)
Front Tire Size
28 × 9-15-14PR
Rear Tire Size
6.50-10-10PR
Tire Type
Pneumatic
Service Weight
9,480 lbs (4,300 kg)
Mast Tilt, Forward/Backward
6°/12°
Optional Mast
Multiple lift heights available

Rental

Daily: $299

Weekly: $690

Monthly: $2,055
