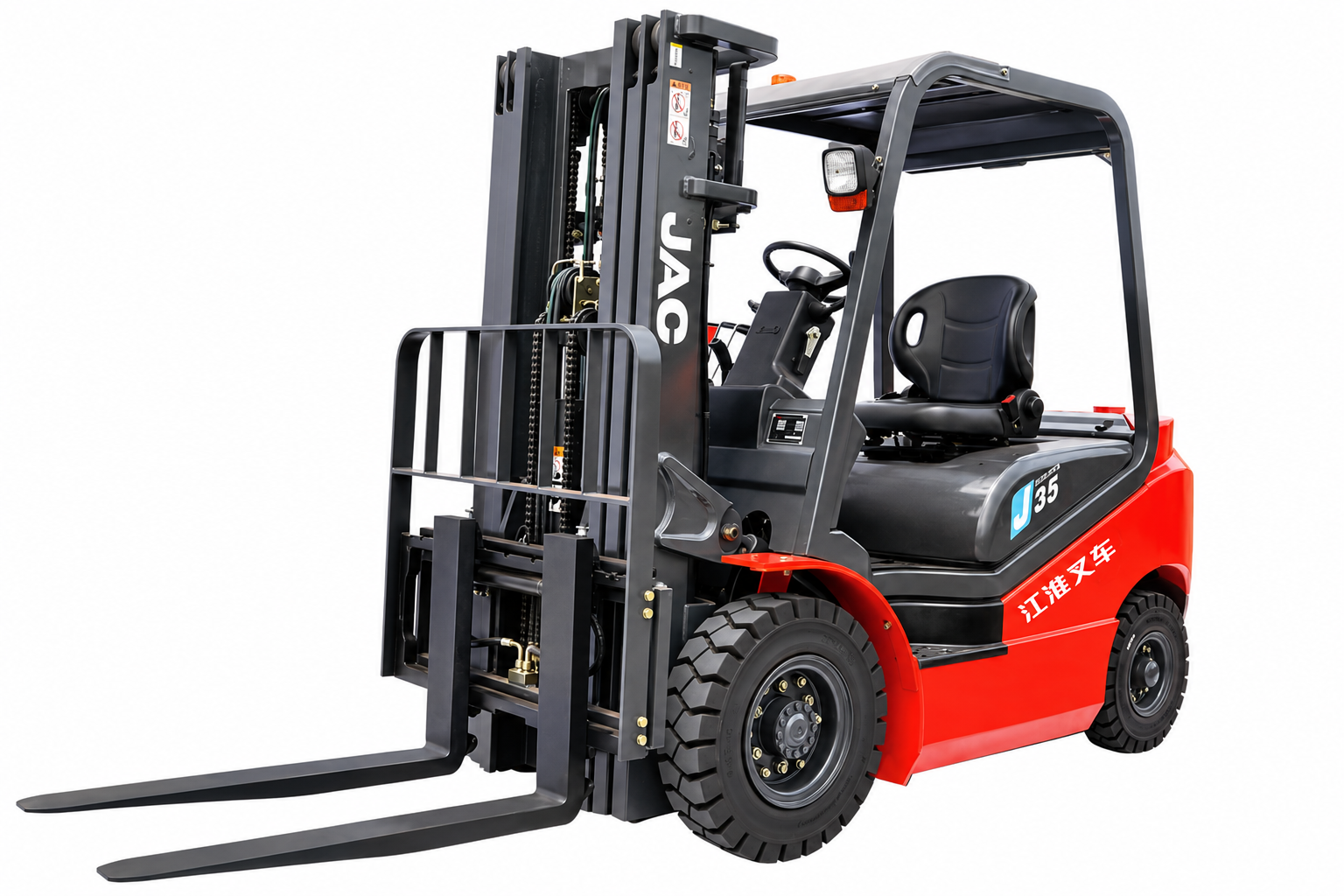

JAC CPCD35J Diesel / Gas Forklift (7,700 lb)

JAC CPCD35J Diesel / Gas Forklift (7,700 lb)

JAC

Please contact us for current pricing and availability

View full details

The JAC CPCD20J delivers strong and efficient performance with over 23 kN of traction, more than 20% gradeability, and a loaded travel speed of over 19 km/h. Its load-sensing hydraulic system reduces fuel consumption, while the low center of gravity provides excellent stability. IP65-rated waterproof electrical connectors, a low-noise and low-vibration design, wide visibility, a spacious adjustable operator compartment, and easy-to-use controls improve safety and comfort. For convenient servicing, the engine hood opens up to 80 degrees, providing quick access to key maintenance components.
7,700 lb Capacity ｜ 118 in Lift Height ｜ 42 in Forks ｜ 11.8 mph Travel Speed

Dimensions

Overall Length, without Forks
107.3 in (2,725 mm)
Overall Width
45.3 in (1,150 mm)
Mast Lowered Height
83.5 in (2,120 mm)
Maximum Height, with Backrest
166.5 in (4,230 mm)
Overhead Guard Height
82.9 in (2,105 mm)
Fork Size (L × W × T)
42.1 × 4.9 × 2 in (1,070 × 125 × 50 mm)
Free Lift Height
5.7 in (145 mm)
Minimum Ground Clearance
5.3 in (135 mm)
Minimum Turning Radius
101.4 in (2,575 mm)
Minimum Stacking Aisle Width
172 in (4,370 mm)

Performance & Configuration

Load Capacity
7,716 lbs (3,500 kg)
Standard Lift Height
118.1 in (3,000 mm)
Load Center
19.7 in (500 mm)
Power Type
Diesel
Maximum Travel Speed, Loaded
11.8 mph (19 km/h)
Maximum Lifting Speed, Loaded
16.9 in/s (430 mm/s)
Maximum Gradeability
20%
Maximum Drawbar Pull
19 kN
Engine
AK-C240PKJ-30
Engine Power
46–49 hp (34.3–36.5 kW)
Engine Displacement
2.369 L
Number of Cylinders
4
Fuel Tank Capacity
15.9 gal (60 L)
Front Tire Size
28 × 9-15-14PR
Rear Tire Size
6.50-10-10PR
Tire Type
Pneumatic
Service Weight
10,626 lbs (4,820 kg)
Mast Tilt, Forward/Backward
6°/12°
Optional Mast
Multiple lift heights available

Rental

Daily: $340

Weekly: $782

Monthly: $2,642
