1932ME Scissor Lifts

1932ME Scissor Lifts

SINOBOOM
$99,999,999.00
$99,999,999.00
Please contact us for current pricing and availability: Buy

In Stock

View full details

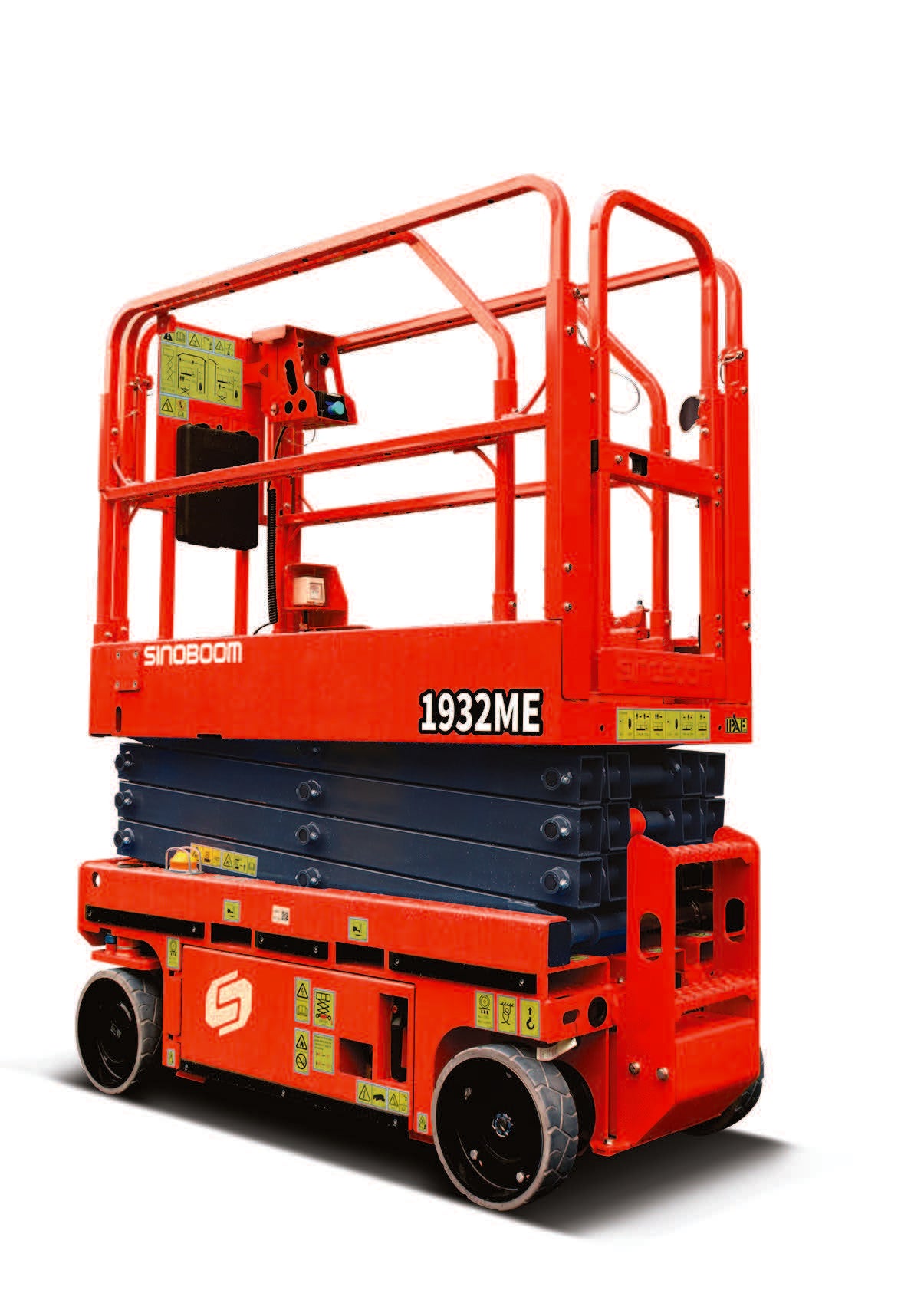

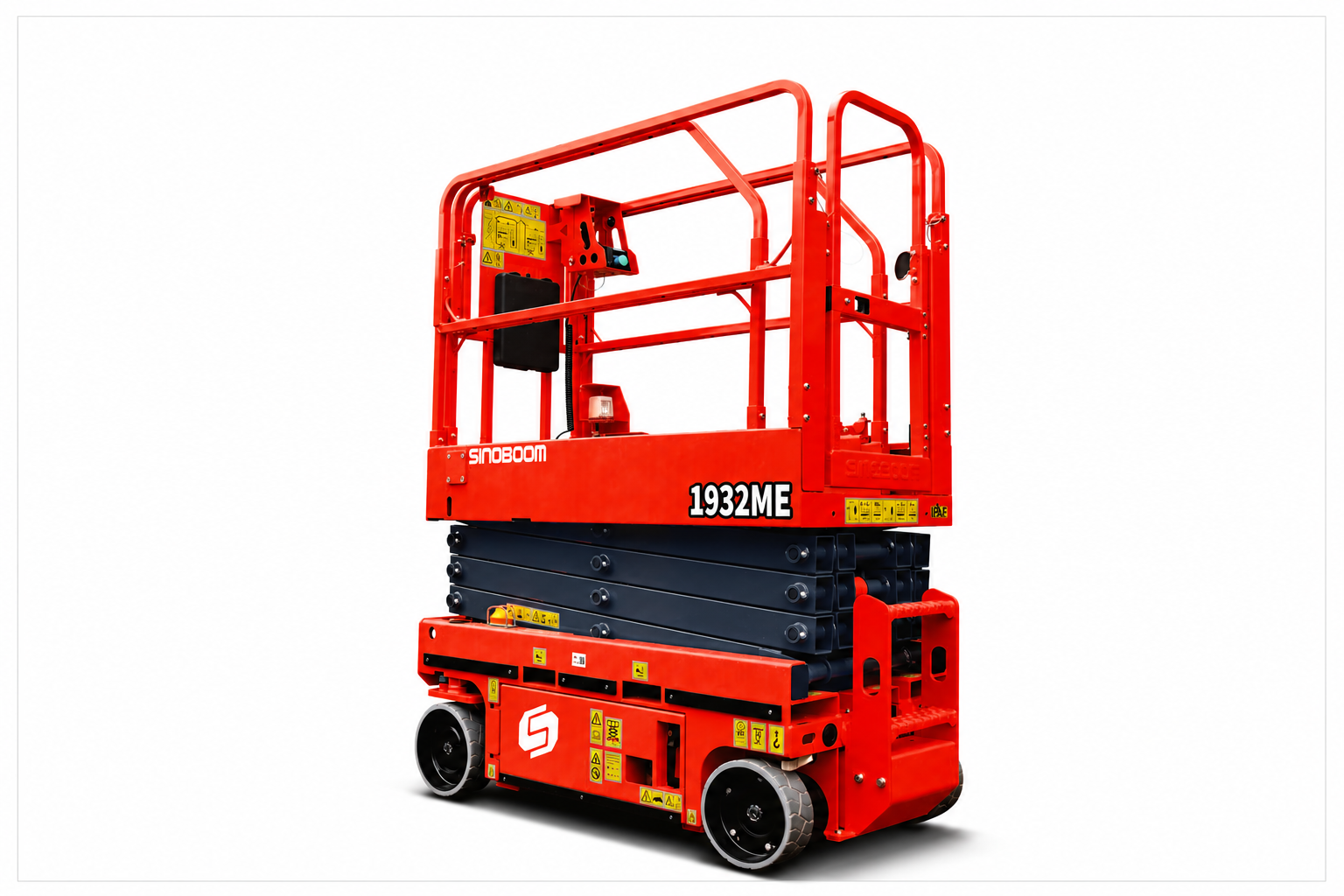

The Sinoboom 1932ME Electric Scissor Lift delivers a 25 ft working height in a compact, narrow design ideal for indoor maintenance, construction, warehousing, and facility management applications. Featuring zero-emission electric operation, a 507 lb platform capacity, and a width of just 32 inches, it easily passes through standard doorways while providing efficient elevated access. Its AC drive system, maintenance-free batteries, and low-maintenance design help maximize uptime and reduce operating costs.

Dimensions

Max Working Height
25′
Max Platform Height
19′
Max Horizontal Extension
3′
Length-Stowed
5’11”
Width-Stowed
2’8″
Height-Stowed Rail Unfolded
7′
Wheelbase
4’4″
Ground Clearance
3″
Platform Dimensions (LxWxH)
5’4.6″ x 2’6″ x 3’7″

Performance

Platform Allowable Occupants (Indoor/Outdoor)
2 Persons / 1 Person
Platform Capacity
507 lbs
Elevation Time (Rated load)
15s~20s
Drive Speed-Raised
0-0.31 mph
Drive Speed-Stowed
2.5mph
Gradeability
25%
Turning Radius (Inside/Outside)
0/4’11”
Descent Time (Rated load)
25s~30s
Tires-solid
12.7×4″
Tilt Rating (Front to Back/Side to Side)
3/1.5°

Power

Batteries
6V×4/225Ah
Power Source
24V DC
Drive Motor
24V AC/0.87kW
Charger Input
100~240V AC
Charger Output
30A
Hydraulic System Capacity
2.9 gal
Weight (Indoor/Outdoors)
3,473lbs
Standards Compliance
ANSI/CSA

Rental

Daily: $220

Weekly: $446

Monthly: $1,019
