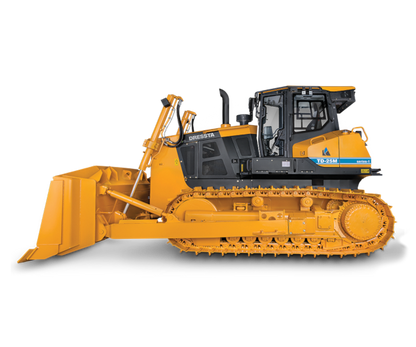

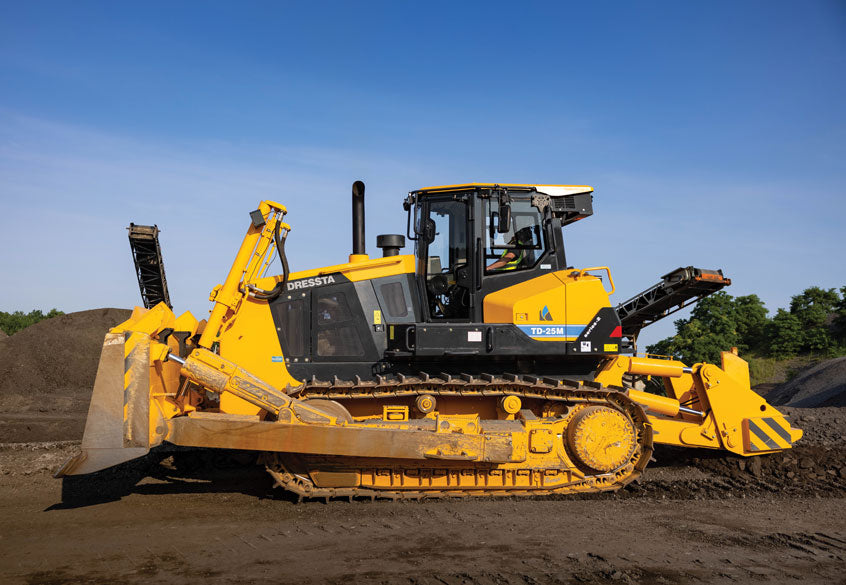

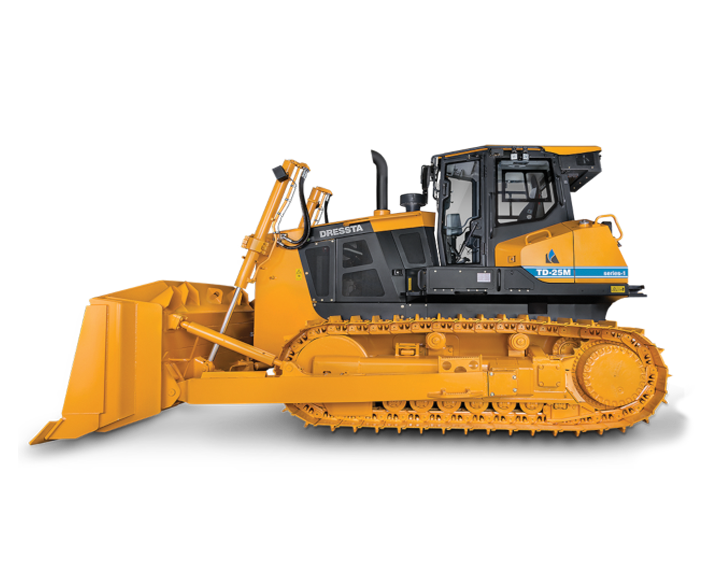

TD-25M Crawler Dozer

TD-25M Crawler Dozer

Regular price $99,999,999.00
Sale price $99,999,999.00
Please contact us for current pricing and availability: Buy

In Stock

View full details

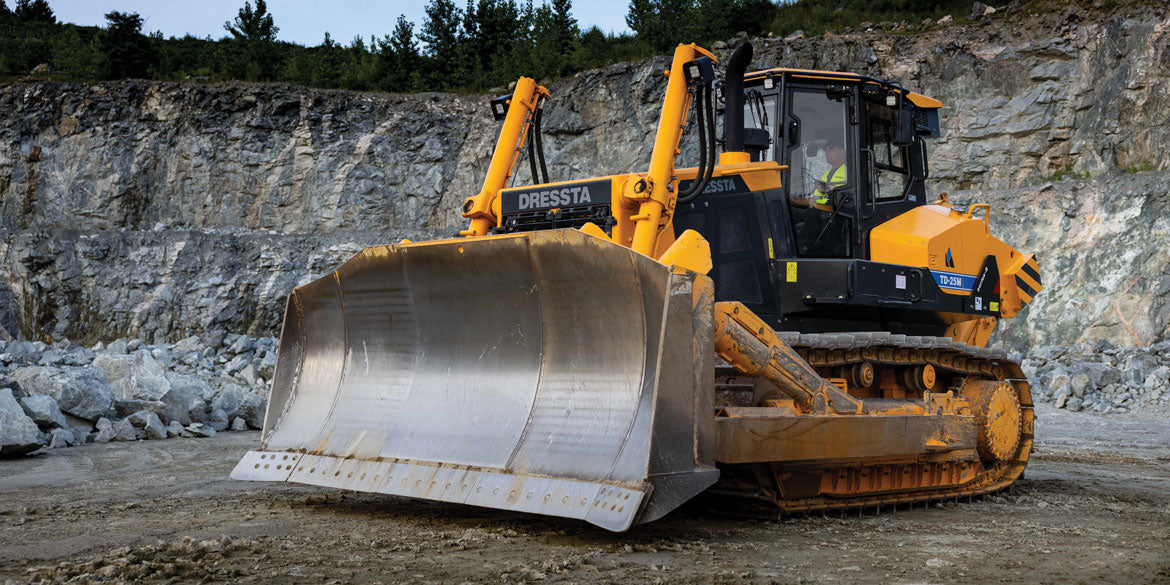

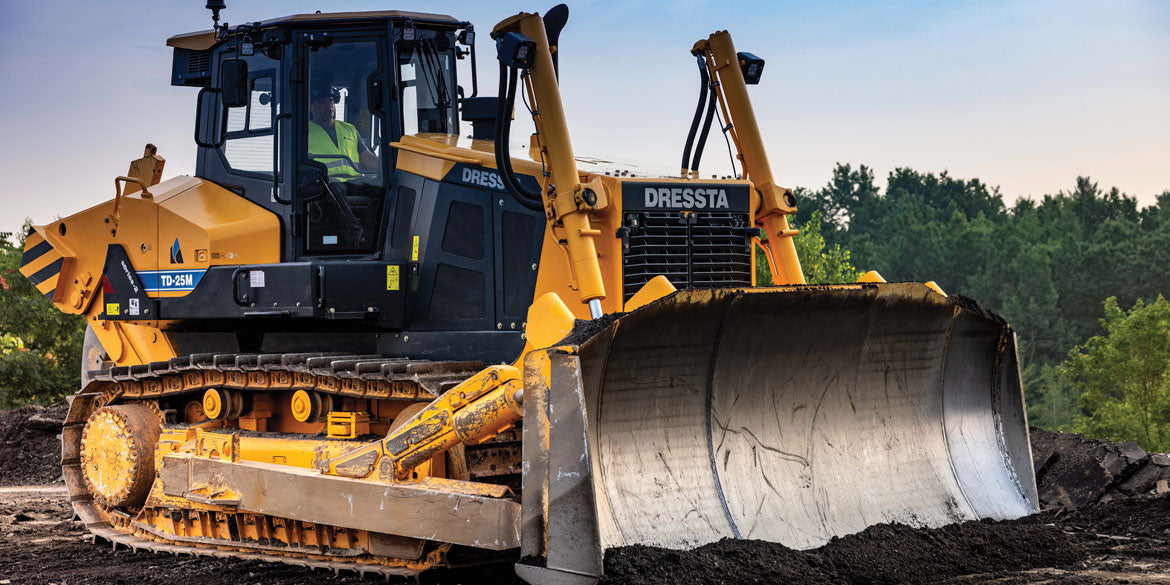

The LiuGong TD-25 Series is the first of our heavy-duty crawler dozer range, starting with a net flywheel power of 375 hp (280 kW) and an operating weight of 41.5t. The machines are built to excel in heavy mining, coal and construction projects, incorporating advanced technologies and components for optimal performance.

Engine

Make and model

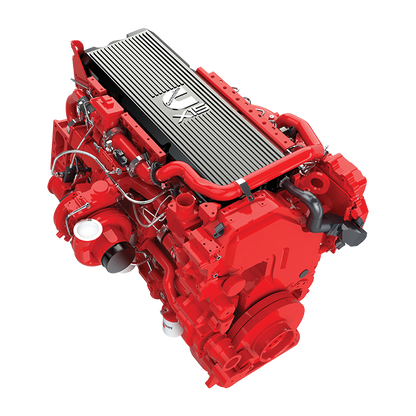

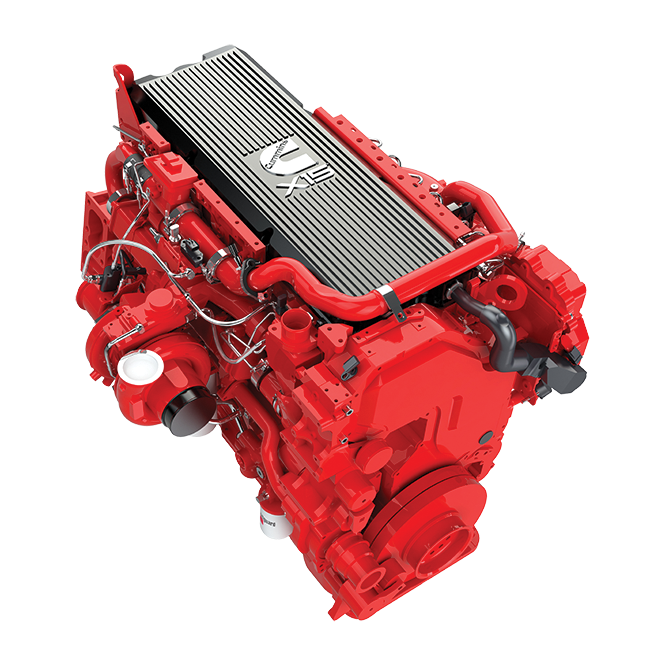

Cummins X15
Net Power
370 hp
Rated Speed
2,000 rpm
Max Torque
1600 lb-ft
Emissions
Tier 4 Final

Operating Specifications

Operating Weight
90,940 lbs
Ground pressure
14.3 psi (98.6 kPa)

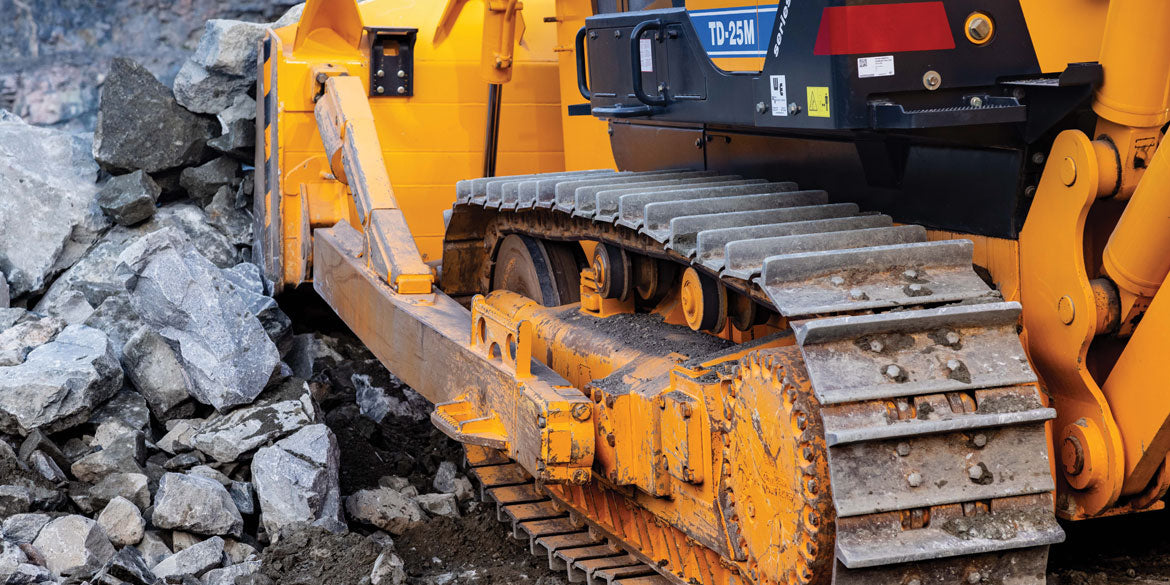

Track shoe width
22 in (560 mm)
Track Length on Ground
10 ft 9 in
Maximum Drawbar Pull
178,498 lbf

Dimensions

Overall Height
12 ft 3 in
Ground clearance
22.6 in (576 mm)
Width over track
8 ft 10 in (2700 mm)
Track Gauge
7 ft
Overall length, base machine
16 ft 7 in (5070 mm)

Rental

Daily: $1,795
Weekly: $5,900
Monthly: $17,500
