AB480J Plus Articulating Boom Lifts

AB480J Plus Articulating Boom Lifts

SINOBOOM
$99,999,999.00
$99,999,999.00
Please contact us for current pricing and availability: Buy

In Stock

View full details

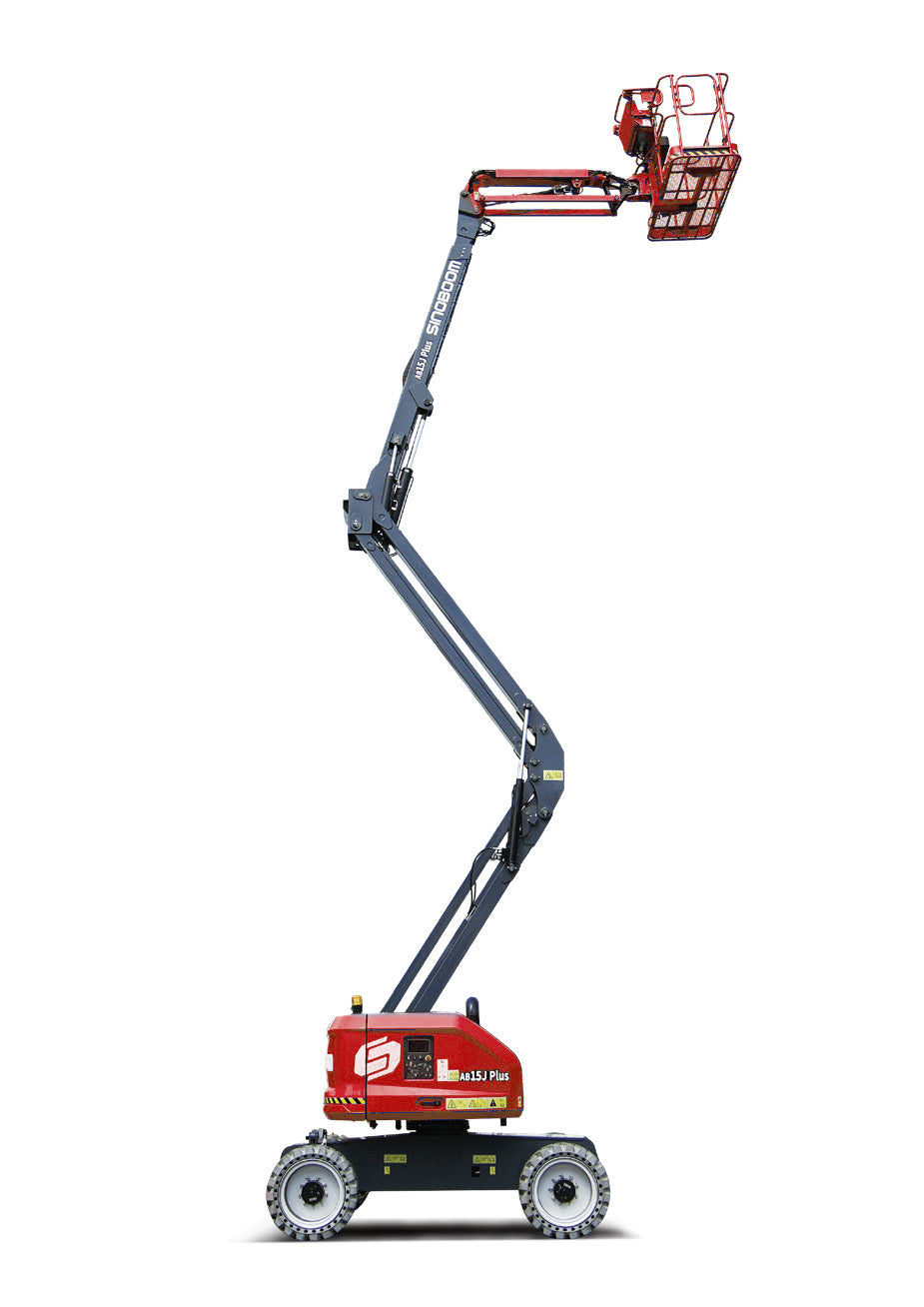

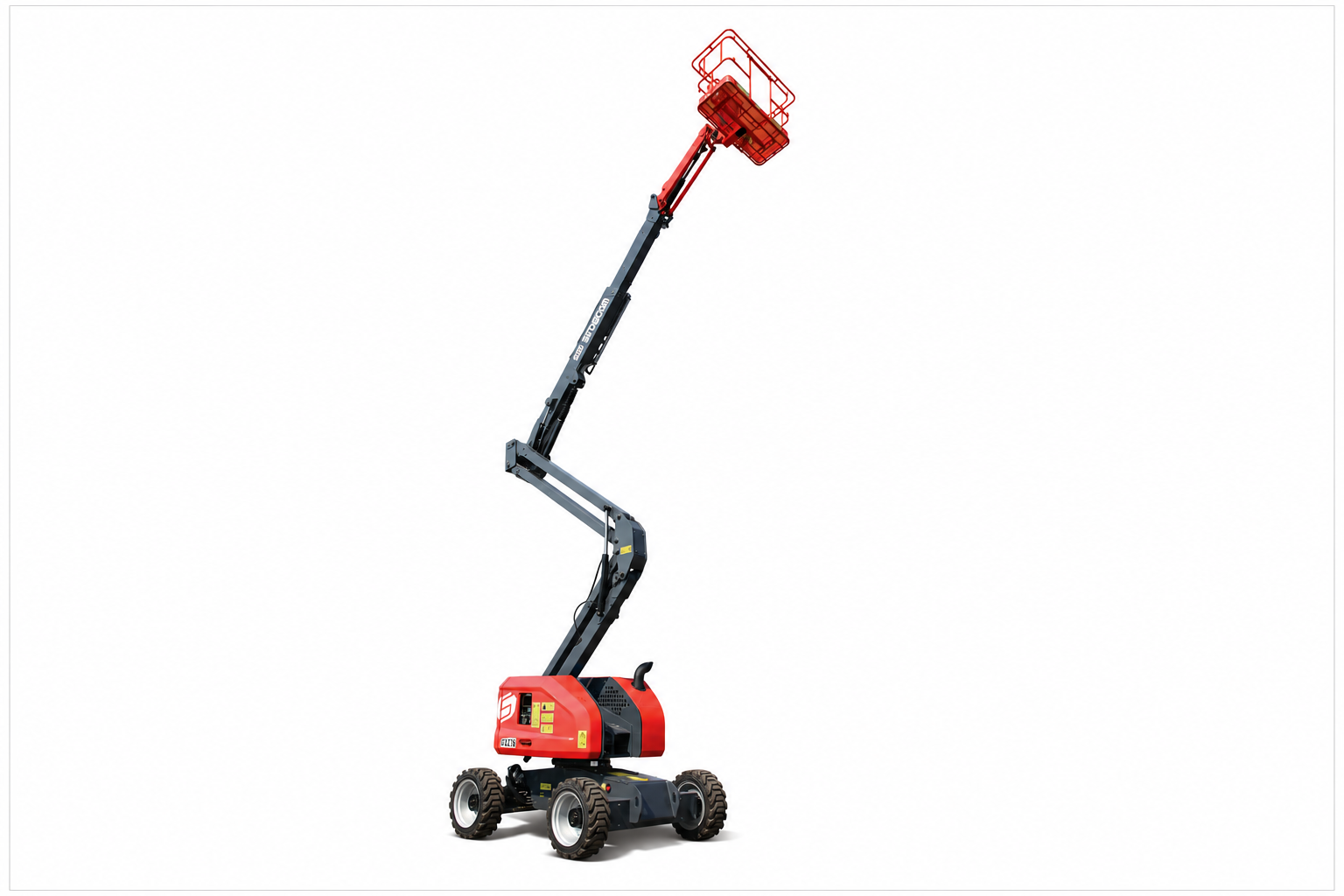

The AB480J Plus articulating boom lift delivers a 54' 3" working height, 27' 11" horizontal outreach, and 661 lb platform capacity for a wide range of construction, maintenance, and industrial applications. Equipped with a 58 hp Kubota Tier 4 Final engine, full-time active oscillating front axle, and 4WD capability, it provides excellent rough-terrain performance and jobsite mobility. Advanced hydraulic controls, a spacious platform, and industry-leading safety features ensure reliable productivity, operator comfort, and efficient operation both indoors and outdoors.

Dimensions

Max Platform Height
48’3″
Max Working Height
54’3″
Max Horizontal Extension
27’11”
Length-Stowed
24’7″
Width-Stowed
7’7″
Height-Stowed
7’6″
Wheelbase
7’7″
Ground Clearance
1’3″
Platform Dimensions (LxWxH)
6′ x 2’9″ x 3’7″

Performance

Platform Capacity (Unrestricted)
661 lb
Platform Occupants
2 persons
Turntable Rotation
360°/Continuous
Platform Rotation Angle
180 degrees
Drive Speed-Stowed
2.8mph
Drive Speed-Raised
0.6 mph
Gradeability
40%
Turning Radius (Inside)
6′
Turning Radius (Outside)
15’8″
Turntable Tailswing
4″
Tilt Rating
5°
Tires Spec/Type
33×12D610 /foam-filled; 33×12-20 /solid

Power

Drive x Steering
4WD x 2WS
System Voltage
12V DC
Hydraulic Tank Capacity
29.6 gal (24.6 gal (UK)/112 L)
Diesel Tank Capacity
14.5 gal (12.1 gal (UK)/55 L)
Engine
43.2kW (58hp)/2400rpm/Model: V2403-CR-Tue4B-SBM-2/Kubota T4f 2.43L
Weight
16,976 lb
Standards Compliance
ANSI/CSA

Rental

Daily: $553

Weekly: $1,169

Monthly: $2,498
