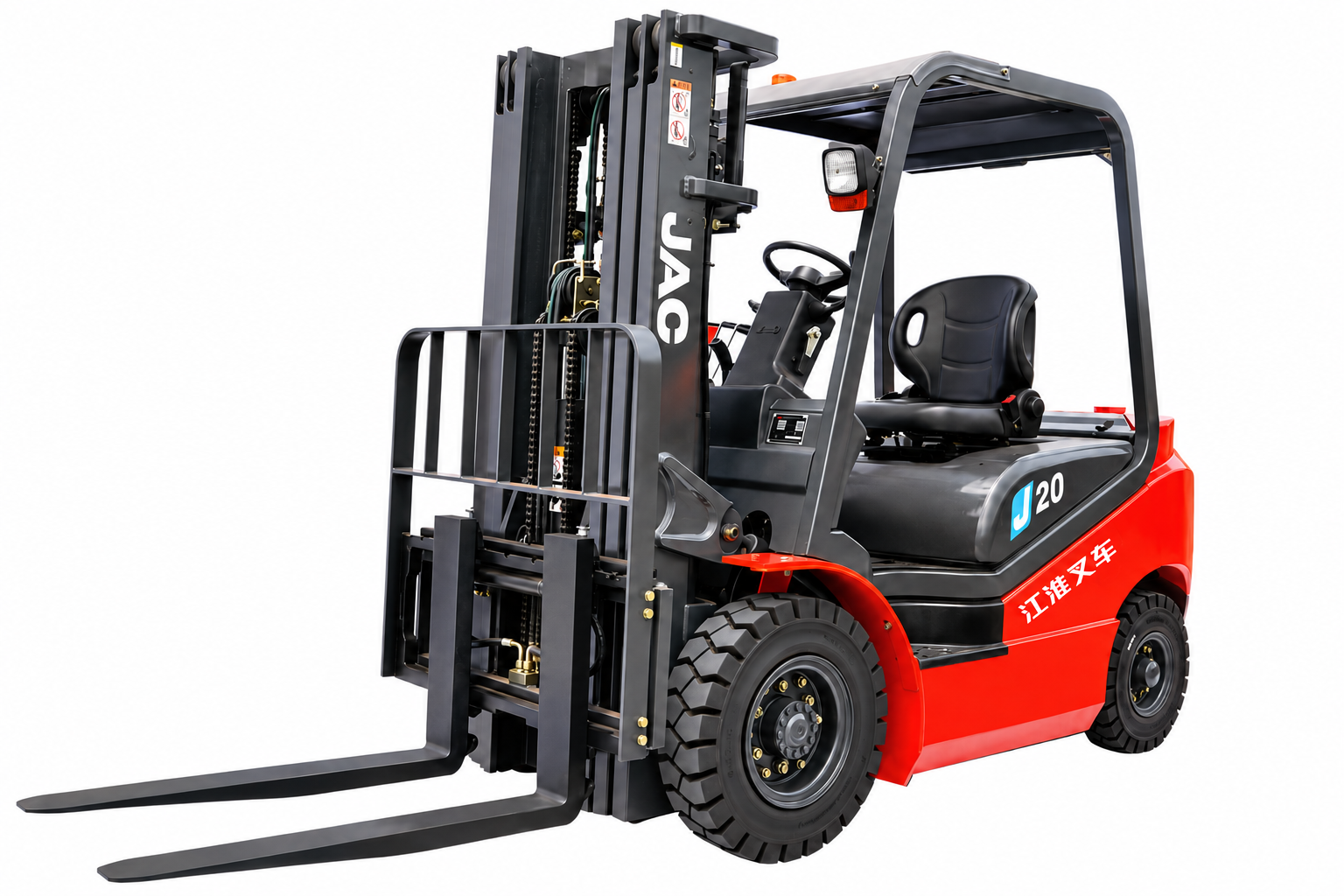

• JAC CPCD20J Diesel / Gas Forklift (4,400 lb)
1 1

JAC CPCD20J Diesel / Gas Forklift (4,400 lb)

JAC CPCD20J Diesel / Gas Forklift (4,400 lb)

JAC

Please contact us for current pricing and availability

View full details

The JAC CPCD20J delivers strong and efficient performance with over 23 kN of traction, more than 20% gradeability, and a loaded travel speed of over 19 km/h. Its load-sensing hydraulic system reduces fuel consumption, while the low center of gravity provides excellent stability. IP65-rated waterproof electrical connectors, a low-noise and low-vibration design, wide visibility, a spacious adjustable operator compartment, and easy-to-use controls improve safety and comfort. For convenient servicing, the engine hood opens up to 80 degrees, providing quick access to key maintenance components.
4,400 lb Capacity ｜ 118 in Lift Height ｜ 42 in Forks ｜ 11.8 mph Travel Speed

Dimensions

Overall Length, without Forks
99.8 in (2,535 mm)
Overall Width
45.3 in (1,150 mm)
Mast Lowered Height
78.5 in (1,995 mm)
Maximum Height, with Backrest
158.3 in (4,020 mm)
Overhead Guard Height
82.3 in (2,090 mm)
Fork Size (L × W × T)
42.1 × 4.8 × 1.6 in (1,070 × 122 × 40 mm)
Free Lift Height
7.5 in (190 mm)
Ground Clearance
4.5 in (115 mm)
Minimum Turning Radius
88.4 in (2,245 mm)
Minimum Stacking Aisle Width
158.3 in (4,021 mm)

Performance & Configuration

Load Capacity
4,409 lbs (2,000 kg)
Standard Lift Height
118.1 in (3,000 mm)
Load Center
19.7 in (500 mm)
Power Type
Diesel
Maximum Travel Speed, Loaded
11.8 mph (19 km/h)
Maximum Lifting Speed, Loaded
20.9 in/s (530 mm/s)
Maximum Gradeability
20%
Engine
AK-C240PKJ-30
Engine Power
46–49 hp (34.3–36.5 kW)
Engine Displacement
2.369 L
Number of Cylinders
4
Fuel Tank Capacity
15.9 gal (60 L)
Fuel Tank Capacity
15.9 gal (60 L)
Tire Type
Pneumatic
Service Weight
7,496 lbs (3,400 kg)
Mast Tilt, Forward/Backward
6°/12°
Optional Mast
Multiple lift heights available

Rental

Daily: $234

Weekly: $563

Monthly: $1,290

Request a Quote

Requesting a quote for: JAC CPCD20J Diesel / Gas Forklift (4,400 lb)
