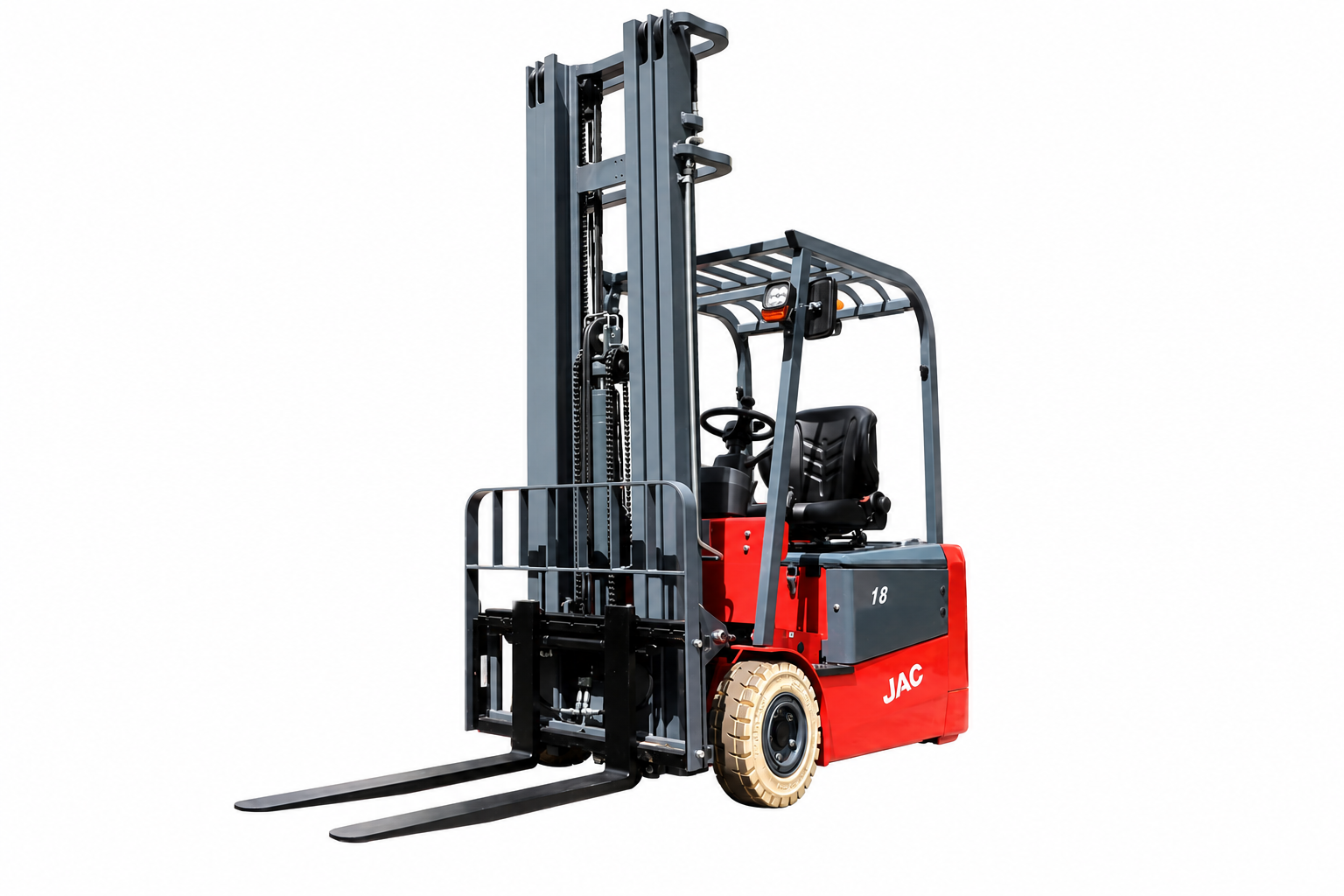

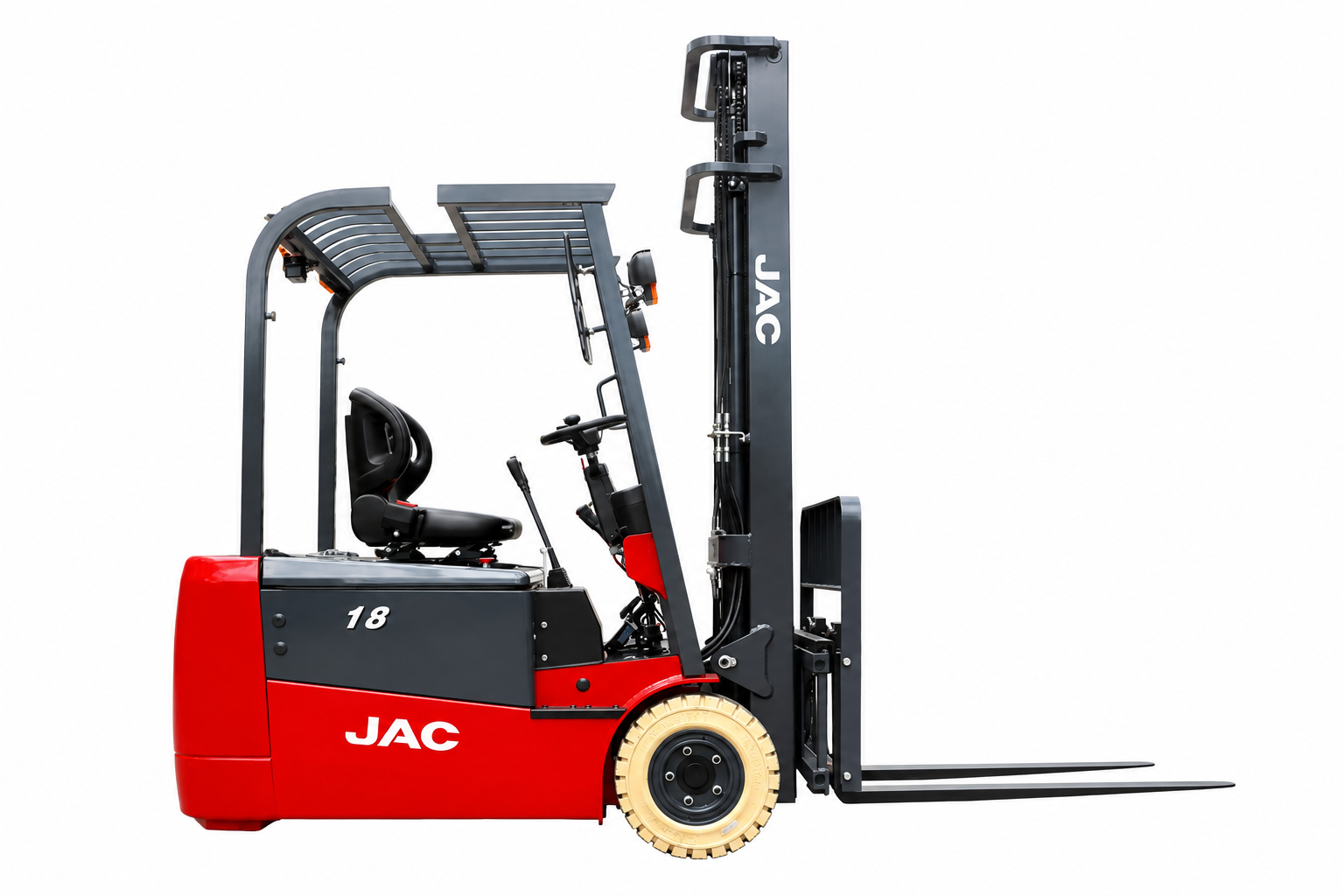

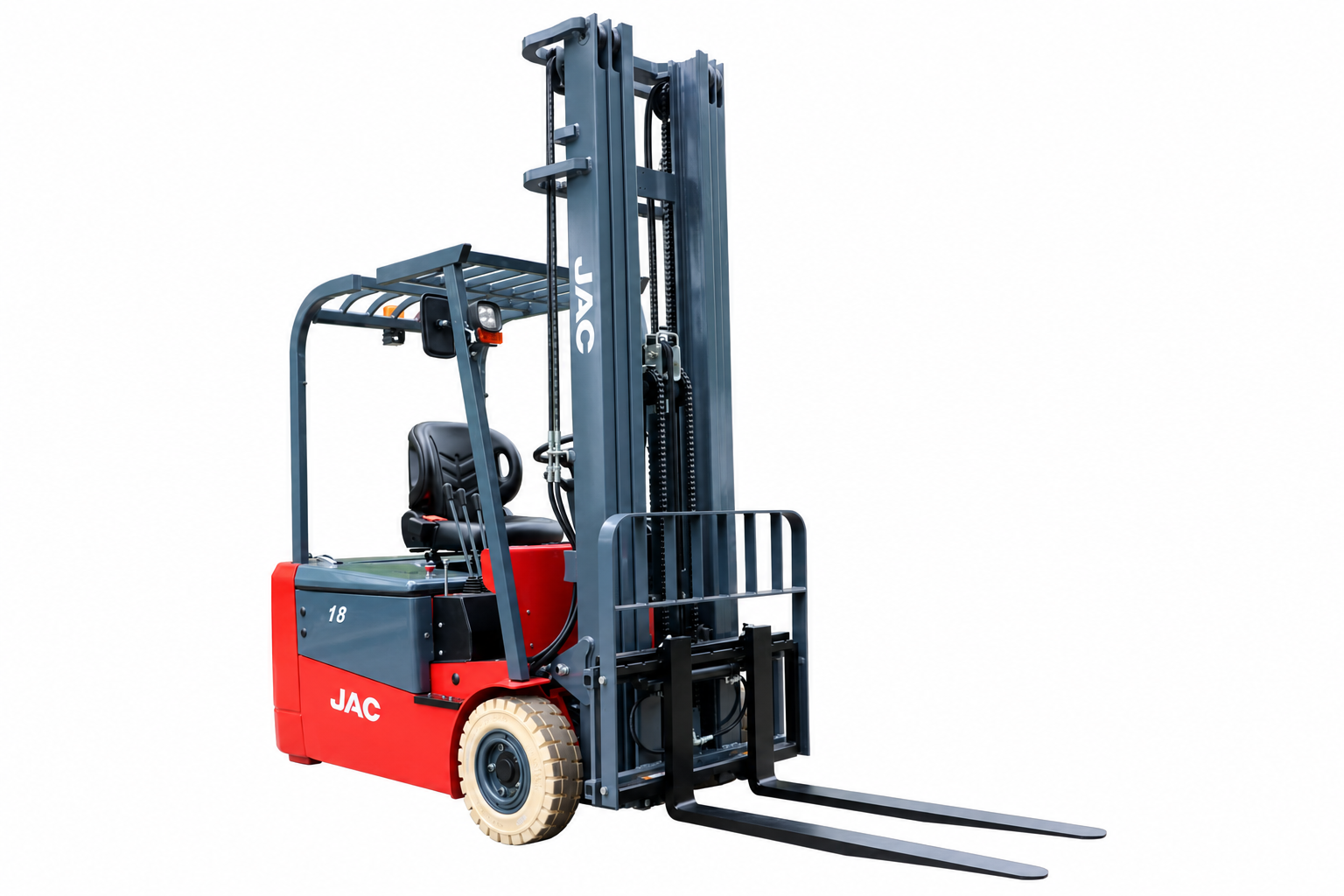

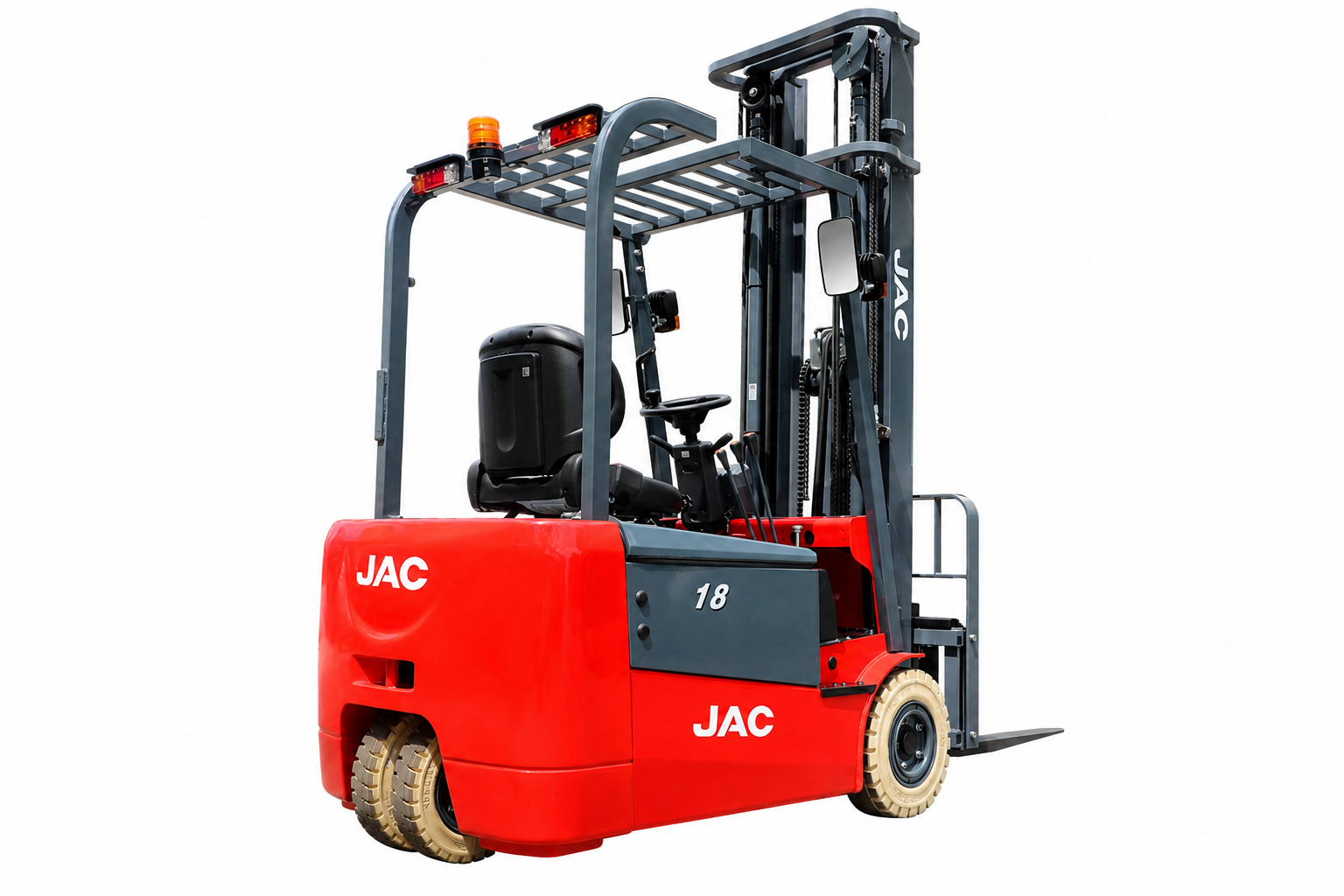

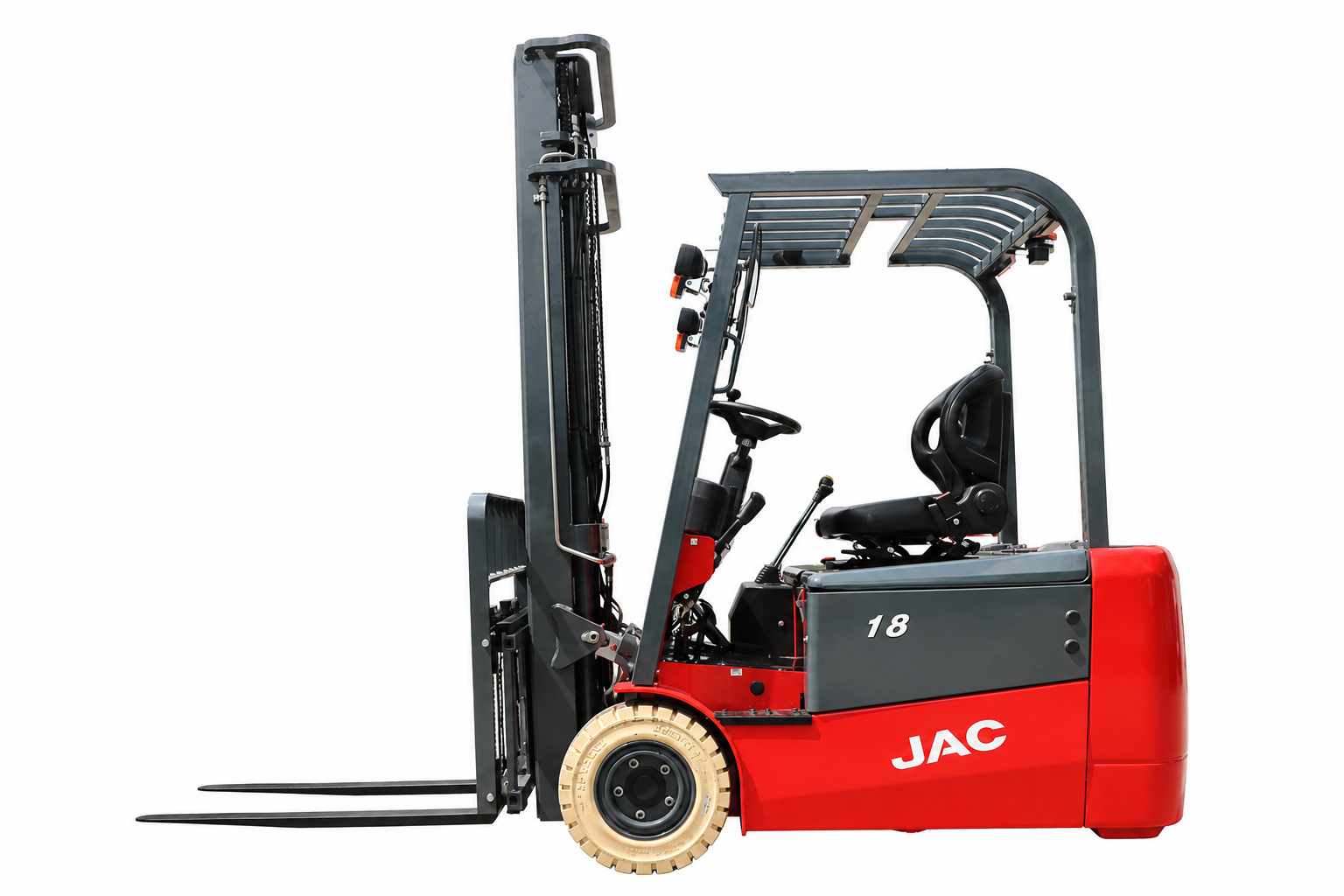

The JAC CPD18SA3 Electric Forklift offers a 4,000 lb load capacity and a 118 in lift height for efficient warehouse and industrial material handling. Powered by a 48V/500Ah battery with responsive AC controls, it delivers reliable performance, smooth operation, and excellent maneuverability in confined work areas.
4,000 lb Capacity ｜ 118 in Lift Height ｜ 48V/500Ah Battery ｜ 8.7 mph Travel Speed
Dimensions
Overall Length, without Forks
76 in (1,930 mm)
Overall Width
42 in (1,066 mm)
Overhead Guard Height
77.2 in (1,960 mm)
Fork Size (L × W × T)
42.1 × 3.9 × 1.6 in (1,070 × 100 × 40 mm)
Free Lift Height
5.9 in (150 mm)
Minimum Ground Clearance
4 in (102 mm)
Minimum Turning Radius
61 in (1,550 mm)
Minimum Aisle Width
120.9 in (3,070 mm)
Performance & Configuration
Load Capacity
3,968 lbs (1,800 kg)
Maximum Lift Height
118.1 in (3,000 mm)
Load Center
19.7 in (500 mm)
Maximum Travel Speed, Loaded
8.7 mph (14 km/h)
Maximum Lifting Speed, Loaded
10.2 in/s (260 mm/s)
Maximum Gradeability
15%
Battery
48V/500Ah
Travel Motors
4.8 kW × 2
Lifting Motor
10 kW
Control System
AC
Service Weight
7,187 lbs (3,260 kg)
Mast Tilt, Forward/Backward
6.5°/6.5°
Rental
For Sale Only — Not Available for Rent.
Request a Quote
Requesting a quote for:
JAC CPD18SA3 3-Wheel Electric Forklift (4,000 lb)
