• JAC CPD30L Lithium Electric Forklift
1 1

JAC CPD30L Lithium Electric Forklift

JAC CPD30L Lithium Electric Forklift

JAC
$40,000.00
$40,000.00
Reference Price Only. Please Contact for Quote:: Buy

In Stock

View full details

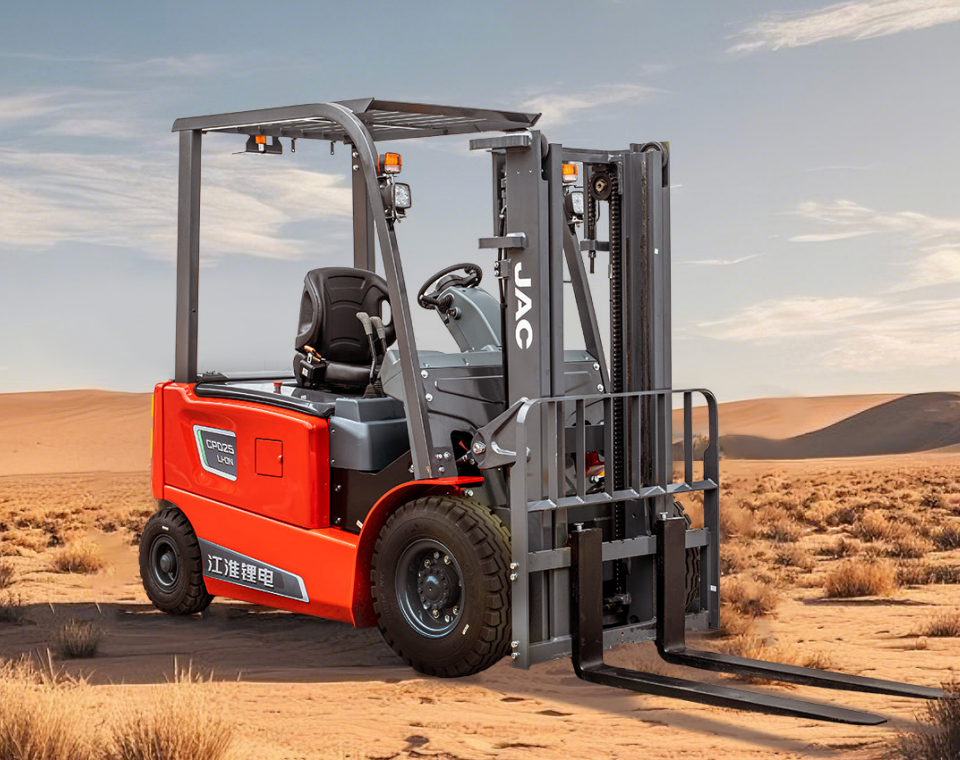

The JAC CPD30L Electric Forklift delivers a 6,600 lb lifting capacity and a 118 in lift height for demanding warehouse and industrial applications. Powered by an 80V lithium-ion battery, it combines strong performance, responsive AC controls, and reliable operation for efficient daily material handling.
6,600 lb Capacity ｜ 118 in Lift Height ｜ 80V Lithium Battery ｜ 89 in Turning Radius

Dimensions

Overall Length, with Forks
142.7–144.1 in (3,625–3,660 mm)
Overall Width
49.6 in (1,260 mm)
Mast Lowered Height
81.7 in (2,075 mm)
Maximum Mast Height
165.7 in (4,210 mm)
Overhead Guard Height
85.8 in (2,180 mm)
Fork Size, Option 1 (L × W × T)
42.1 × 4.9 × 1.8 in (1,070 × 125 × 45 mm)
Fork Size, Option 2 (L × W × T)
42.1 × 4.9 × 2.0 in (1,070 × 125 × 50 mm)
Adjustable Fork Spacing
9.8–43.3 in (250–1,100 mm)
Ground Clearance
5.1 in (130 mm)
Minimum Turning Radius
89 in (2,260 mm)
Minimum Aisle Width
154.7–155.9 in (3,929–3,959 mm)

Performance & Configuration

Load Capacity
6,600 lbs (3,000 kg)
Standard Lift Height
118.1 in (3,000 mm)
Load Center
19.7 in (500 mm)
Power Type
Lithium Battery
Battery
80V/202Ah
Operator Type
Seated
Travel Speed, Laden/Unladen
9.3/9.3 mph (15/15 km/h)
Lifting Speed, Laden/Unladen
13.0/17.3 in/s (330/440 mm/s)
Gradeability, Laden/Unladen
17%/26%
Drive Motor
17 kW AC
Lifting Motor
22 kW AC
Service Weight
9,998 lbs (4,535 kg)
Tire Type, Front/Rear
Pneumatic/Solid
Mast Tilt, Forward/Backward
6°/10°

Rental

Daily: $358

Weekly: $715

Monthly: $2,350

Request a Quote

Requesting a quote for: JAC CPD30L Lithium Electric Forklift
