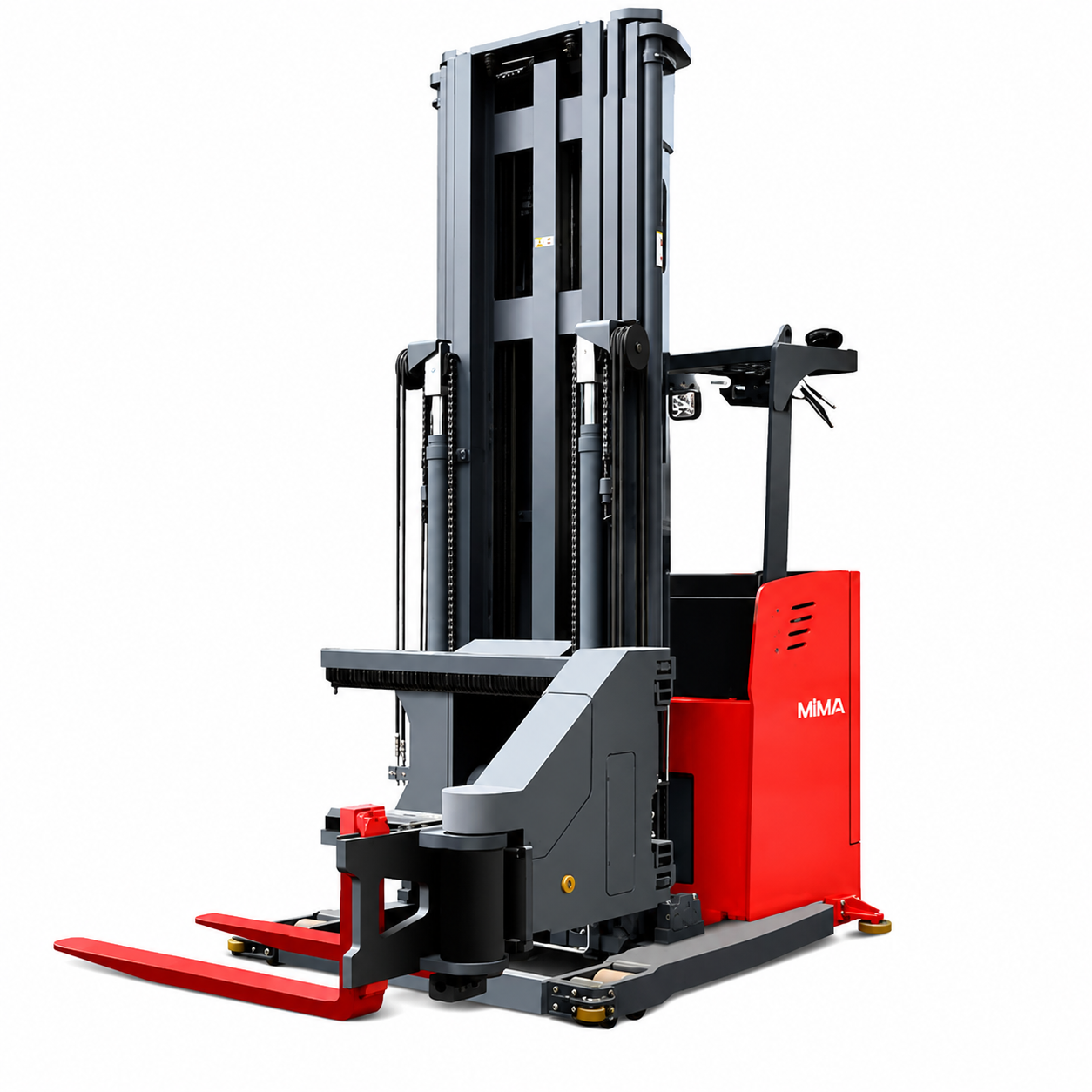

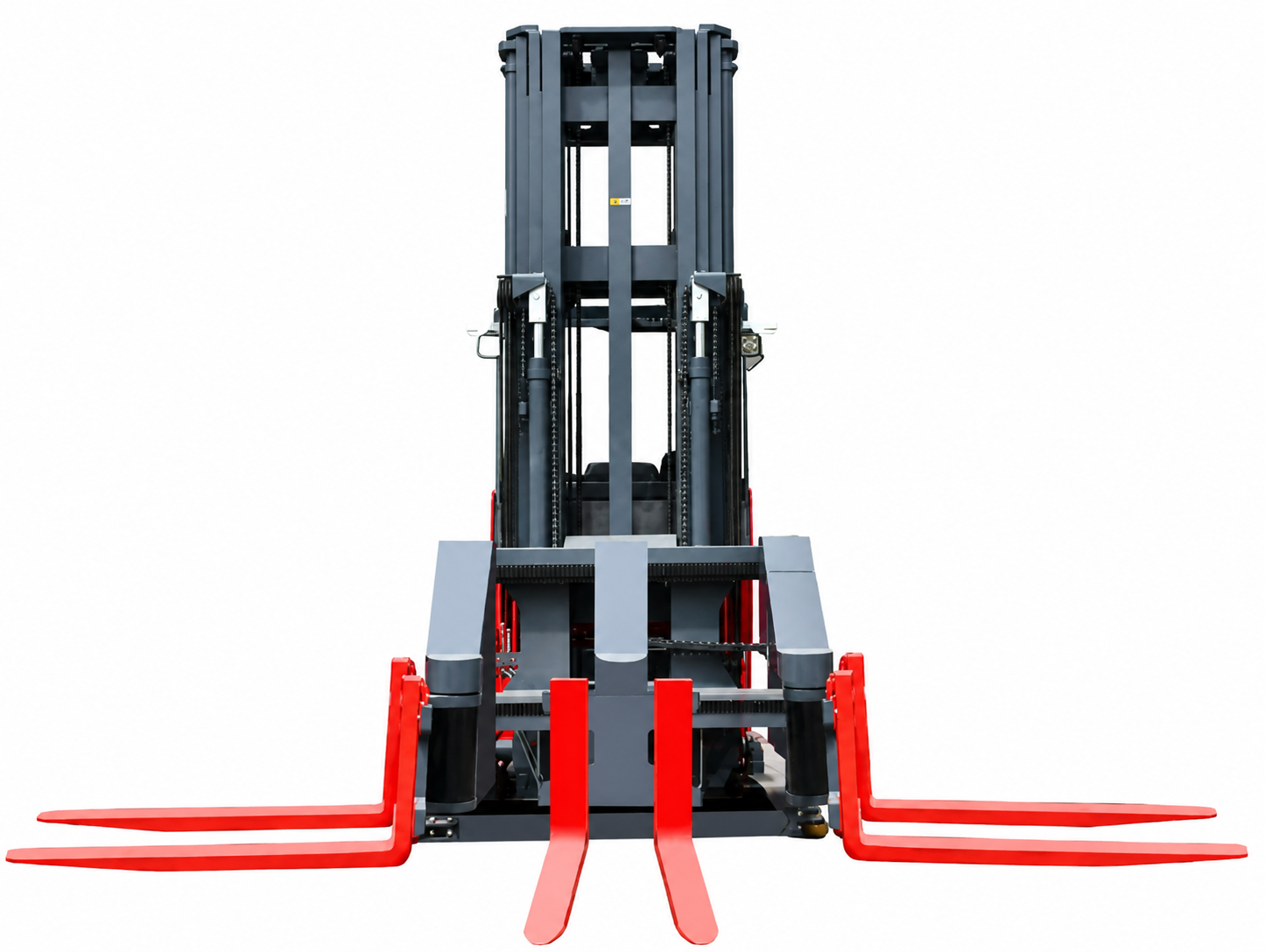

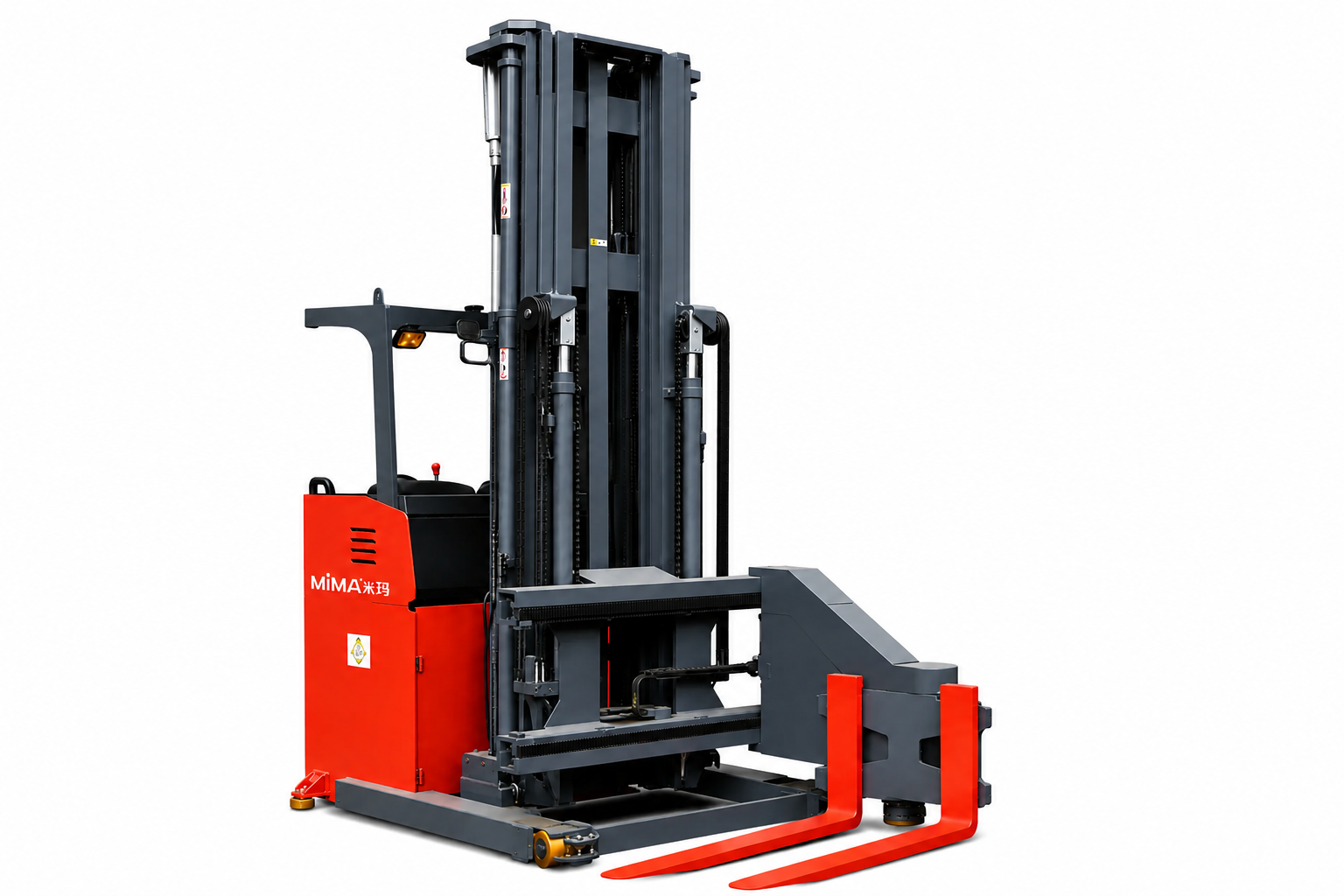

MiMA MC Series 3-Way Pallet Stacker (1.2T / 1.6T)
MiMA MC Series 3-Way Pallet Stacker (1.2T / 1.6T)
Regular price
$999,999.00
Sale price
$999,999.00
Unit price
/
per
In Stock
-
Call us at (516) 493-9951
Mon - Fri|8AM - 5PM EST -
info@cheryequipment.com
Customer Service Contact Email

The MiMA MC Series Man-Down 3-Way Pallet Stacker is designed for high-density warehouse storage and narrow aisle operations. With three-way fork rotation capability, it enables efficient stacking, retrieval, and handling without turning the truck body, maximizing storage capacity and improving warehouse productivity. Its compact design, excellent visibility, and high lift performance make it an ideal solution for modern distribution centers and logistics facilities.
Overall Dimensions
Overall Length
115.7–118.9 in (2,940–3,020 mm)
Overall Width
58.1–62.0 in (1,475–1,575 mm)
Fork Dimensions
43.3–47.2 × 4.9 × 2.0 in (1,100–1,200 × 125 × 50 mm)
Turning Radius
75.2–78.0 in (1,910–1,980 mm)
Minimum Aisle Width
59.1–63.0 in (1.5–1.6 m)
Technical Specifications
Load Capacity
2,645–3,527 lbs (1,200–1,600 kg)
Load Center Distance
21.7–23.6 in (550–600 mm)
Power Type
Battery Electric
Drive Motor
5.5 kW AC
Lift Motor
15 kW AC
Truck Type
Man-Down 3-Way Pallet Stacker
Work Range
Standard Lift Height
29.5–32.8 ft (9–10 m)
Narrow Aisle Operation
Three-Way Fork Rotation
High-Density Warehouse Storage
Stacking, Picking & Inventory Management
Rental
Daily: ---
Weekly: ---
Monthly: ---
