SPS0608HD Scissor Lift

SPS0608HD Scissor Lift

SANY
$999,999.00
$999,999.00
Please contact us for current pricing and availability: Buy

In Stock

View full details

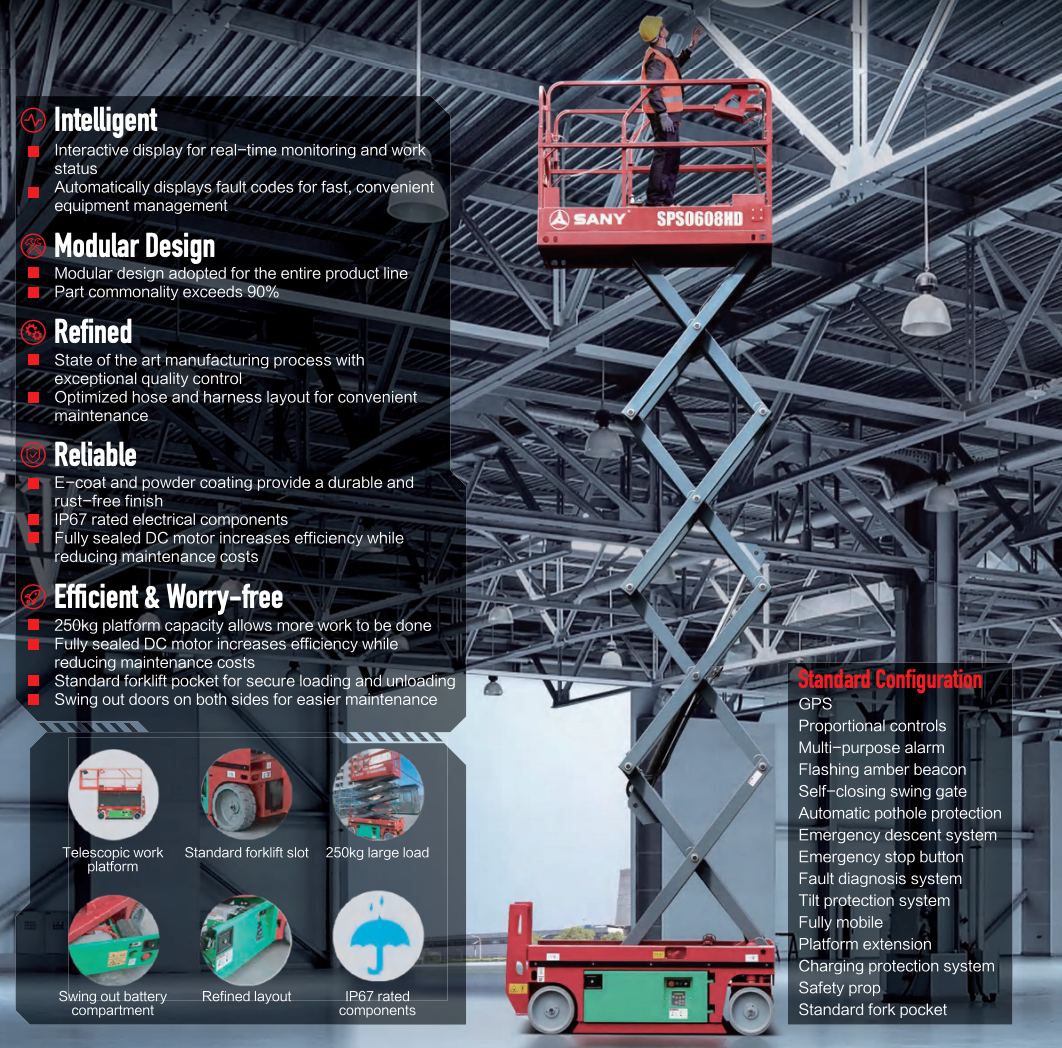

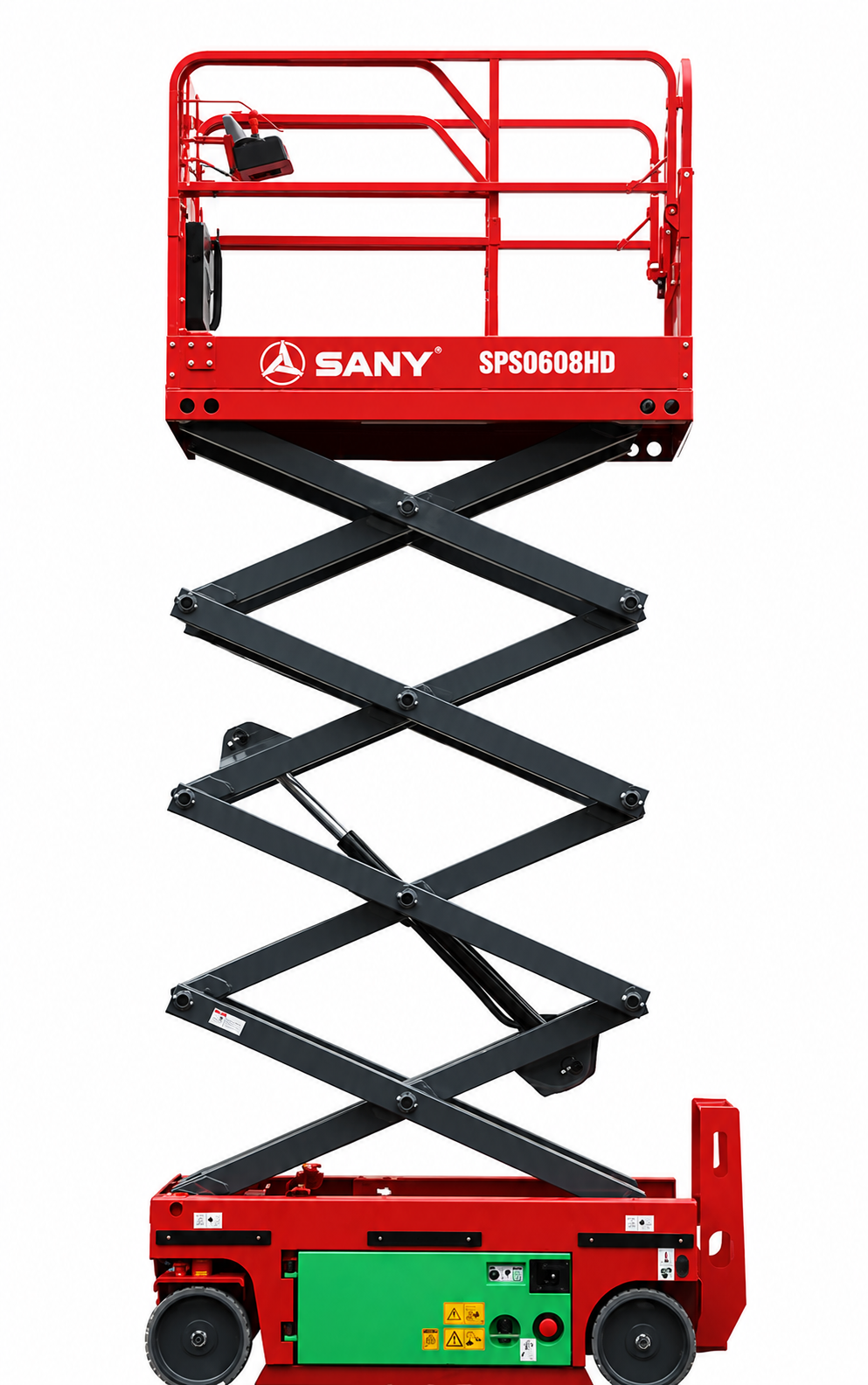

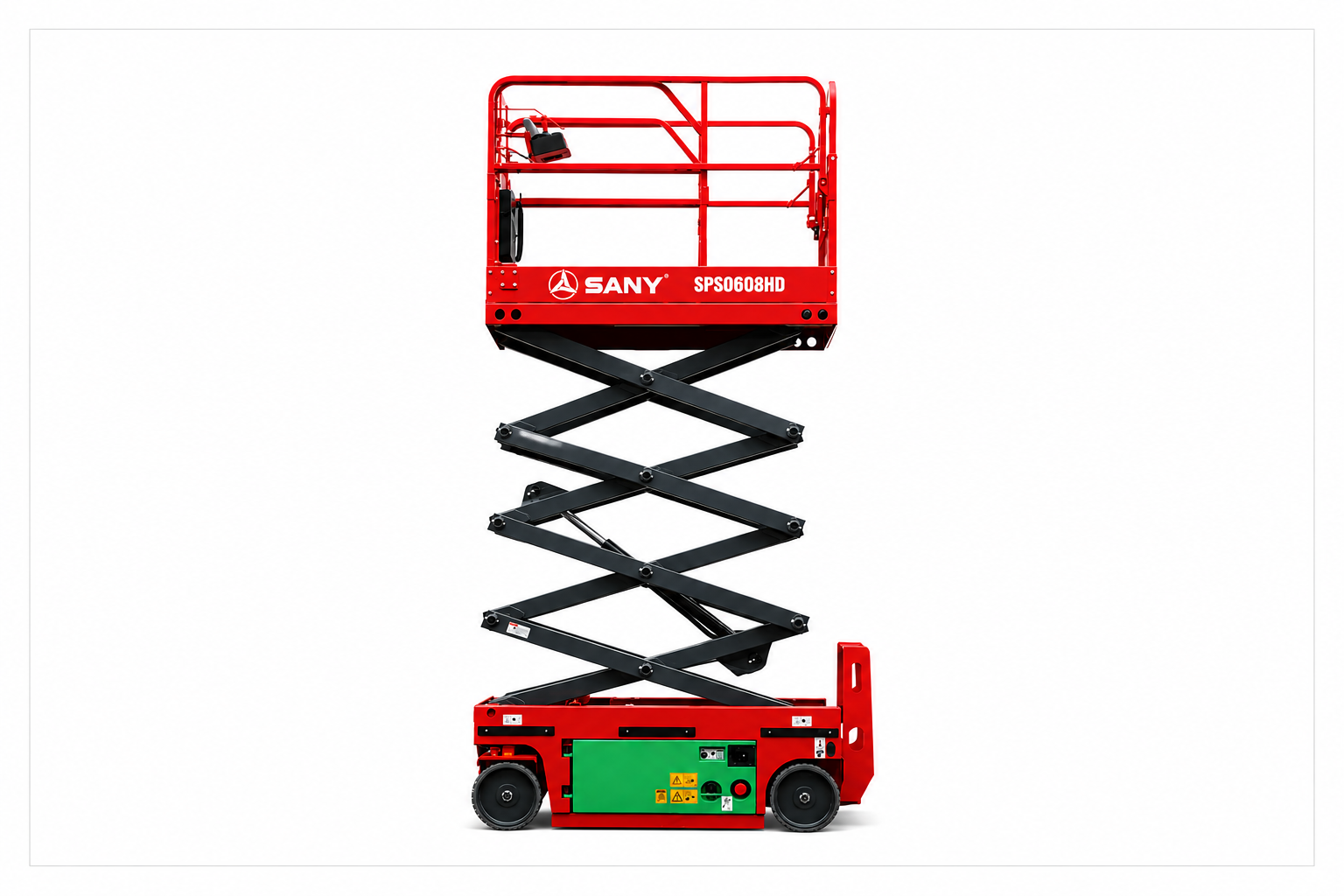

The SANY SPS0608HD Electric Scissor Lift is a compact and efficient aerial work platform designed for indoor and outdoor maintenance, installation, and warehouse applications. With a 550 lb platform capacity, 25 ft 7 in maximum working height, and zero-emission electric drive, it delivers reliable lifting performance, smooth maneuverability, and enhanced operator safety in confined work environments.

Overall Dimensions

Machine Weight
2,998 lb (1,360 kg)
Max. Working Height
25 ft 7 in (7.80 m)
Max. Platform Height
19 ft (5.80 m)
Overall Length
6 ft 2 in (1.88 m)
Overall Width
2 ft 8 in (0.81 m)
Machine Height
7 ft 1 in (2.15 m)
Platform Dimensions (L × W × H)
5 ft 7 in × 2 ft 5 in × 3 ft 8 in (1.71 × 0.74 × 1.12 m)
Platform Extension Length
1 ft 11 in (0.60 m)
Wheelbase
4 ft 6 in (1.38 m)
Ground Clearance
3.3 in (85 mm)

Technical Specifications

Platform Capacity
550 lb (250 kg)
Extension Deck Capacity
265 lb (120 kg)
Drive Speed (Stowed/Raised)
1.9 / 0.5 mph (3 / 0.8 km/h)
Turning Radius (Inside/Outside)
1 ft 4 in / 5 ft 7 in (0.4 / 1.7 m)
Lifting Motor
3.5 kW
Gradeability
25%
Tilt Sensor Activation (Side/Front)
1.5° / 3°
Tires
12.7 × 4 in (Ø323 × 100 mm)

Work Range

Max. Working Height
25 ft 7 in (7.80 m)
Max. Platform Height
19 ft (5.80 m)
Platform Extension Length
1 ft 11 in (0.60 m)
Platform Capacity
550 lb (250 kg)

Rental

Daily: $188

Weekly: $373

Monthly: $634
