SMG200AWD Motor Graders

SMG200AWD Motor Graders

Regular price $410,000.00
Sale price $410,000.00
Please contact us for current pricing and availability: Buy

In Stock

View full details

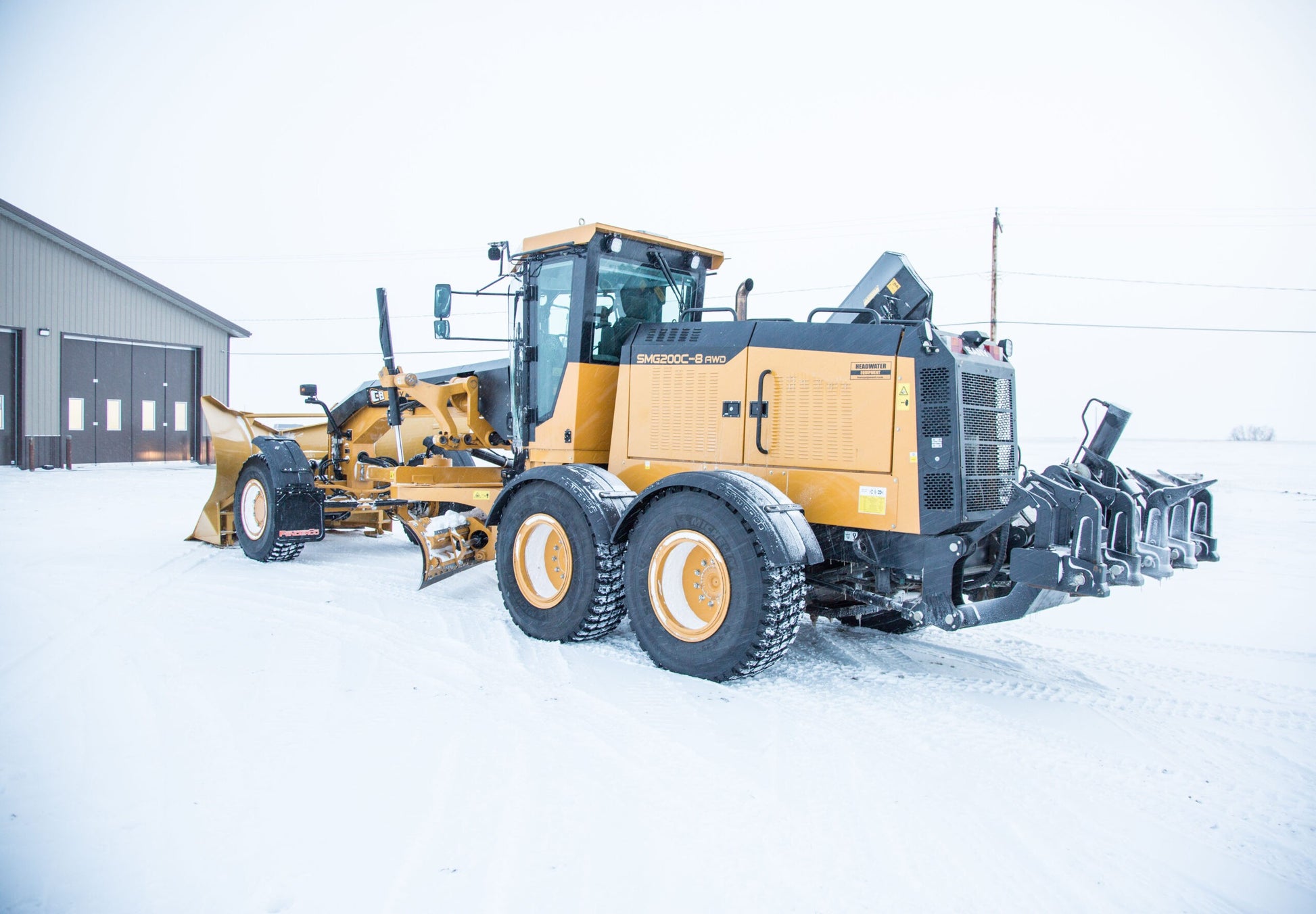

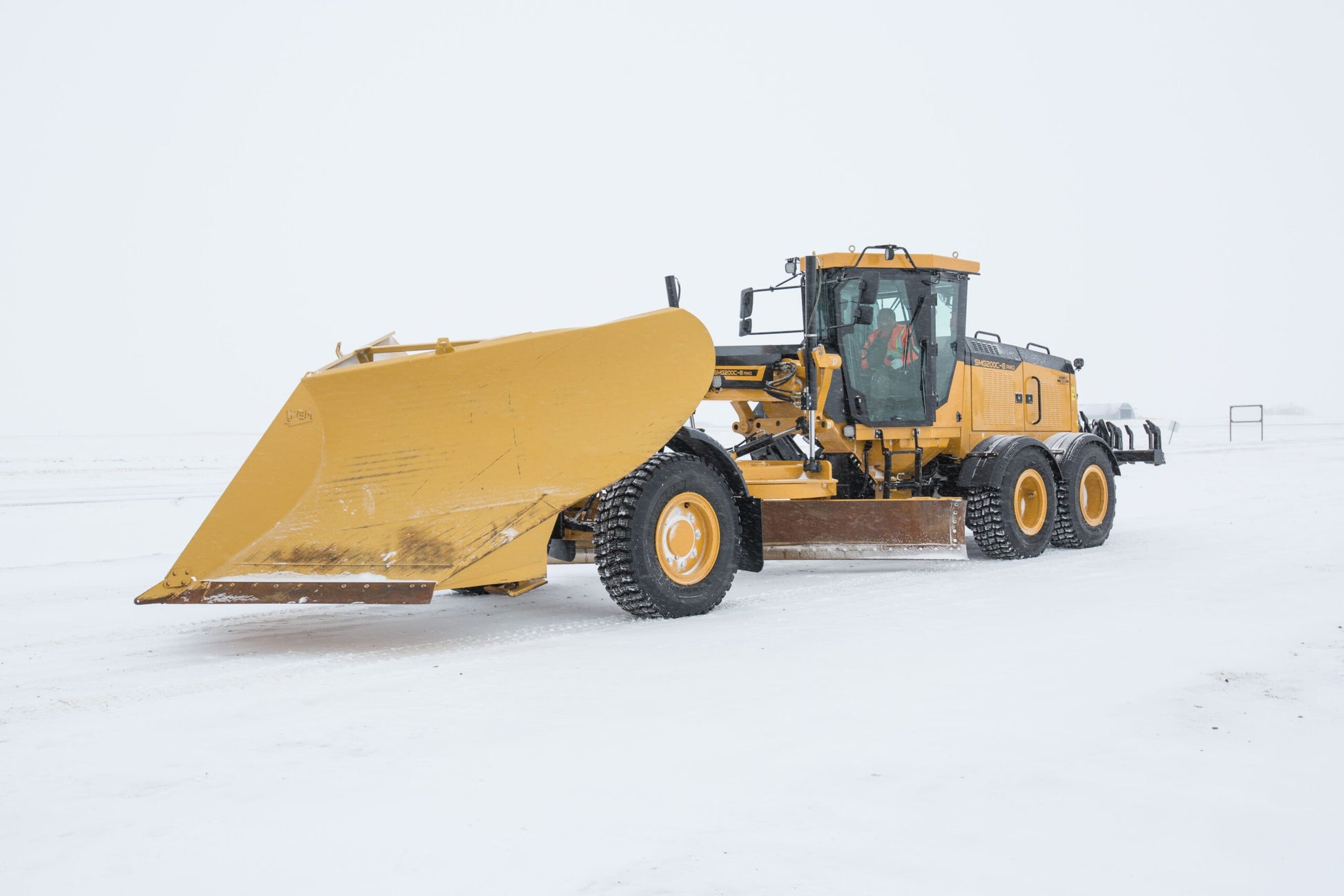

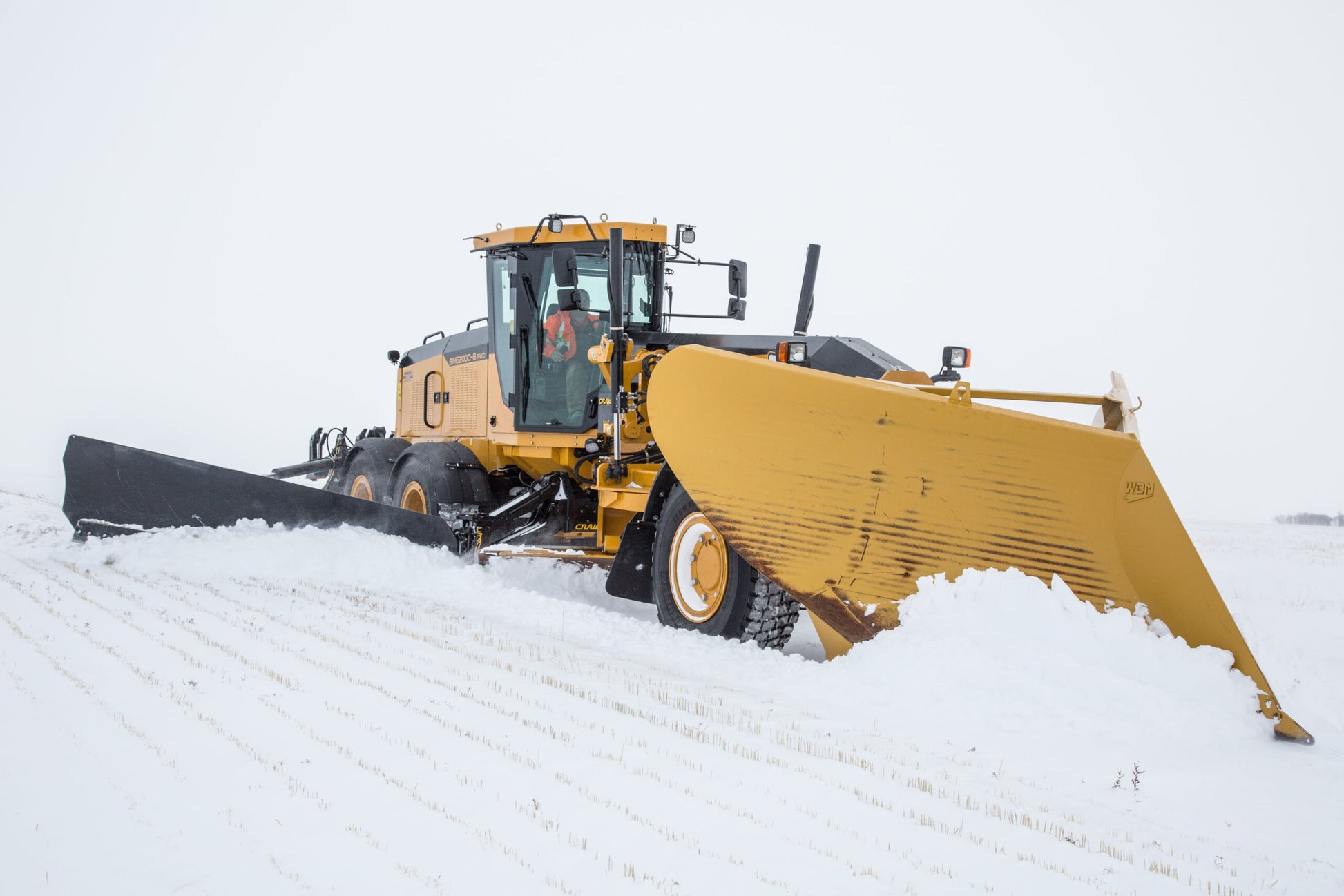

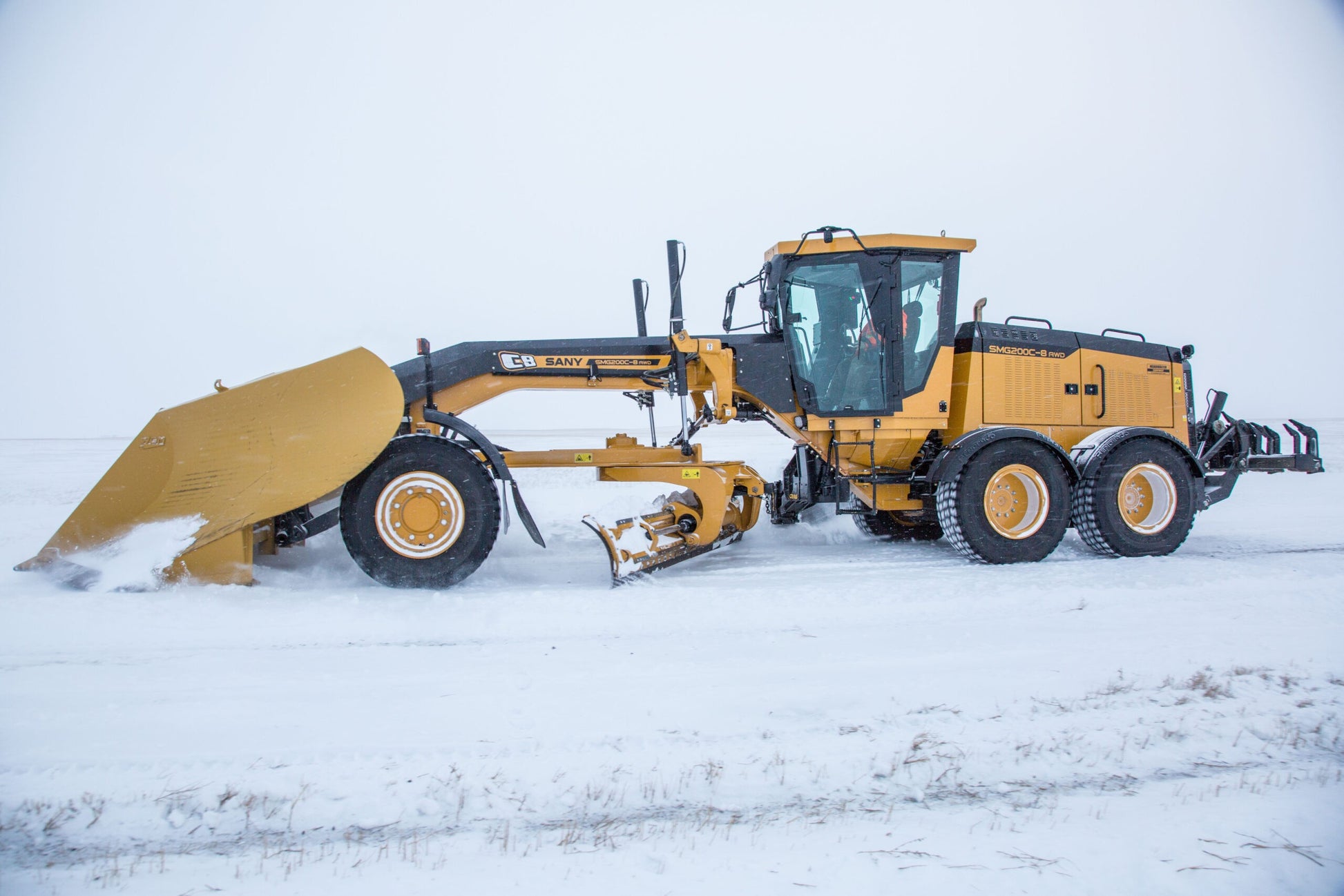

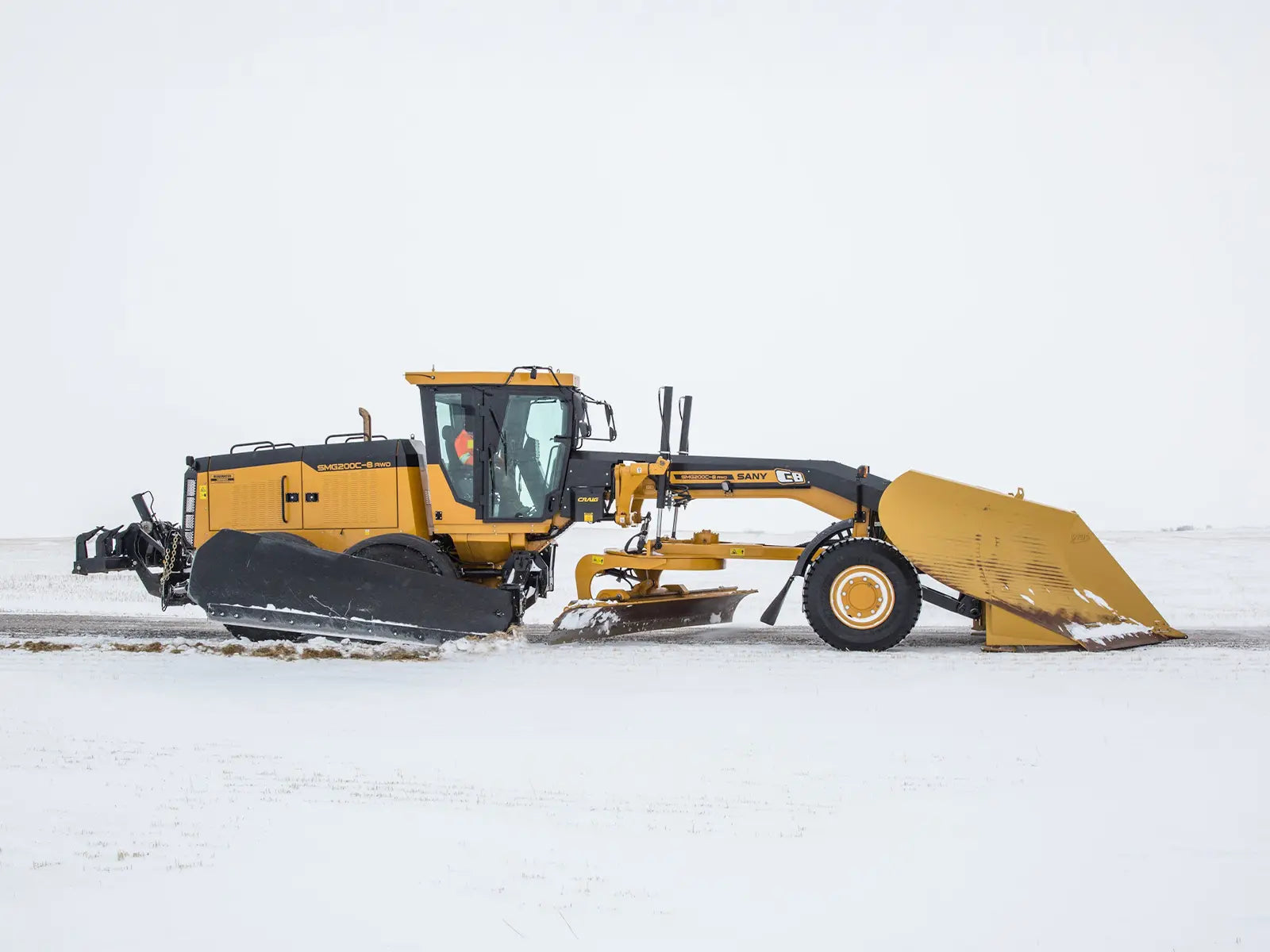

The SANY SMG200 Motor Grader delivers the power and precision needed for road maintenance, grading, ditching, and infrastructure projects. Powered by a 253 HP Cummins QSL9 engine and weighing 45,768 lbs, it features a 14 ft moldboard, electronic hydraulic joystick controls, and a low-maintenance circle bearing for smooth, accurate grading. Standard equipment includes a rear scarifier, push block, work lights, heated mirrors, and front auxiliary hydraulics, while the spacious cab provides excellent visibility and operator comfort throughout the workday.

Overall Dimensions

Overall Length
34' 8" (10,572 mm)
Width Over Tires
8' 11" (2,725 mm)
Height Over ROPS
11' 6" (3,498 mm)
Turning Radius
24' 7" (7.5 m)

Technical Specifications

Operating Weight
45,768 lbs (20,760 kg)
Net Power
253 hp (186 kW)
Engine Displacement
543.1 in³ (8.9 L)
Fuel Capacity
89.8 gal (340 L)
Transmission
8 Forward / 6 Reverse

Working Performance

Moldboard Width
14' (4,270 mm)
Cutting Depth
28.15" (715 mm)
Lift Above Ground
18.9" (480 mm)
Blade Down Pressure
19,925 lbf (88.63 kN)
Frame Articulation
22°
