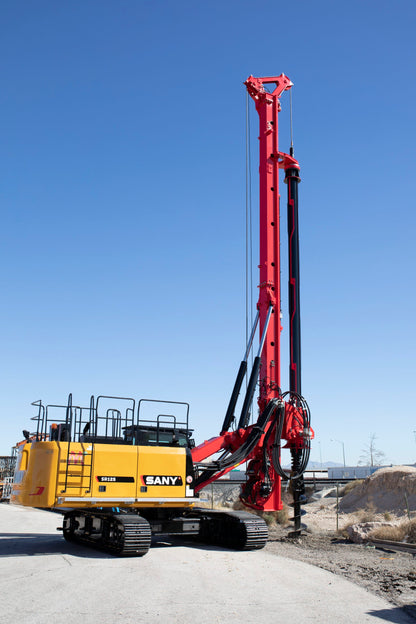

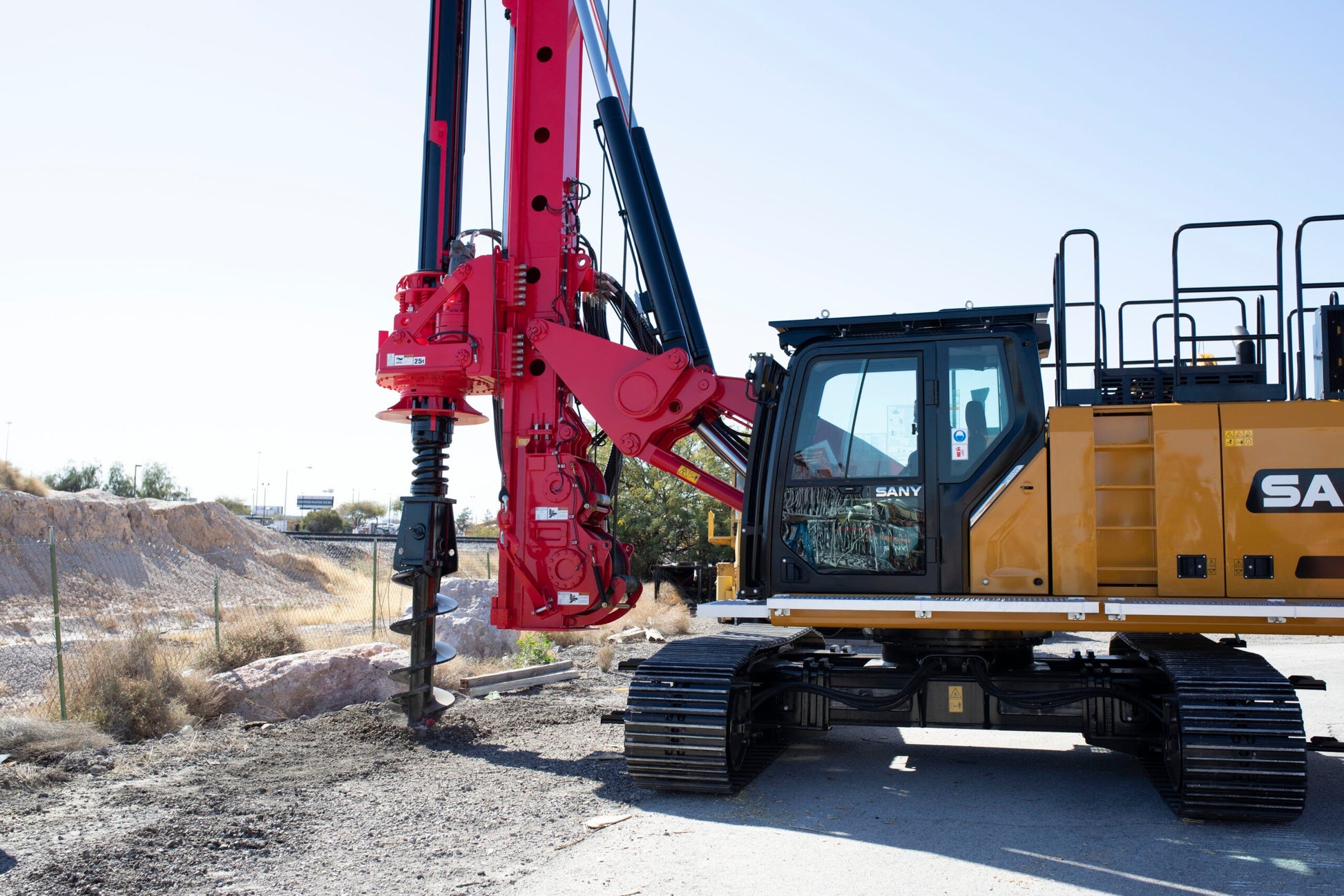

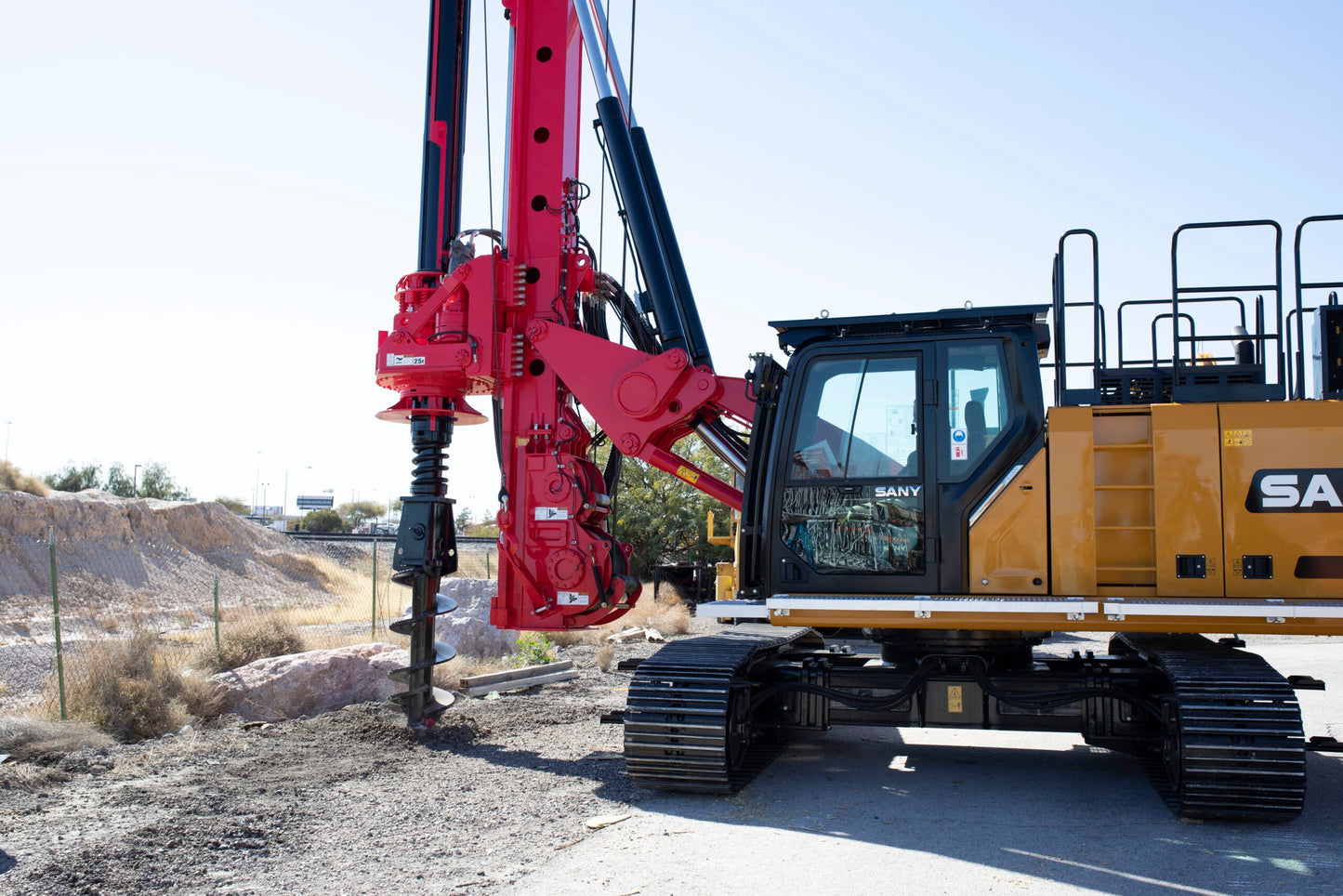

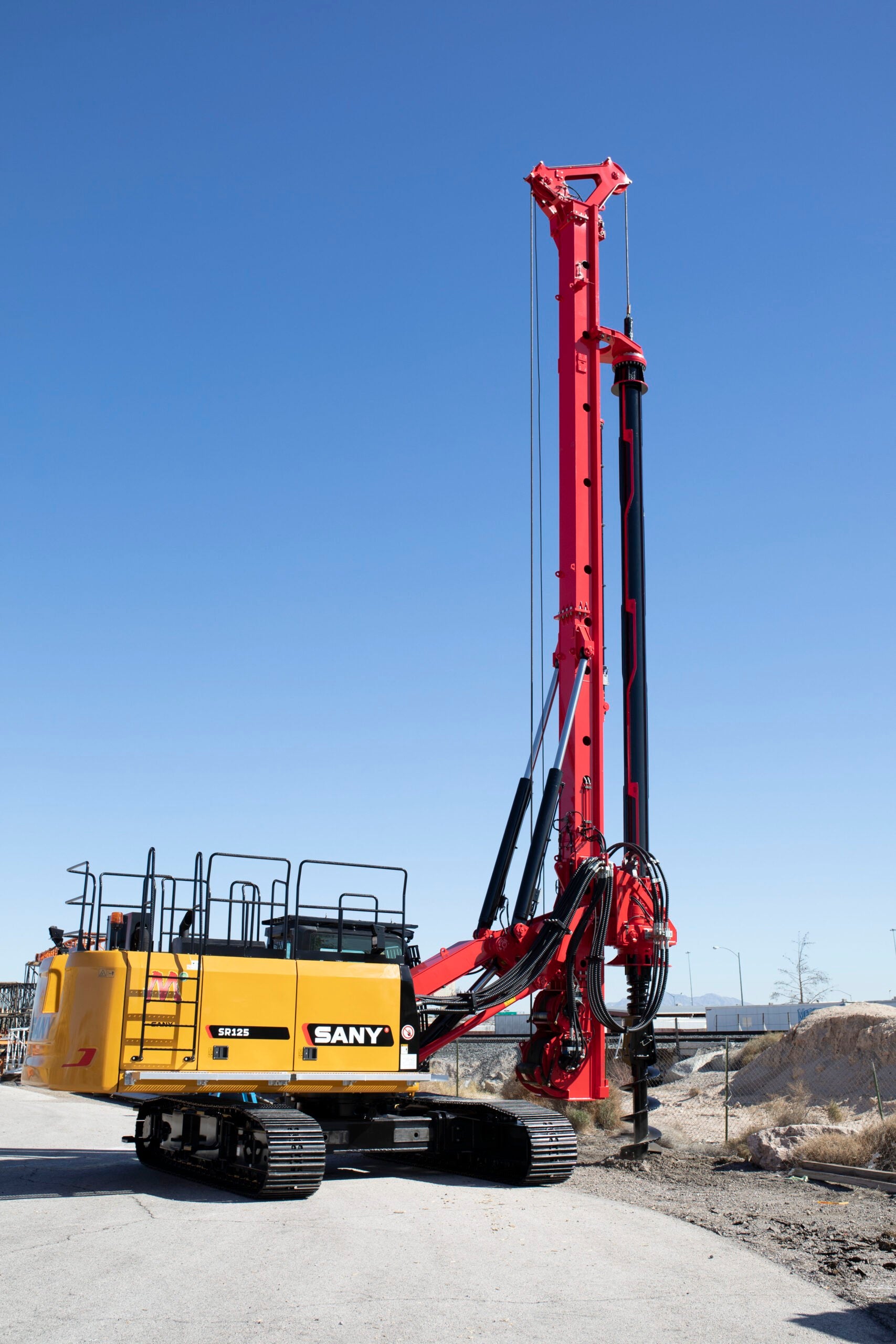

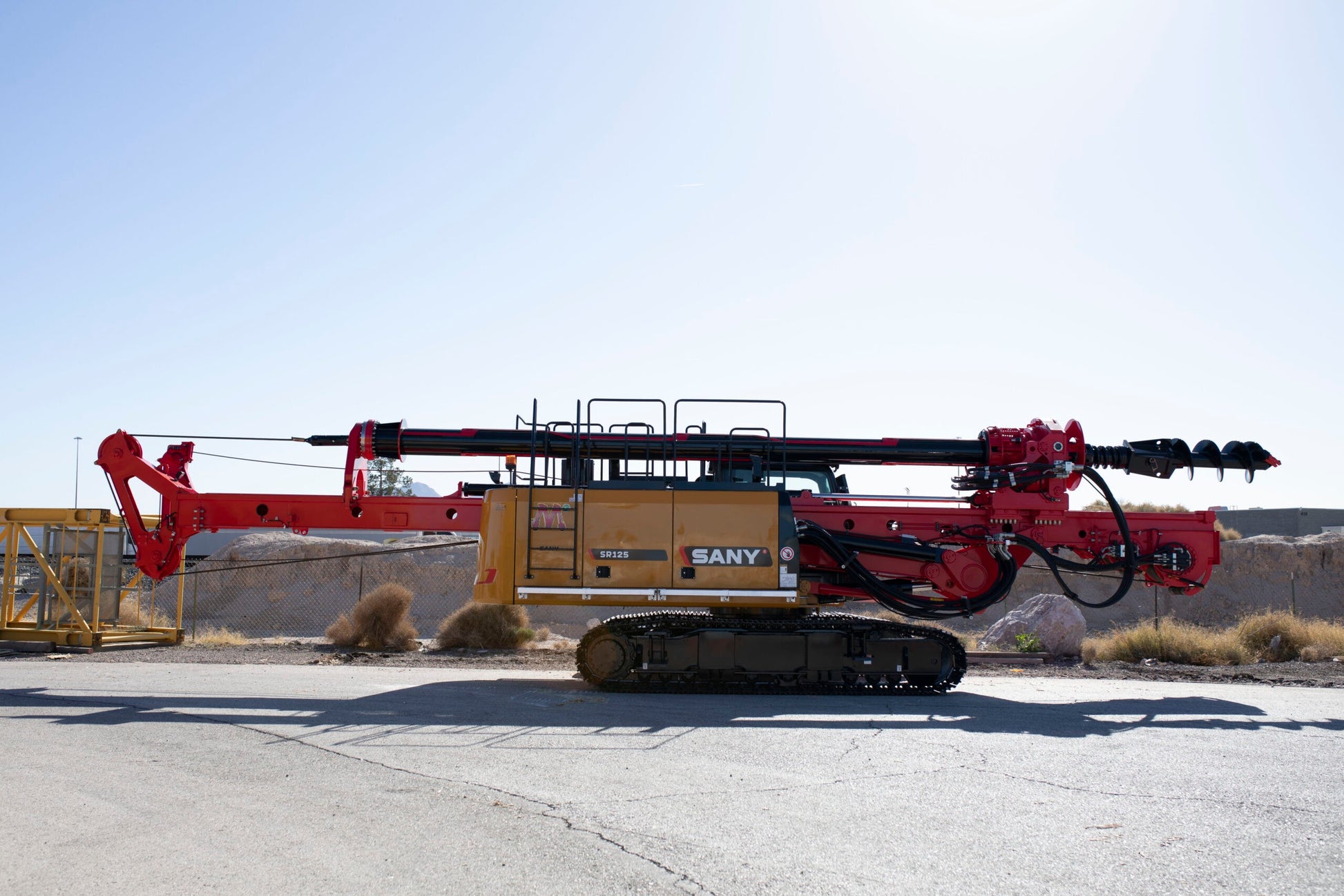

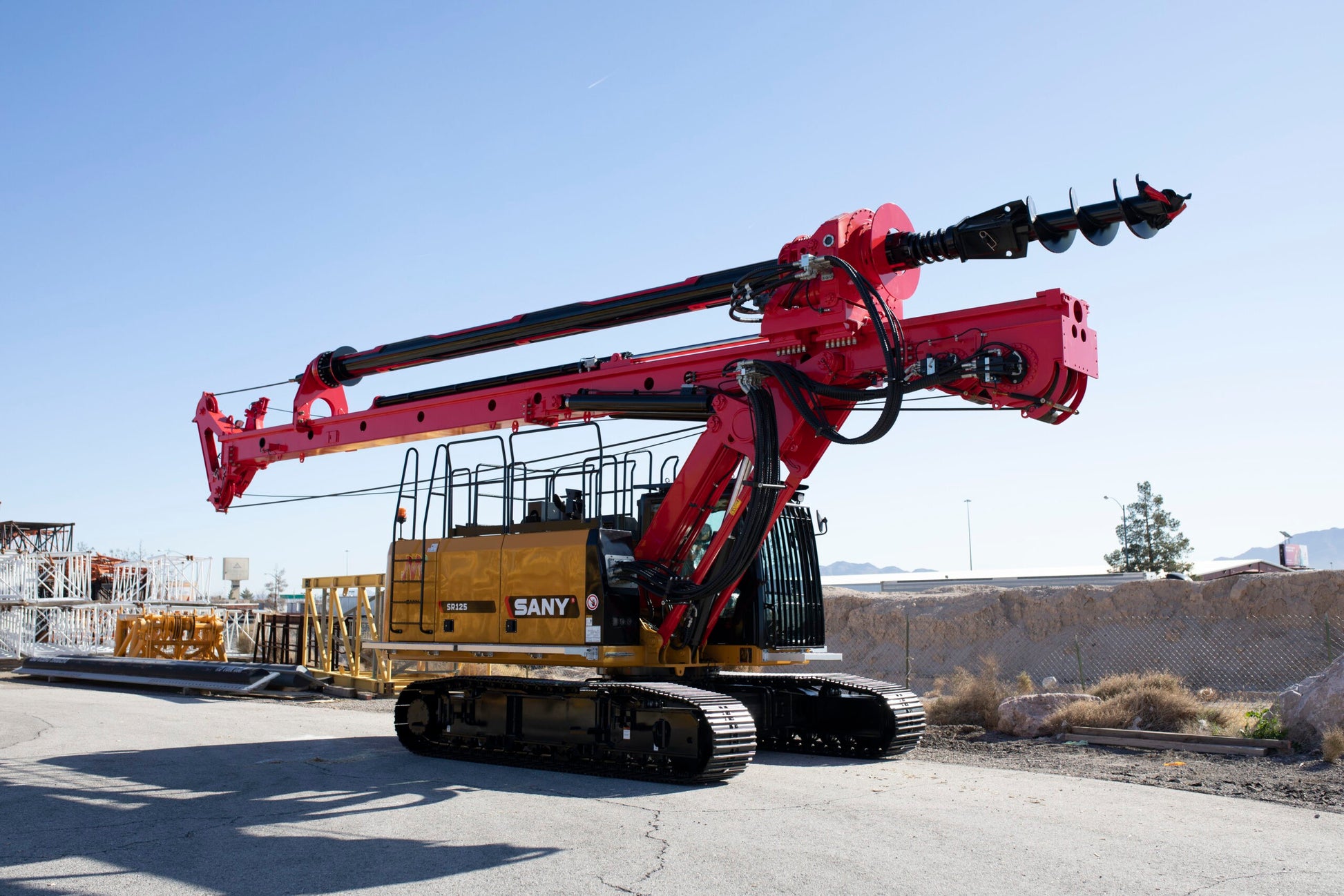

SR125MV Drill Rig

SR125MV Drill Rig

SANY

Please contact us for current pricing and availability

View full details

Overall Dimensions

Transport Length
43' 10" (13,360 mm)
Transport Width
8' 5" (2,560 mm)
Transport Height
11' 4" (3,450 mm)
Overall Height
50' 4" (15,340 mm)

Technical Specifications

Operating Weight
85,098 lbs (38,600 kg)
Engine Power
200 hp
Rated Output Torque
95,883 lbf-ft
Maximum Drilling Diameter
4' 11"
Maximum Drilling Depth
134' 6"

Working Performance

Rotation Speed
6–40 rpm
Crowd Force
26,977 lbf
Line Pull
33,721 lbf
Main Winch Capacity
31,473 lbf
Stroke
12' 1"

Rental

Daily: ---

Weekly: ---

Monthly: ---

Request a Quote

Requesting a quote for: SR125MV Drill Rig
