SRA1200A All Terrain Crane
SRA1200A All Terrain Crane
Regular price
$99,999,999.00
Sale price
$99,999,999.00
Unit price
/
per
In Stock
-
Call us at (516) 493-9951
Mon - Fri|8AM - 5PM EST -
info@cheryequipment.com
Customer Service Contact Email

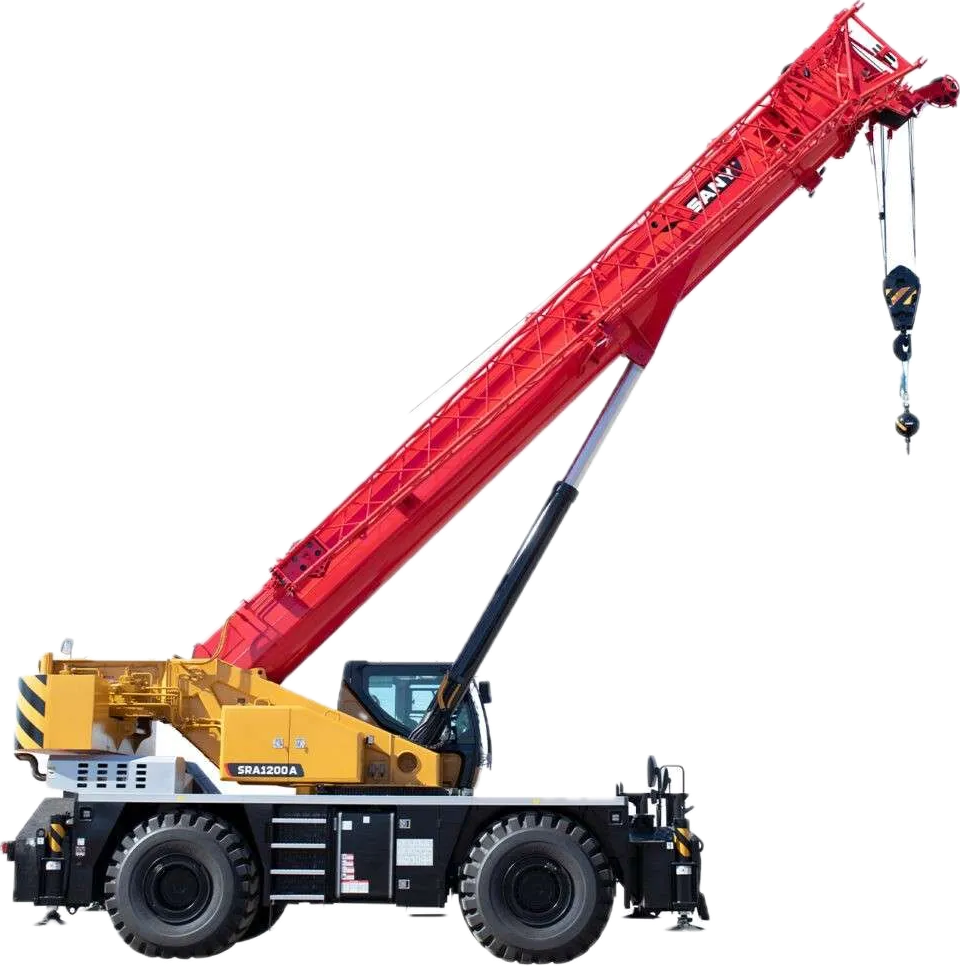

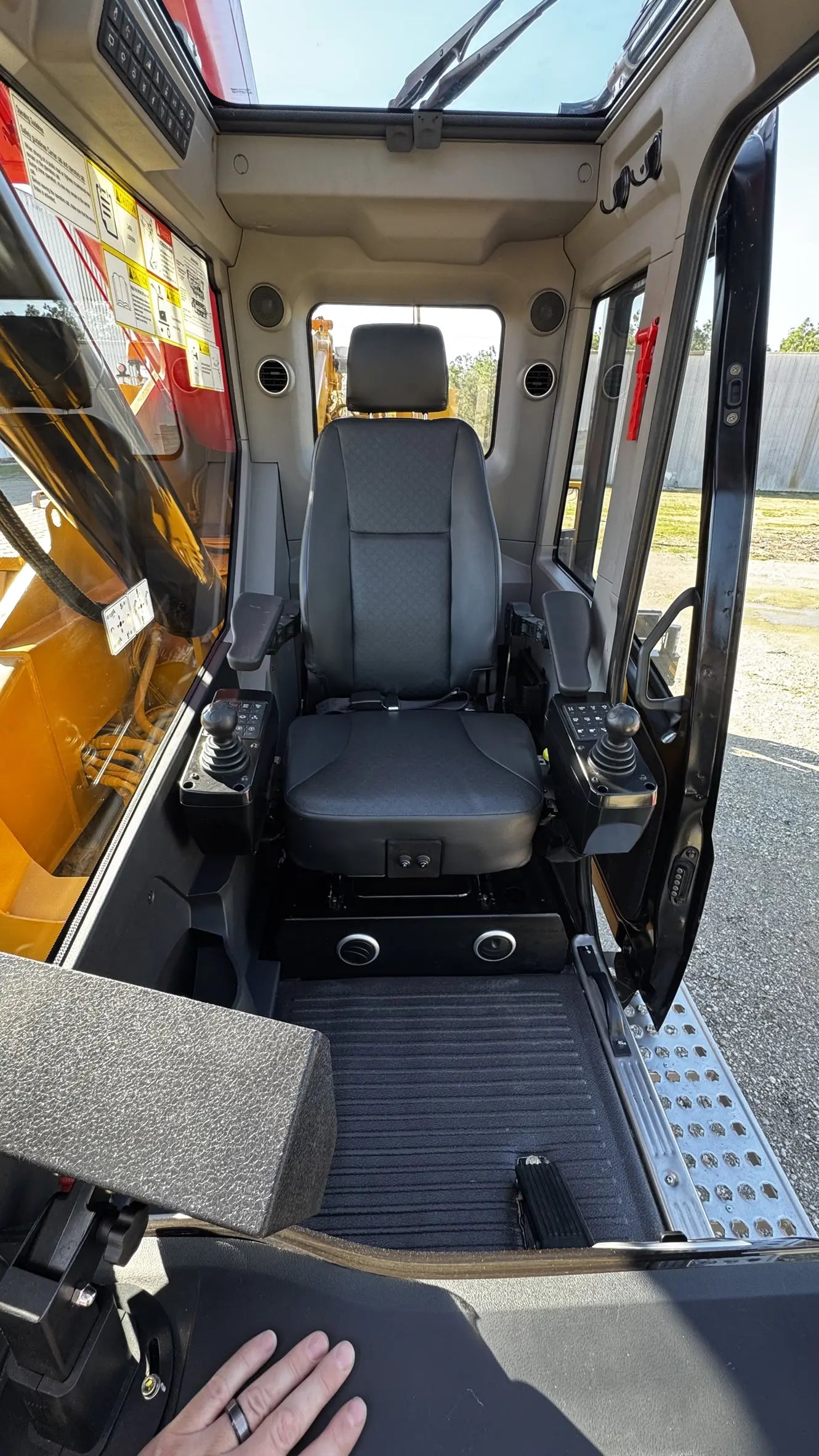

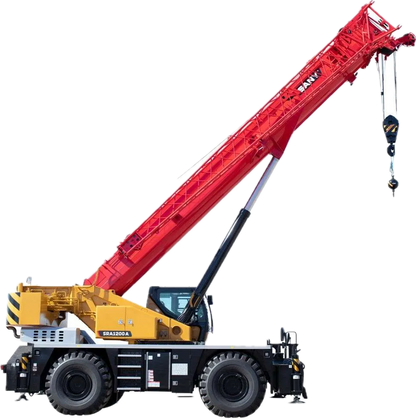

The SANY SRA1200A Rough Terrain Crane delivers exceptional lifting performance with a 120 USt maximum lifting capacity, 183.7 ft six-section boom, and 250 ft maximum tip height. Designed for demanding lifting applications, it combines powerful lifting capabilities with smooth, precise control, advanced load management technology, and a spacious 20-degree tilting operator cab. Featuring a proven Cummins engine, hydraulically assisted counterweight system, full camera package, LED lighting, and industry-leading safety features, the SRA1200A provides outstanding productivity, reliability, and operator comfort on the most challenging jobsites.
Overall Dimensions
Overall Length
48.71 ft (14,850 mm)
Overall Width
10.96 ft (3,340 mm)
Overall Height
12.56 ft (3,830 mm)
Outrigger Span
24.7 ft × 24.9 ft (7.52 m × 7.6 m)
Technical Specifications
Maximum Lifting Capacity
120 USt (110 Mt)
Gross Weight
129,400 lbs (58,700 kg)
Engine Power
280 hp (209 kW)
Maximum Torque
950 lb-ft (1,288 N·m)
Maximum Travel Speed
15 mph (24 km/h)
Working Performance
Maximum Lifting Moment
2,054,673 lb-ft (2,784 kN·m)
Maximum Boom Length
183.7 ft (56 m)
Maximum Boom + Jib Length
242.8 ft (74 m)
Maximum Tip Height
250 ft (76.2 m)
Minimum Rated Lifting Radius
8 ft (2.44 m)
Rental
Daily: ---
Weekly: ---
Monthly: ---
