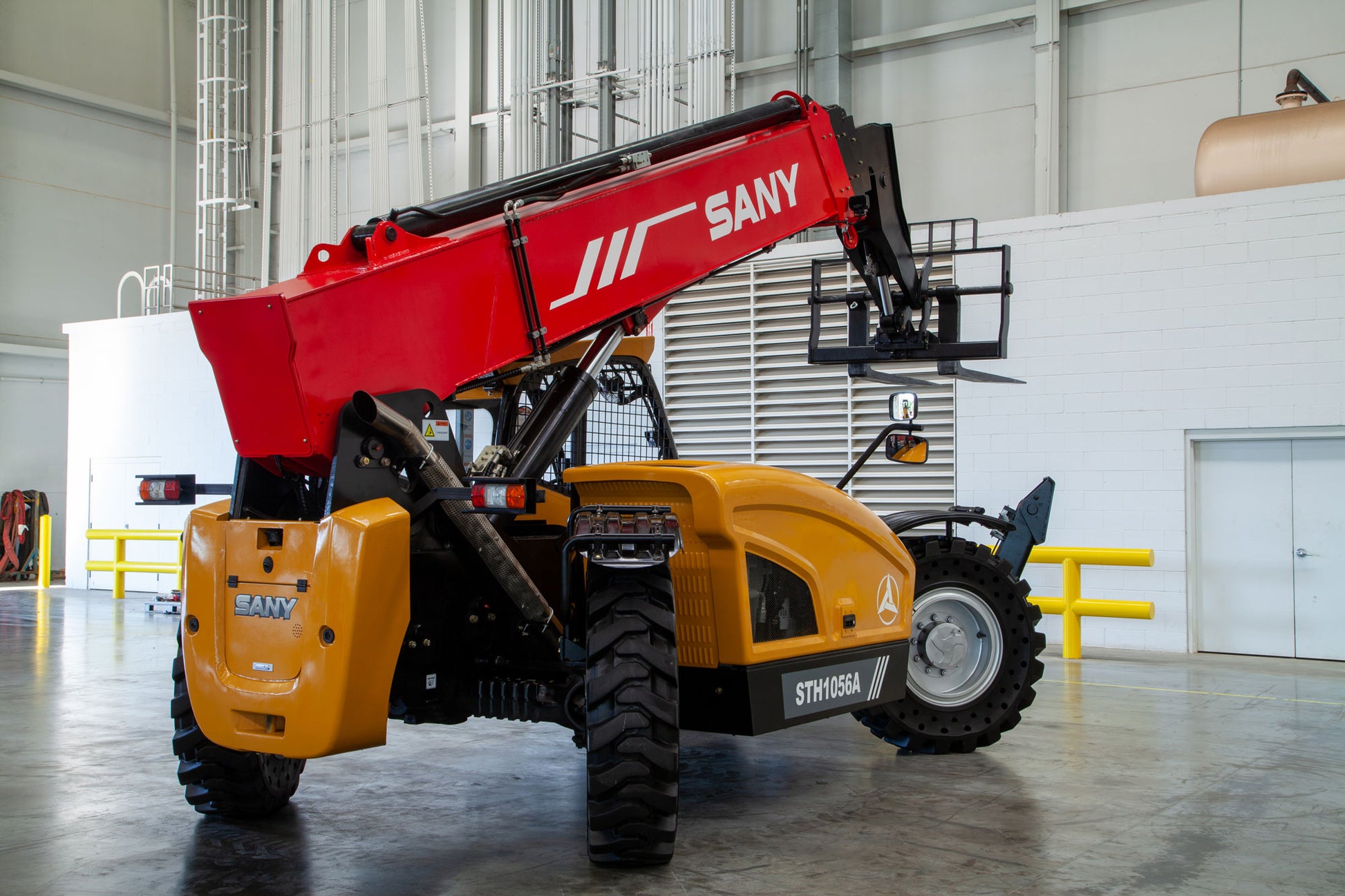

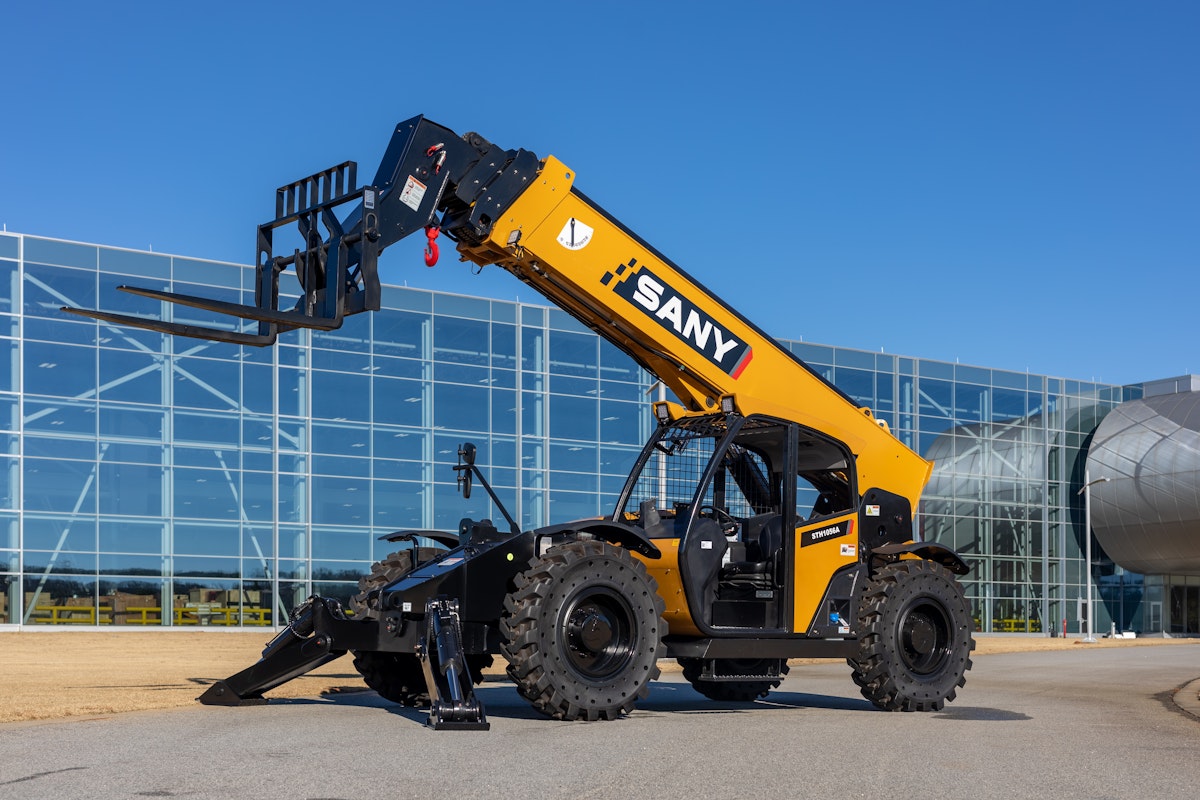

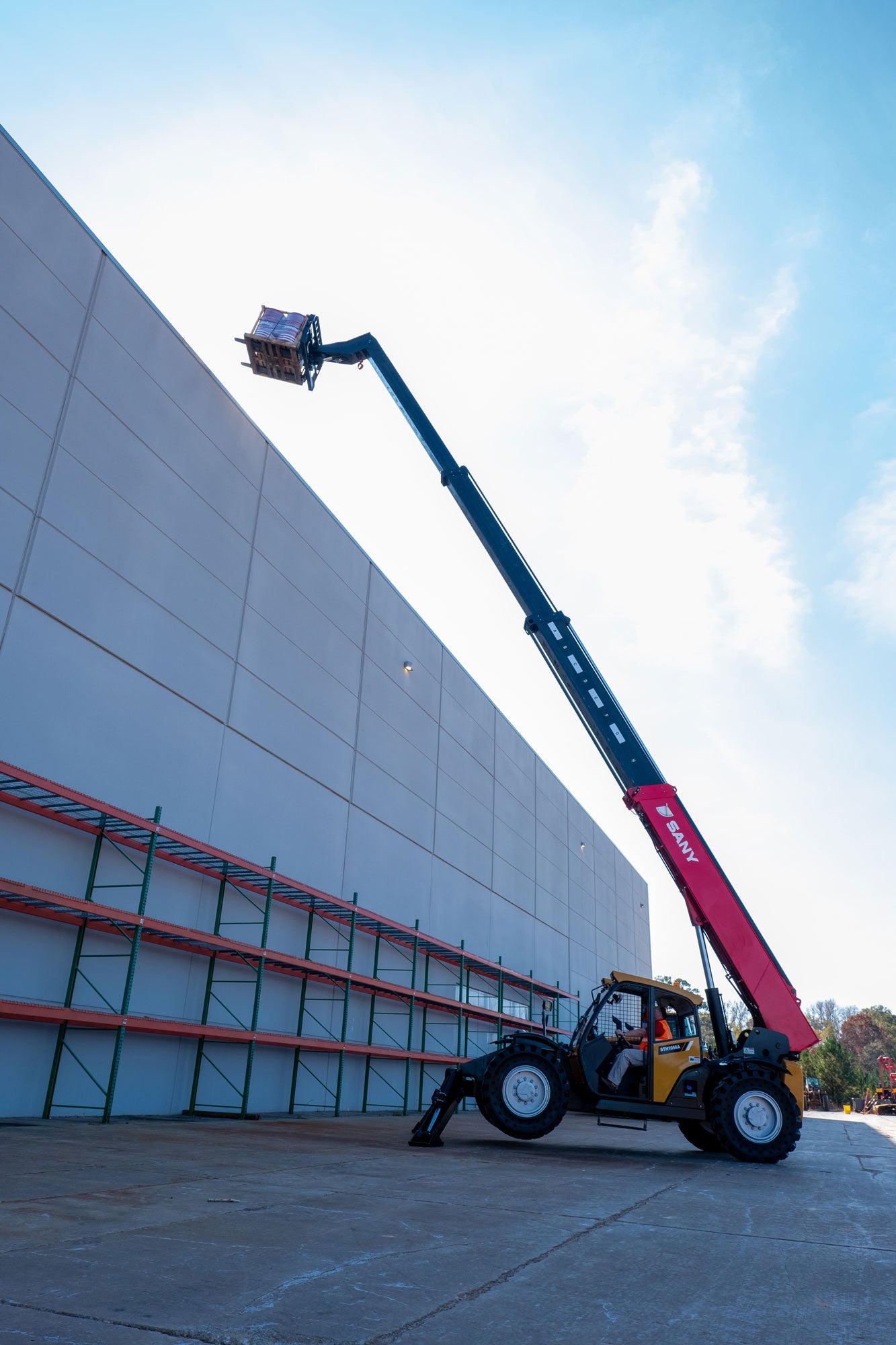

Telehandlers - STH1056A

Telehandlers - STH1056A

Regular price $210,665.00
Sale price $210,665.00
Reference Price Only. Please Contact for Quote: Buy

In Stock

View full details

The SANY 10K Series Telehandler is a powerful and versatile material handling solution designed for construction, industrial, and agricultural applications. With a rated capacity of 10,000 lb and a maximum lift height of 56.1 ft, it delivers outstanding lifting performance, excellent stability, and reliable operation. Equipped with a durable drivetrain, spacious operator cab, and a wide range of attachment options, it is built to maximize productivity in demanding jobsite conditions.

Overall Dimensions

Overall Length
20.8 ft (6.34 m)
Overall Width
8.4 ft (2.56 m)
Overall Height
8.5 ft (2.59 m)
Wheelbase
11.5 ft (3.49 m)
Minimum Turning Radius
14.1 ft (4.30 m)

Technical Specifications

Rated Capacity
10,000 lb (4.54 t)
Maximum Lift Height
56.1 ft (17.1 m)
Engine
Cummins QSF3.8 Tier 4 Final Diesel
Transmission
Dana T12000 / Dana 1120
Drive Axle
Dana 212HY / 223
Fork Options
48", 60", 72"
Optional Attachments
Rotating Carriage, Side Shift, Pipe Clamp, Hook, Bucket, Marble Handler, Man Platform

Working Range

Rated Capacity
10,000 lb (4.54 t)
Maximum Lift Height
56.1 ft (17.1 m)

Rental

Daily: $705

Weekly: $1,629

Monthly: $4,480
